Antilock Brakes / Traction Control Systems
>>
Part 1 of 2
Part 1 of 2

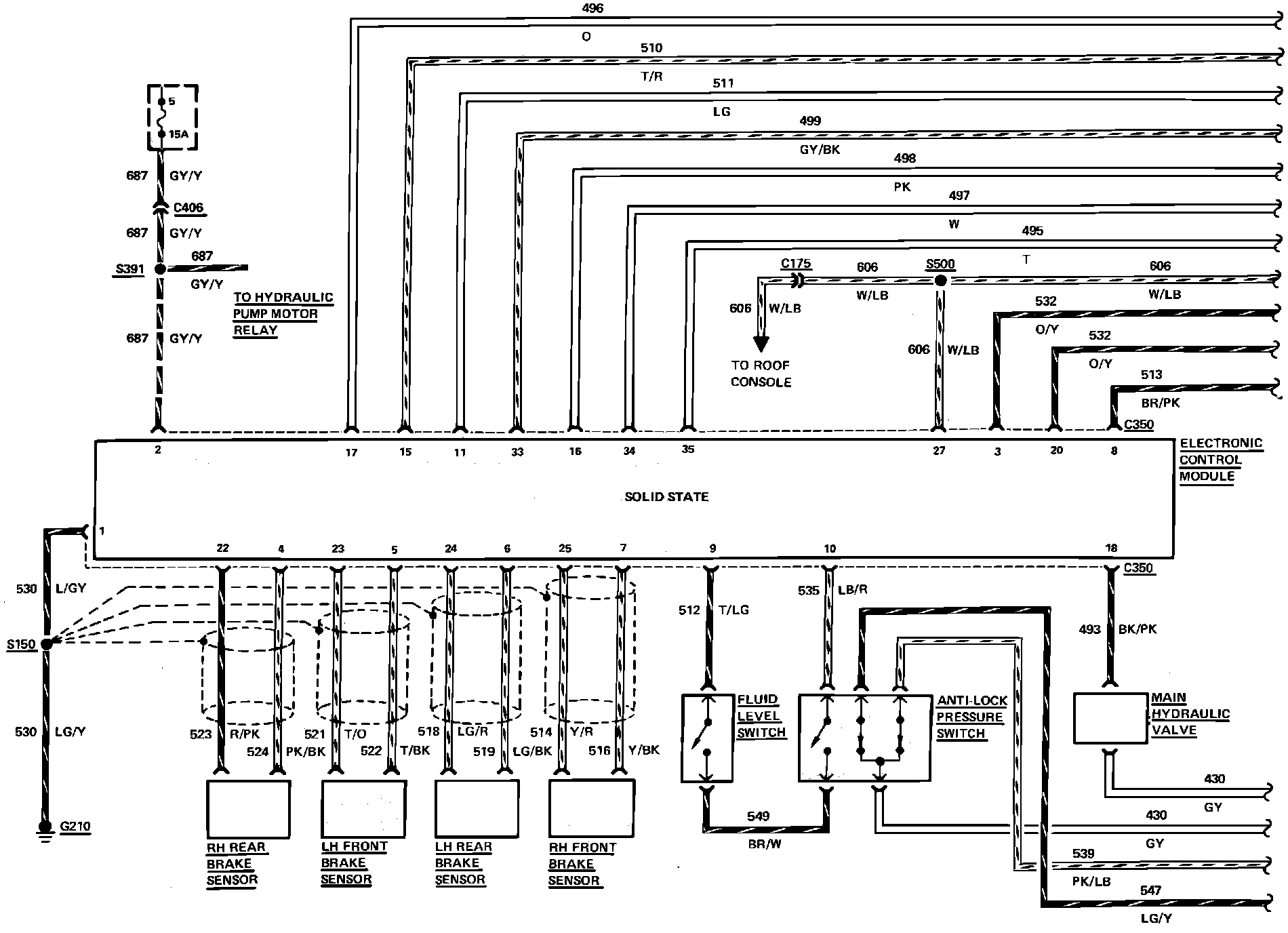

Anti-Lock Brake System Wiring Circuit:
