A Warning Indicator ON/Brake Warning OFF)
>>
A5 Isolation Test FLI and PWS
A5 Isolation Test FLI and PWS

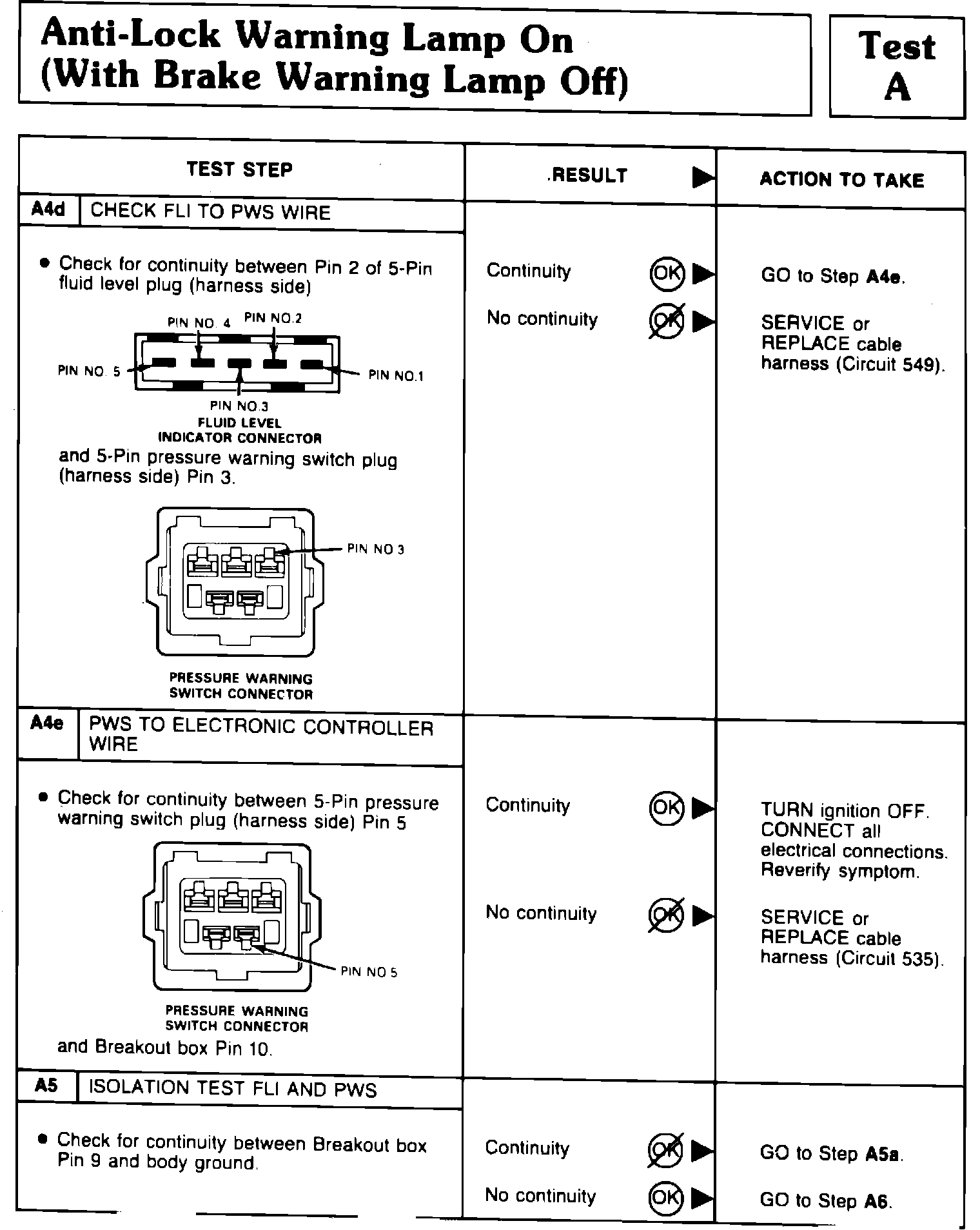

Fig. 36 Anti-skid diagnosis, anti-lock warning lamp ON W/brake warning lamp OFF (Part 6 of 24). 1986---87 exc. Thunderbird:
