Home
>>
Lincoln
>>
1986
>>
Mark VII V8-302 5.0L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
A Warning Indicator ON/Brake Warning OFF)
>>
A1 35 Pin Plug Testing
A1 35 Pin Plug Testing

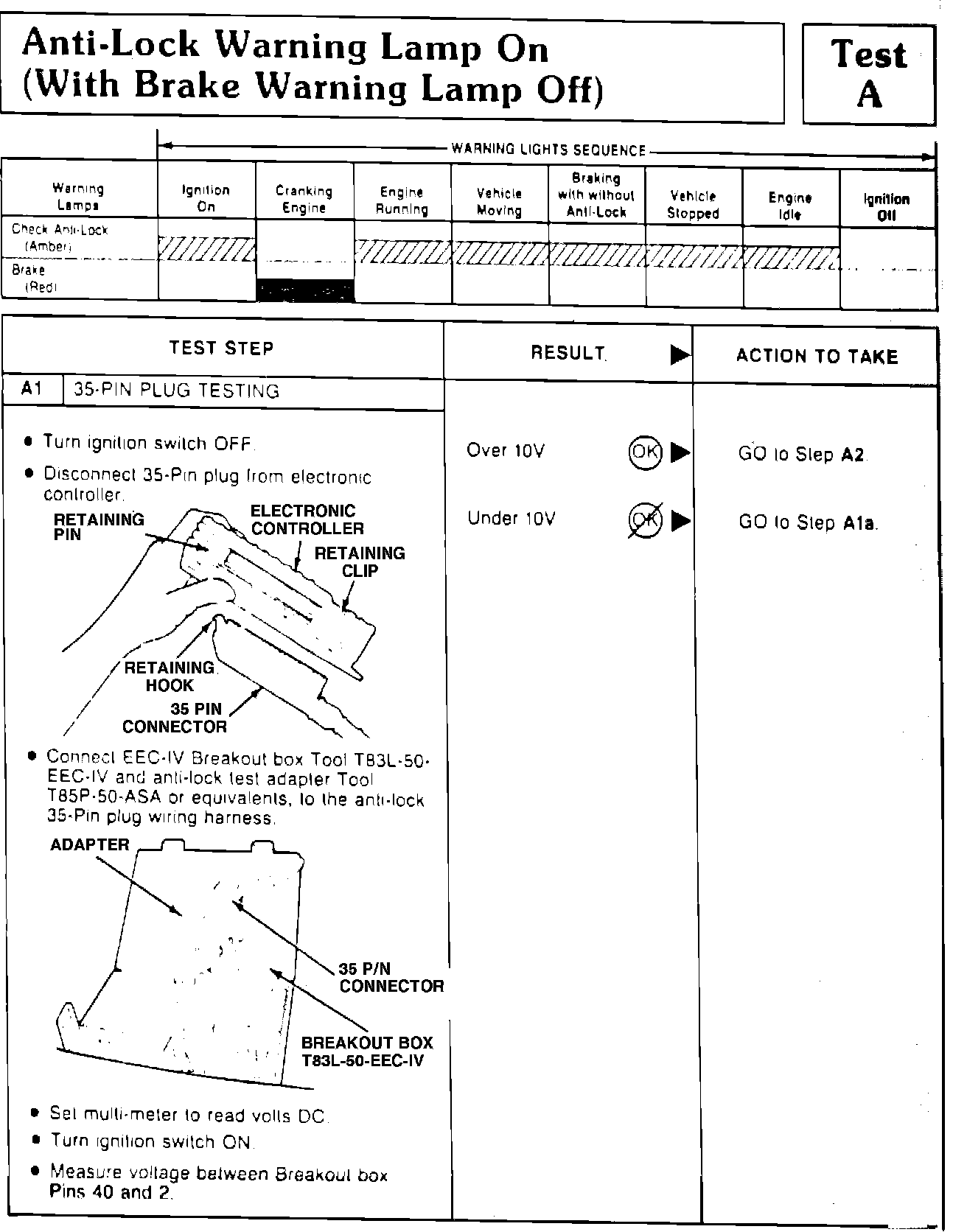

Fig. 36 Anti-skid diagnosis, anti-lock warning lamp ON W/brake warning lamp OFF (Part 1 of 24). 1986---87 exc. Thunderbird:
