Hydraulic Assembly

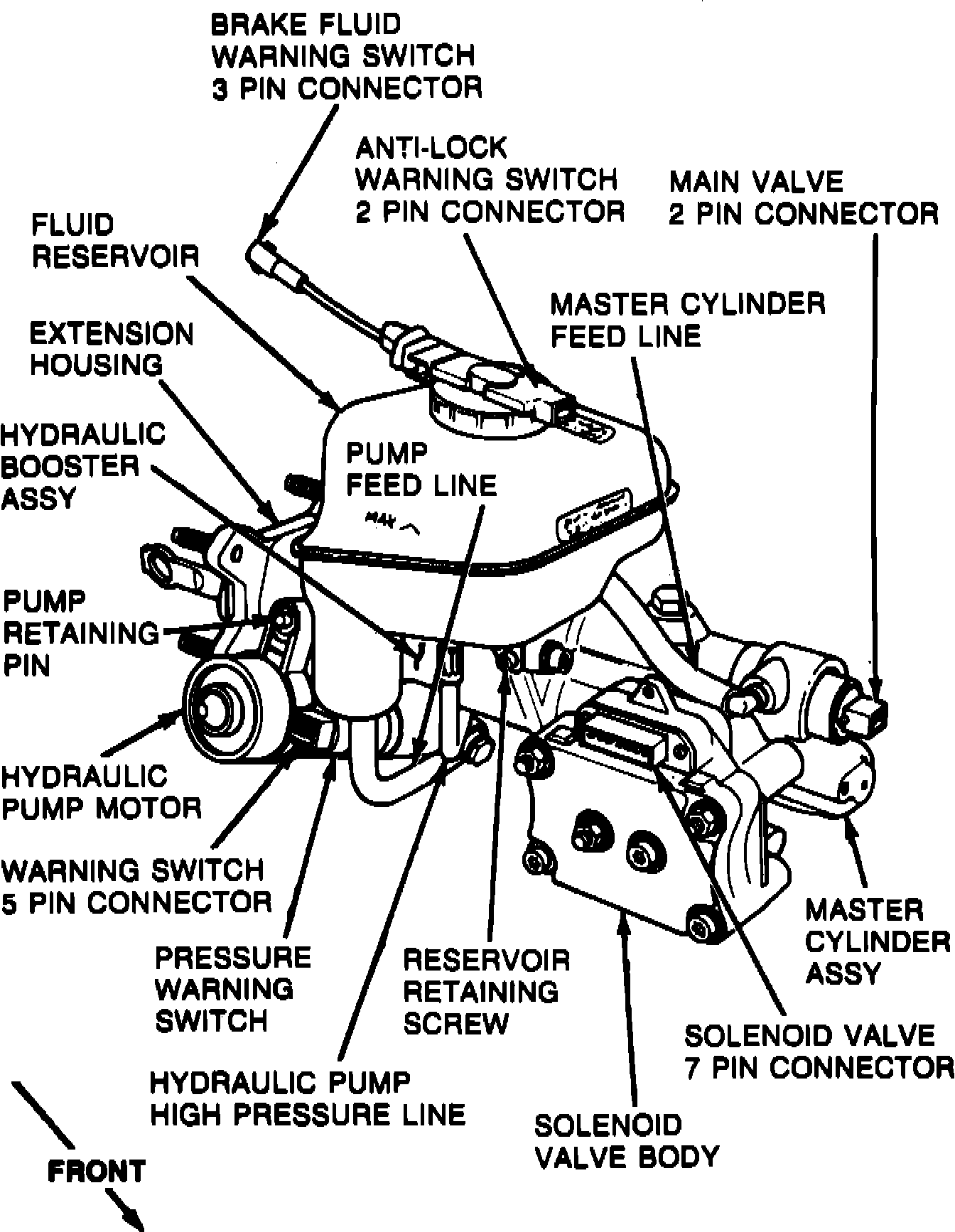

Fig. 2 Master cylinder & hydraulic booster assembly:

The master cylinder and brake booster are arranged with the booster behind the master cylinder, Fig. 2. The booster control valve is installed in a bore above the master cylinder centerline and is operated by a lever connected to the brake pedal pushrod.
