A/T - AOD Shifter Housing Modification

Article No. 85-24-8


TRANSMISSION - AUTOMATIC - AOD - SHIFTER HOUSING MODIFICATION TO ACCEPT OPTIONAL SHIFT CABLE

LINCOLN-MERCURY 1984-85 MARK VII

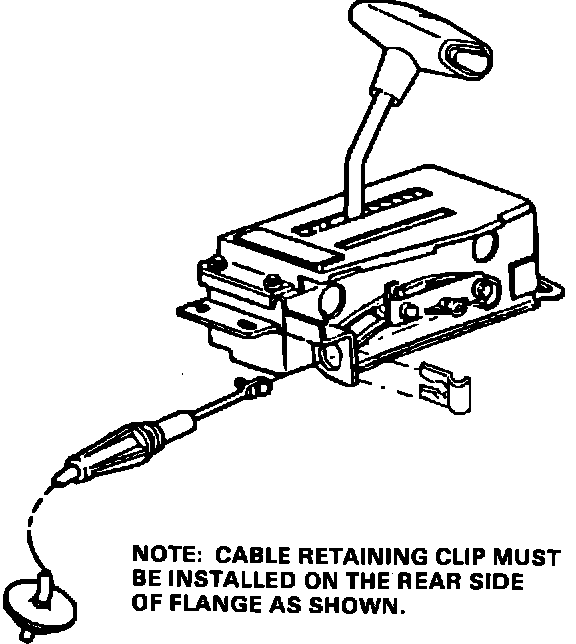

Figure 15 - PRIOR SHIFTER HOUSING JAN. 1, 1984 THROUGH JULY, 1985:

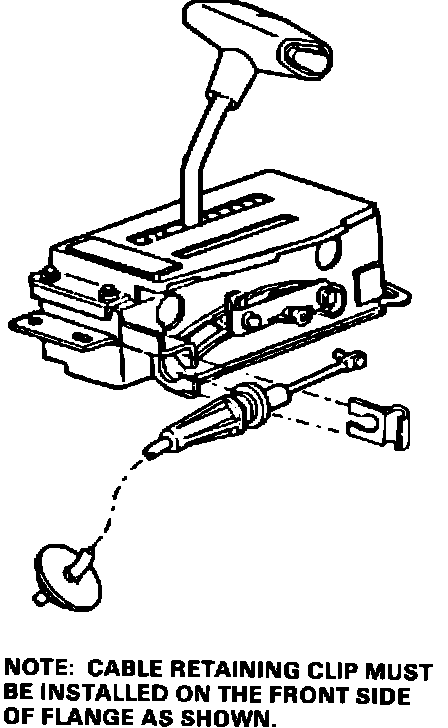

Figure 16 - MODIFIED SHIFTER HOUSING CURRENT DESIGN:

Two different shift cables are provided for service under the same service part number for the vehicles listed above. The only functional difference between the two is the way they have to be installed to the shifter housing. One of the cables requires a slot in the cable to shifter housing retaining bracket hole. The current design cable attachment is shown in Figure 15 and the optional design cable attachment is shown in Figure 16.

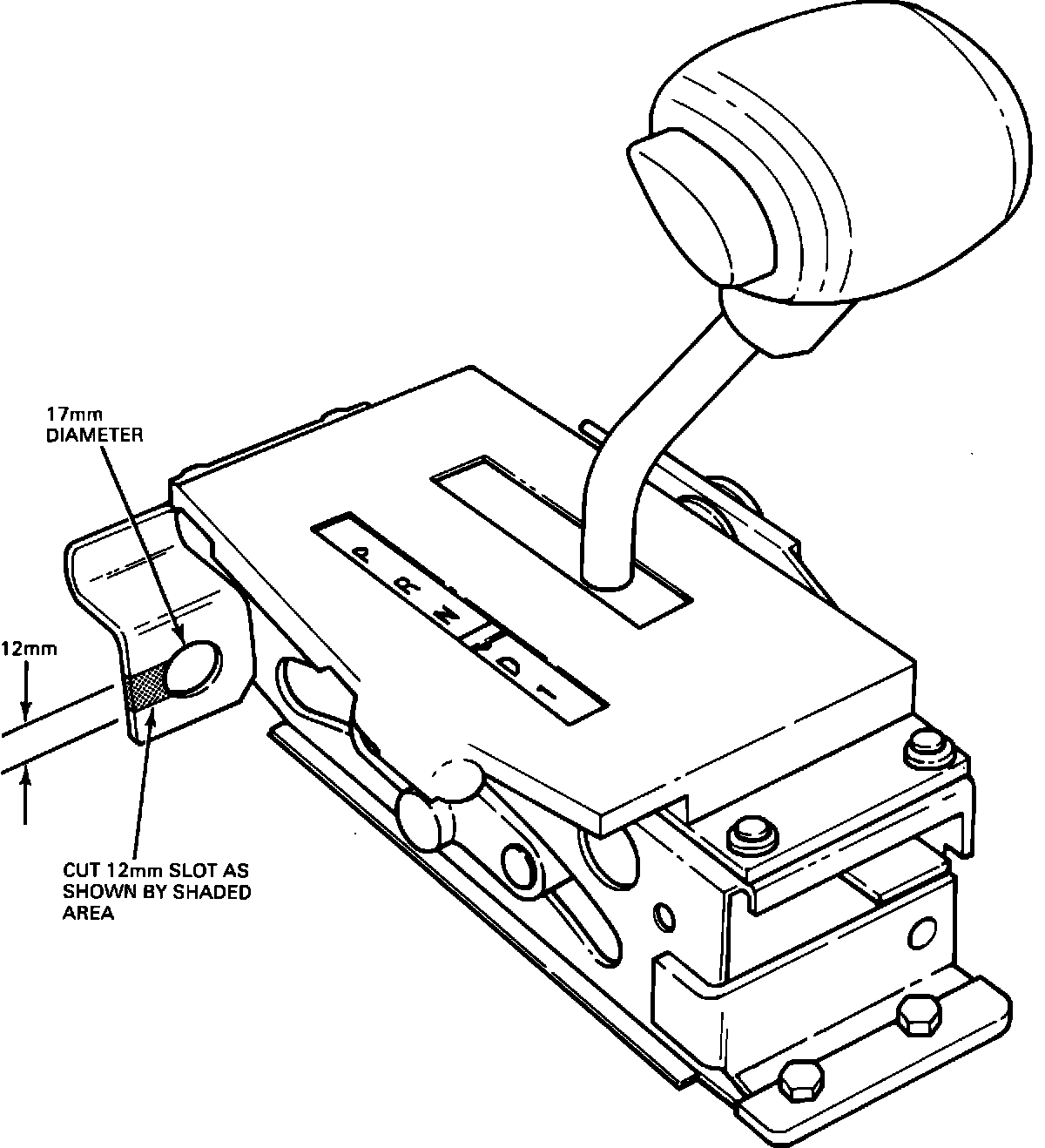

Figure 17 - Cable Mounting Flange:

1984 and some 1985 Mark VII vehicles do not have the slot in the cable mounting bracket. Prior model vehicle shifter assemblies can be modified to accept the optional cable design by cutting a 12 mm slot into the cable mounting flange as shown in Figure 17.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: Reimbursable within the provisions of the Warranty and Policy Manual.
OPERATION: SP7395A85
TIME: 0.3 Hr. DLR. CODING: Basic Part No. 7E395 - Code: 17
