Lincoln
>>
1984
>>
Mark VII L6-146 2.4L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
Radio/Stereo

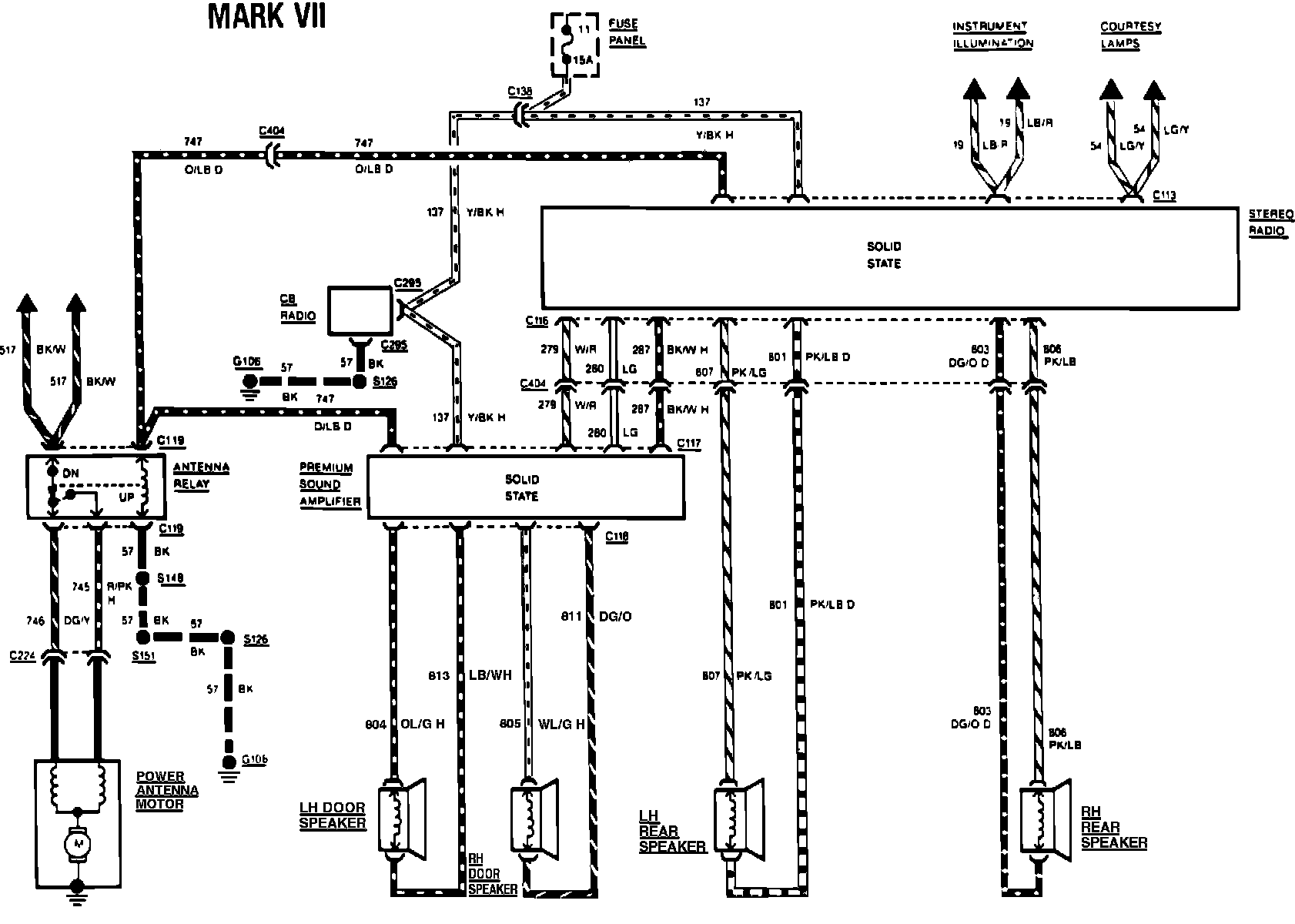

Fig. 163 Radio & speaker wiring circuit. 1984 Mark VII:
