Home
>>
Lincoln
>>
1984
>>
Continental L6-146 2.4L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Window Switch
Power Window Switch

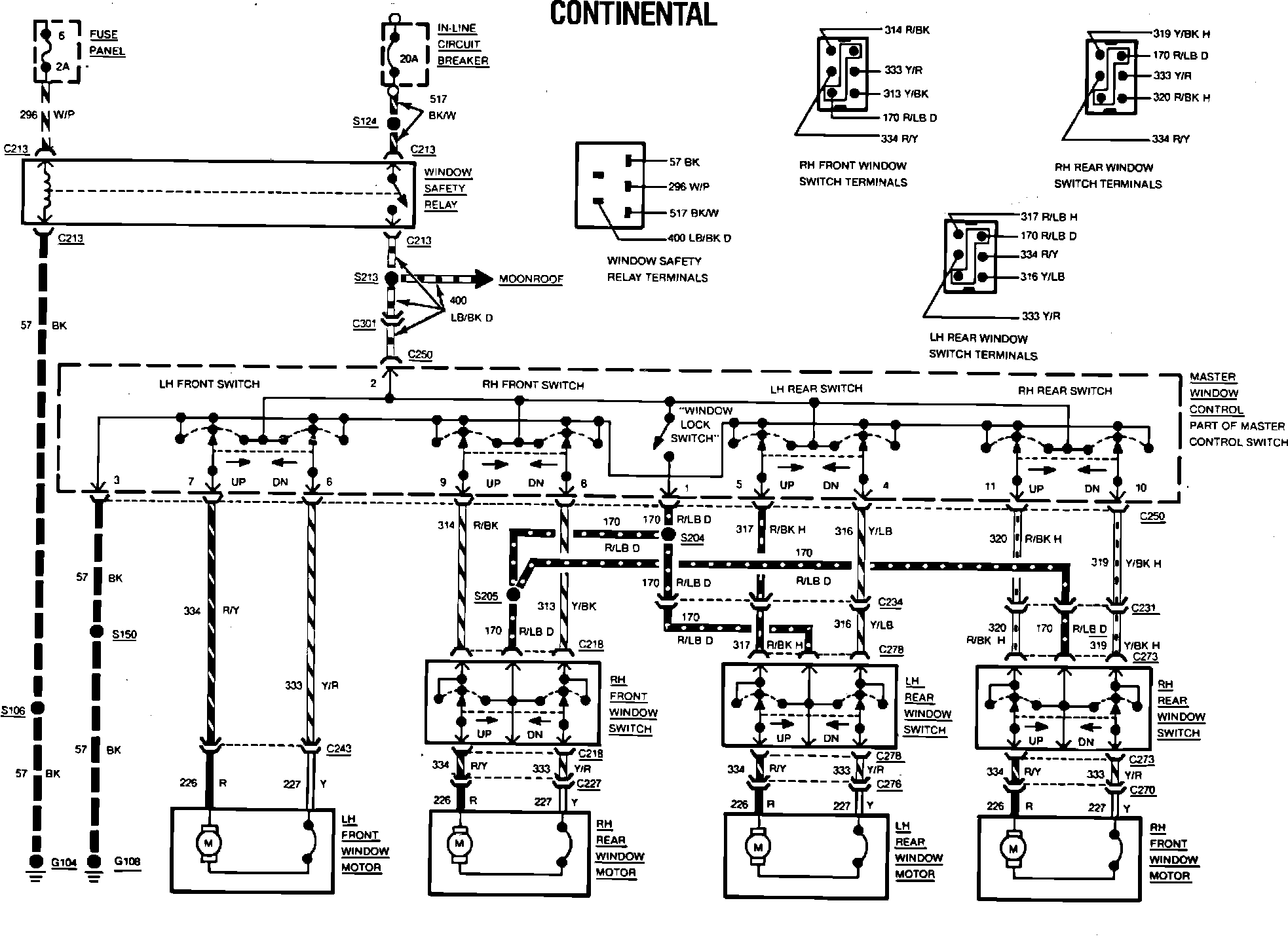

Fig. 158 Power window wiring circuit. 1984 Continental:
