Lincoln
>>
1984
>>
Continental L6-146 2.4L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
System Diagram
>>
Without Keyless Entry
Without Keyless Entry

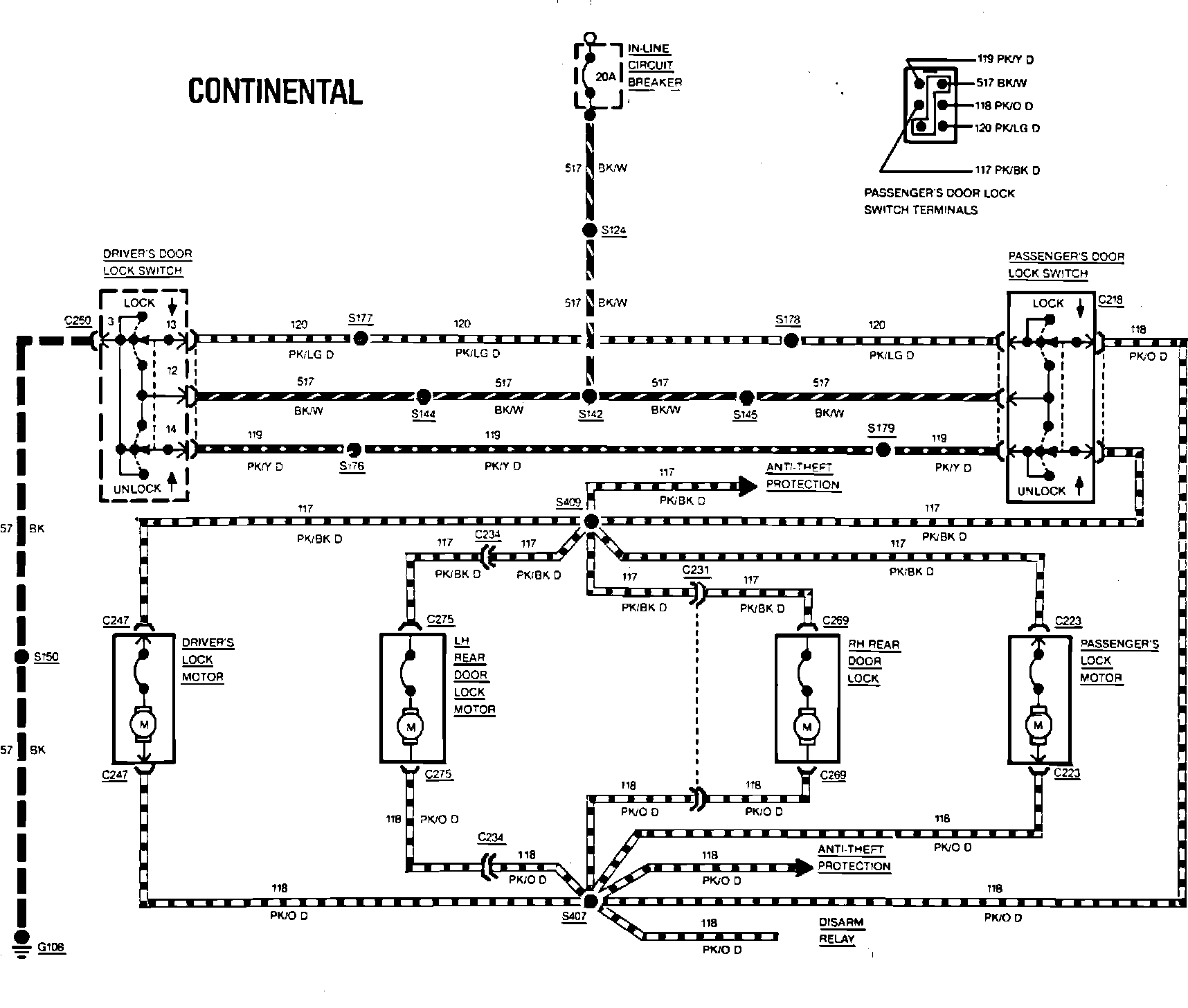

Fig. 141 Power door lock wiring circuit. 1984 Continental less keyless entry:
