System Specifications

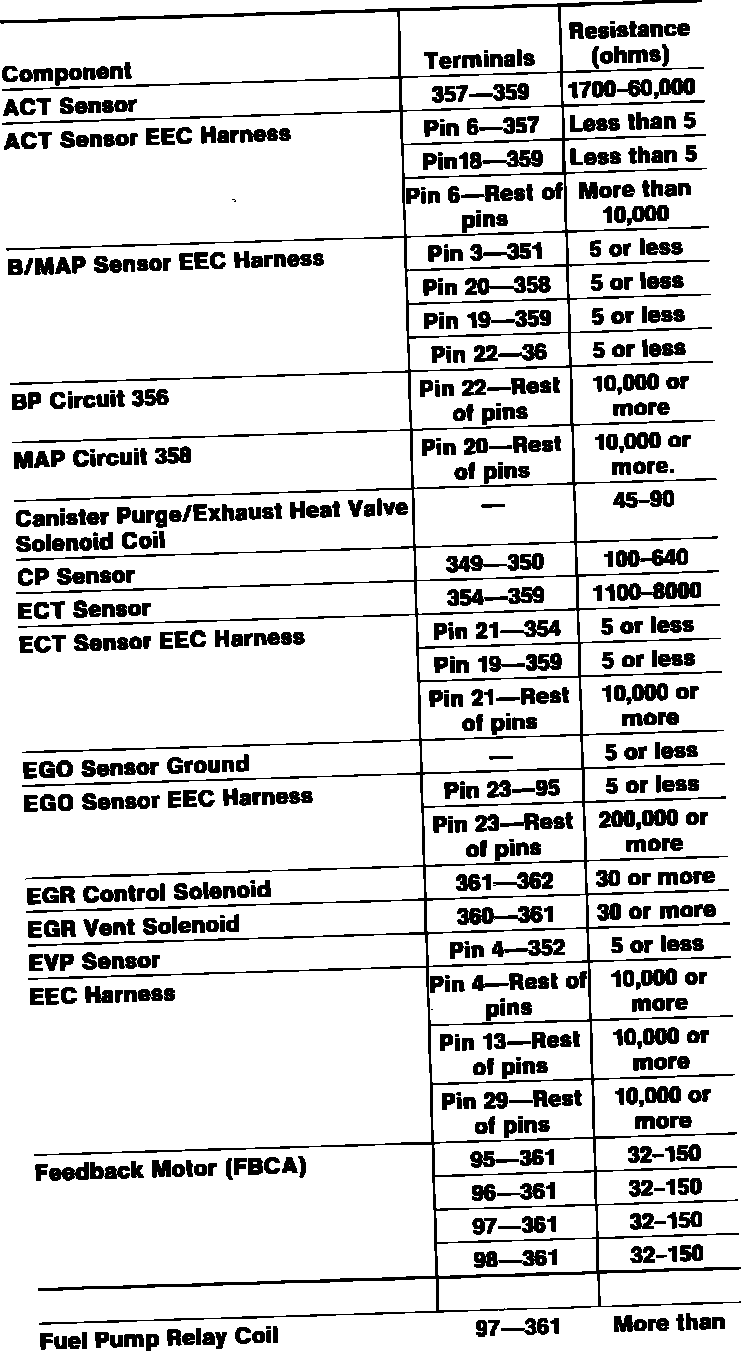

Fig. 25a EEC-III component, terminal & resistance specification chart:

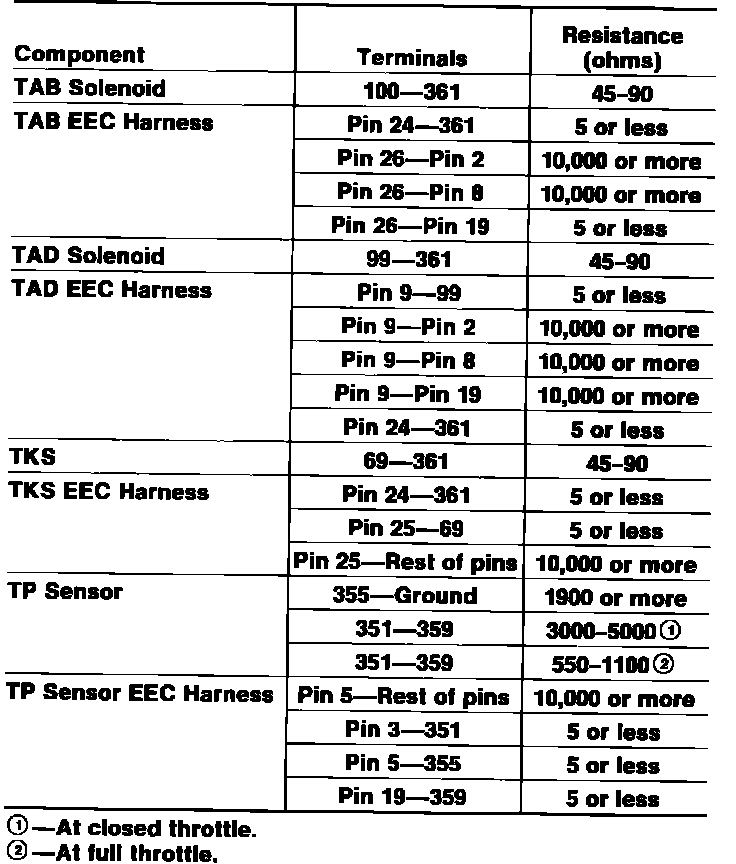

Fig. 25b EEC-III component, terminal & resistance specification chart:
