Lincoln
>>
1983
>>
Mark VI V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>

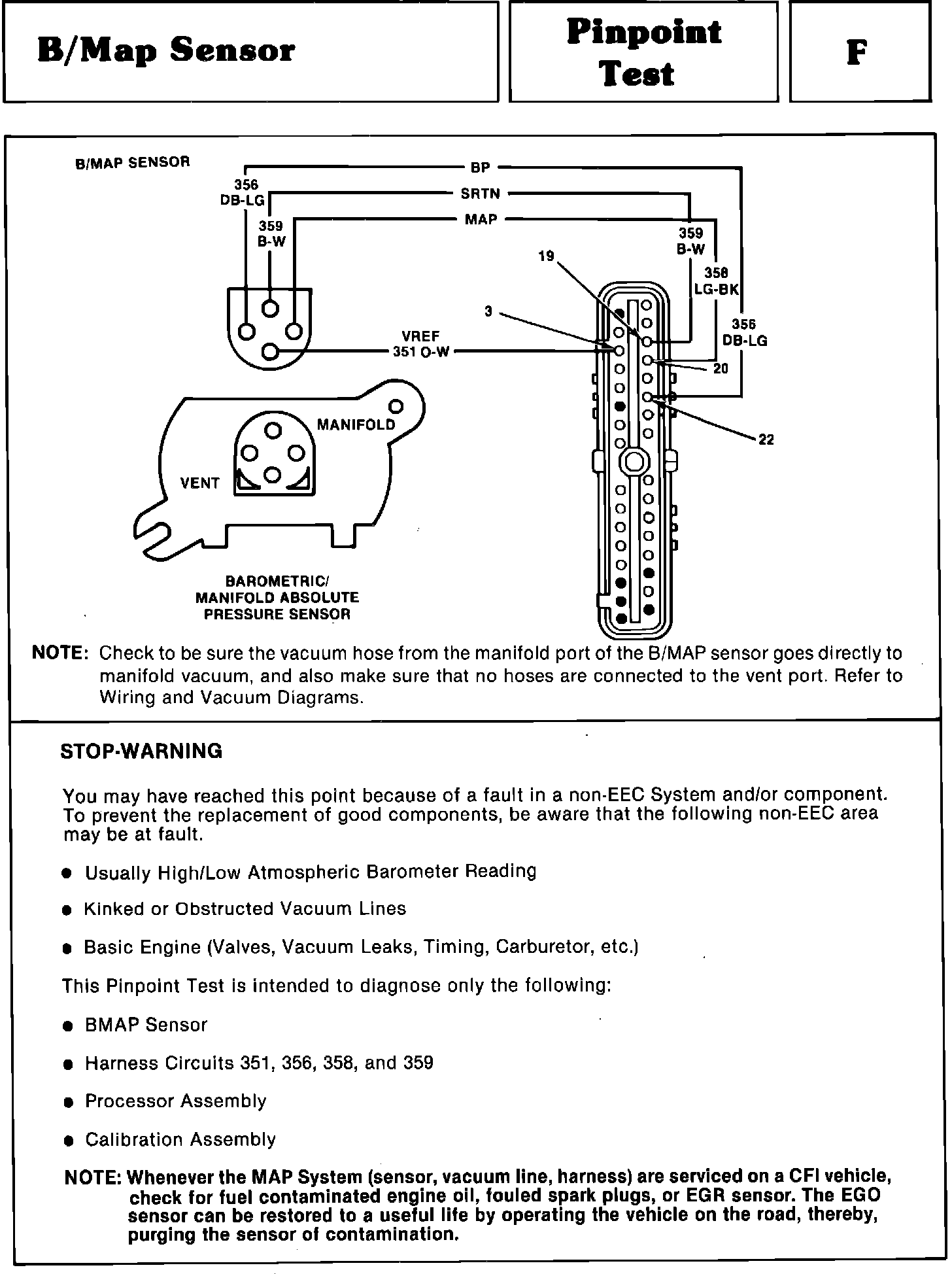

F - B/MAP Sensor
>>
F - Wiring Diagram
F - Wiring Diagram
