With Automatic Lamps & Delayed Exit System Wiring Circuit

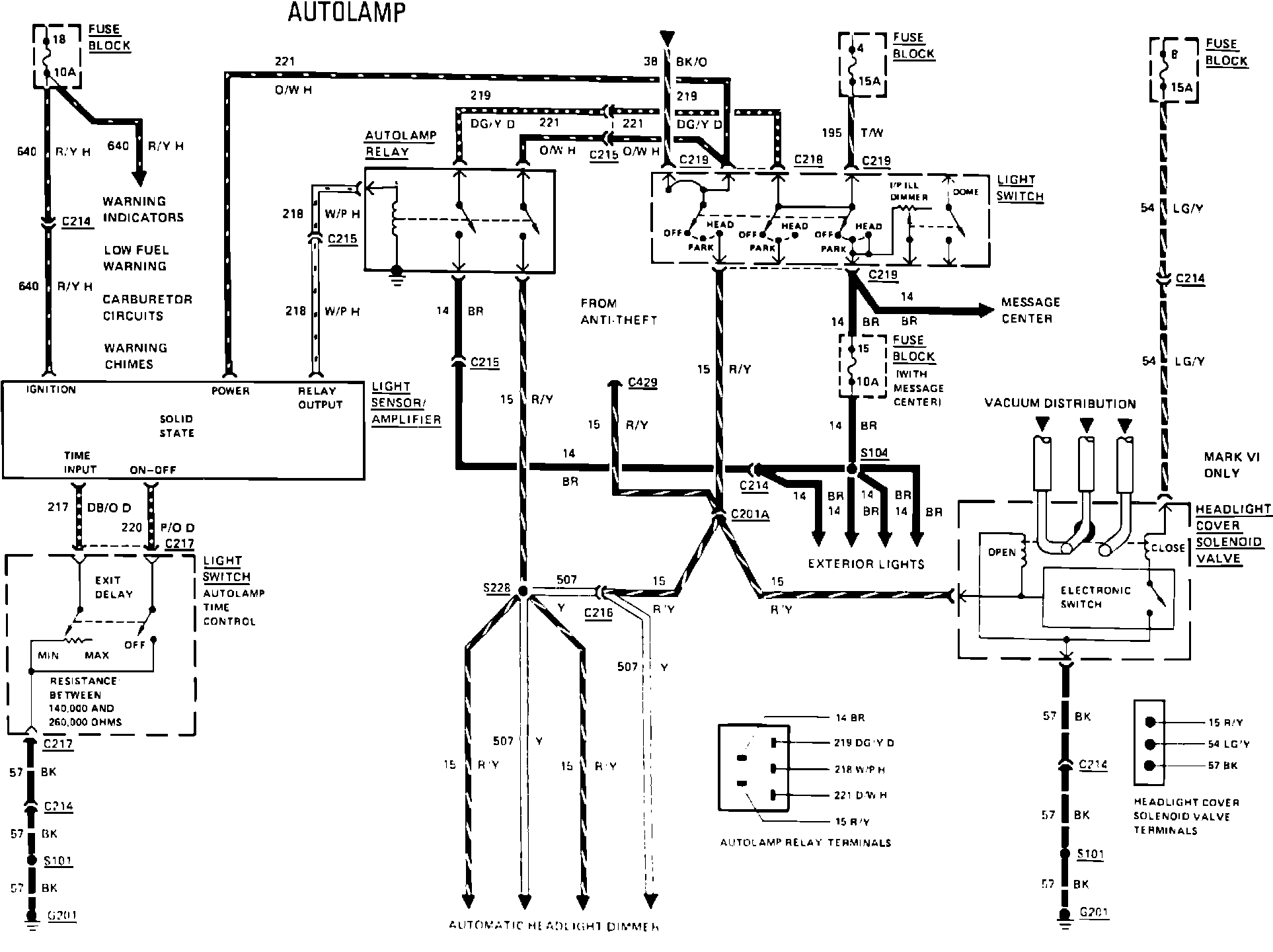

Fig. 31 Autolamp/Delayed exit wiring circuit. 1983 Mark VI & Town Car:
