Home >> Lincoln >> 1983 >> Continental V8-302 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Trip Computer

Trip Computer

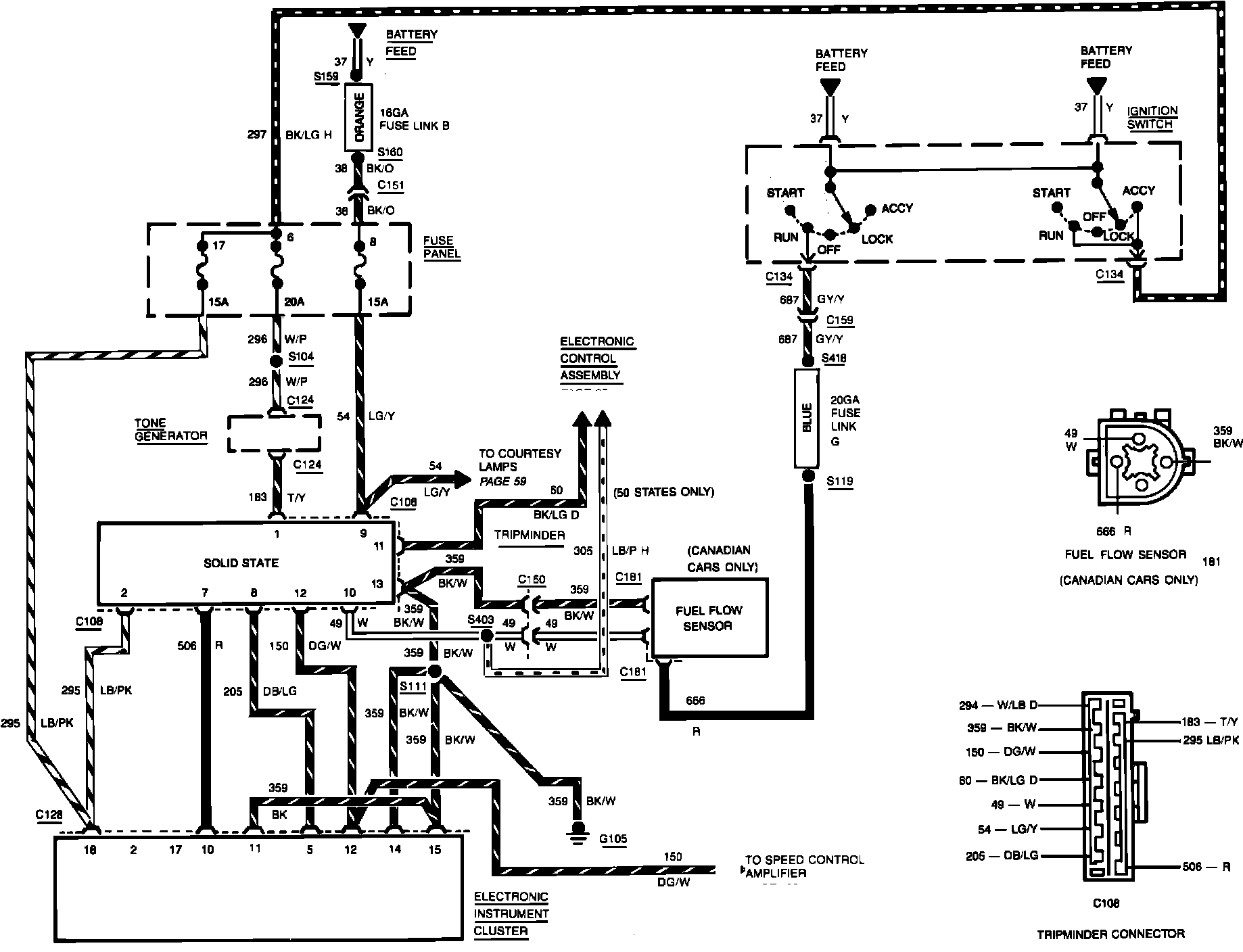

Fig. 179 Tripminder wiring circuit. 1983 Continental:
