Lincoln
>>
1983
>>
Continental V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
System Diagram
System Diagram

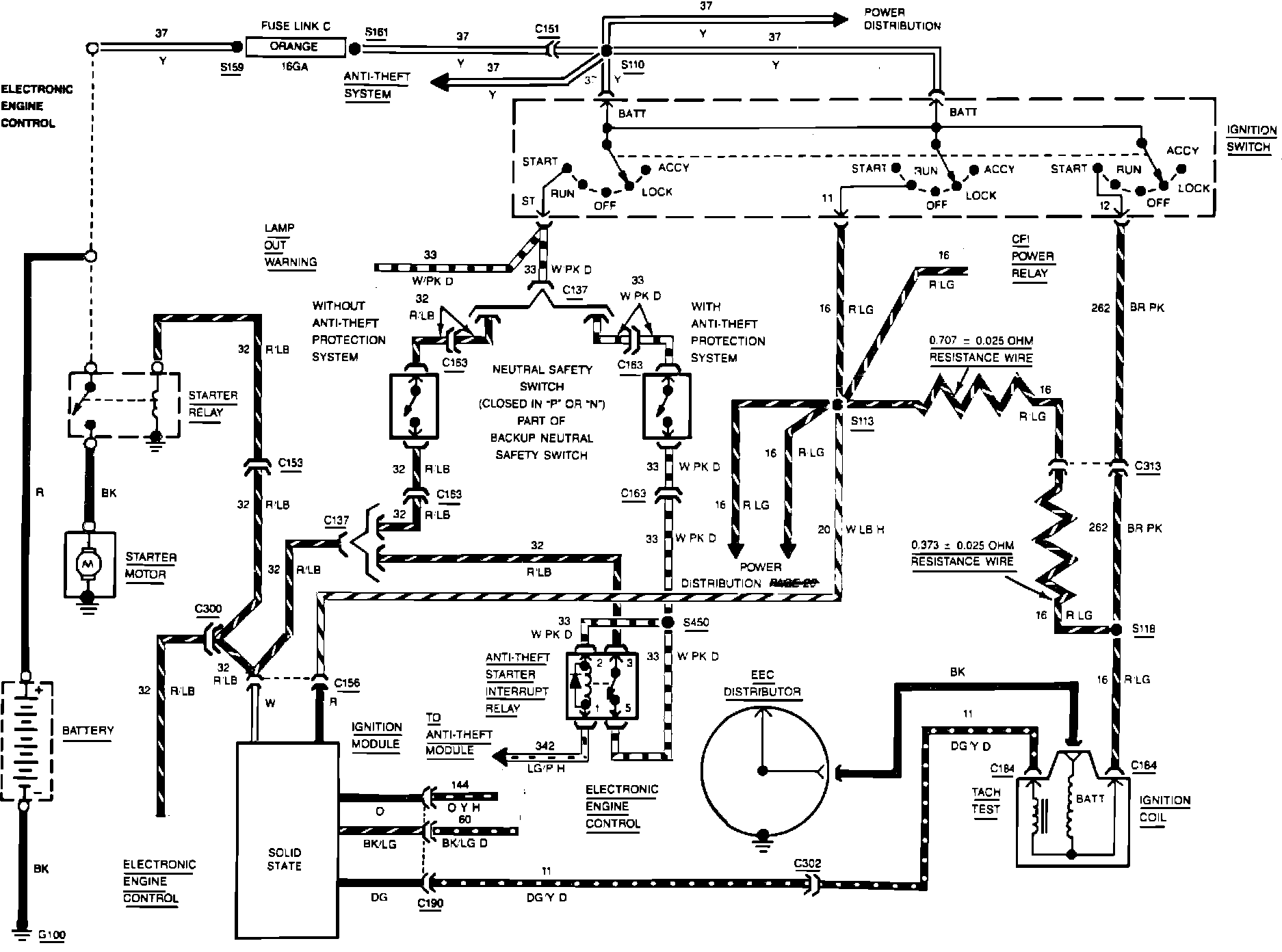

Fig. 98 Ignition & starting:
