Lincoln
>>
1983
>>
Continental V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Window Switch
Power Window Switch

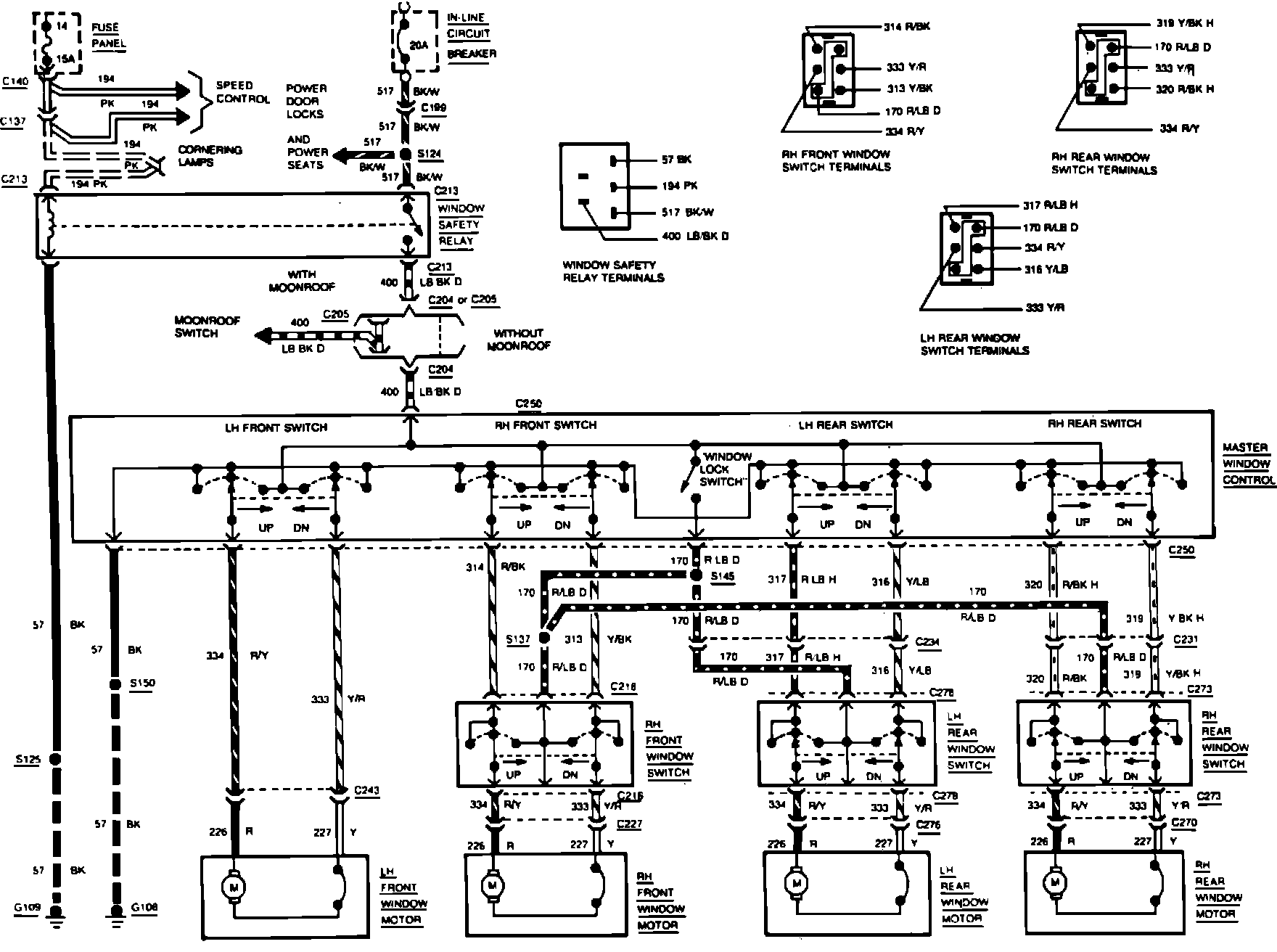

Fig. 155 Power window wiring circuit. 1983 Continental:
