Mirrors
>>
Power Mirror Switch
Power Mirror Switch

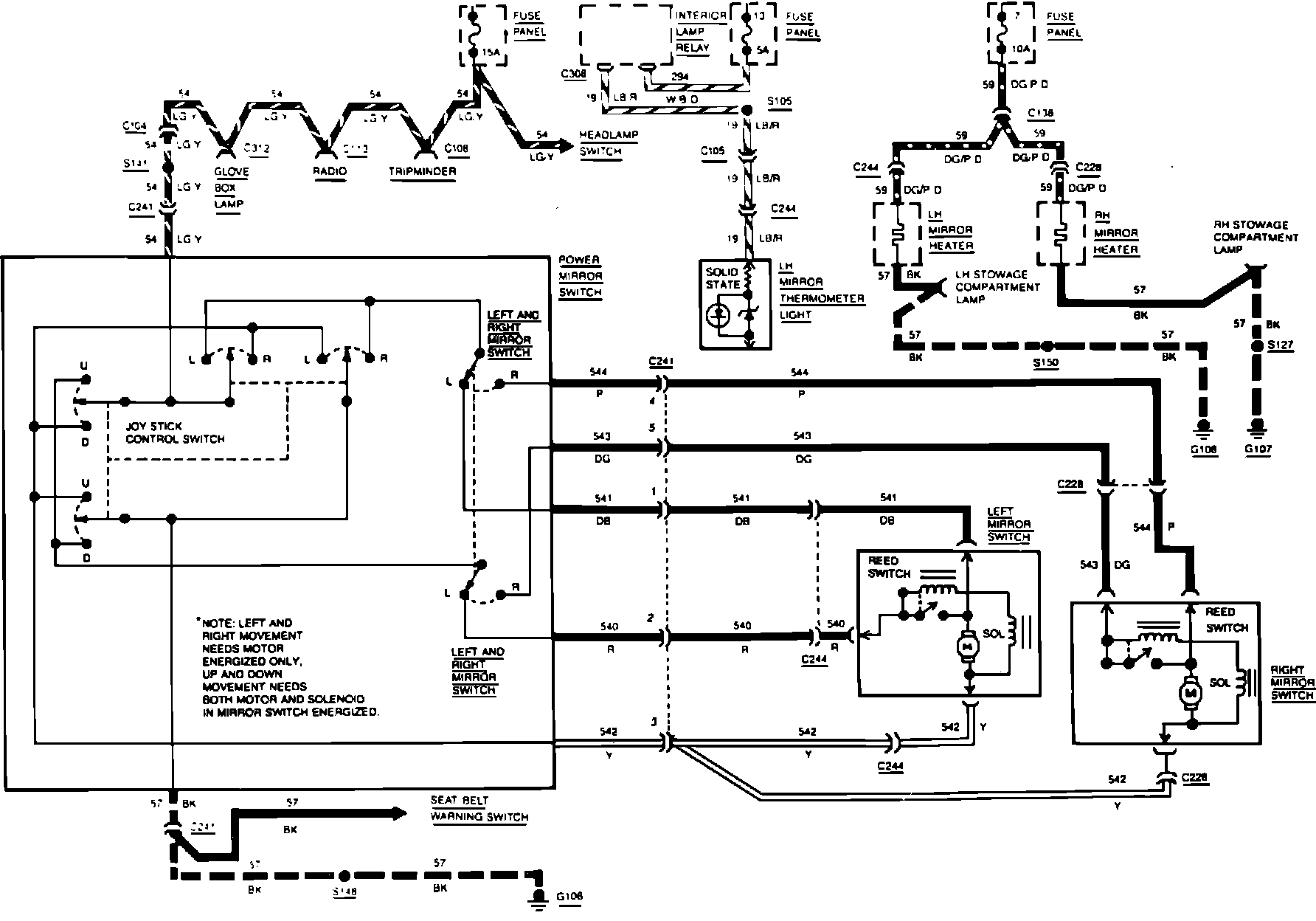

Fig. 145 Power mirror wiring circuit. 1983 Continental:
