Continental V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element

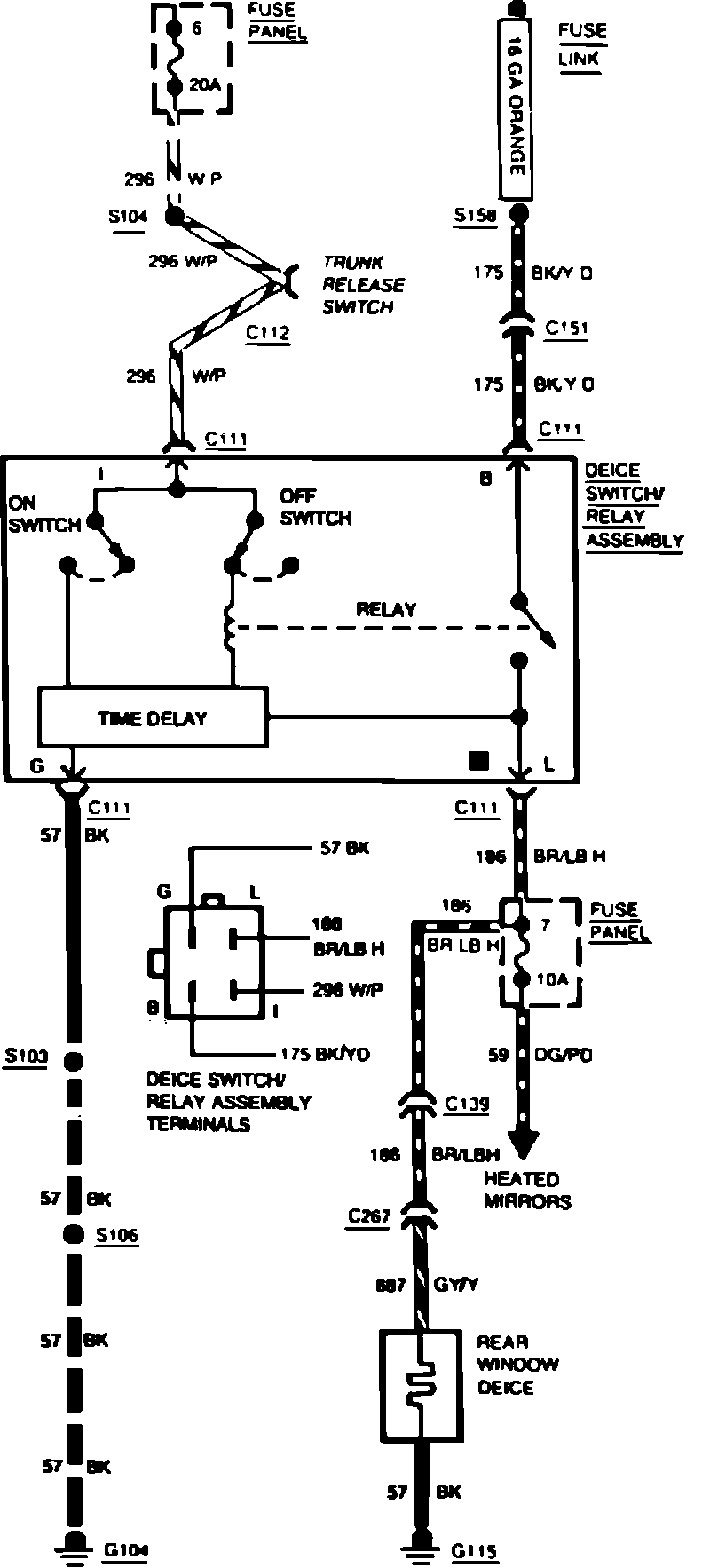

Fig. 165 Rear window defrost wiring circuit. 1983 Continental:
