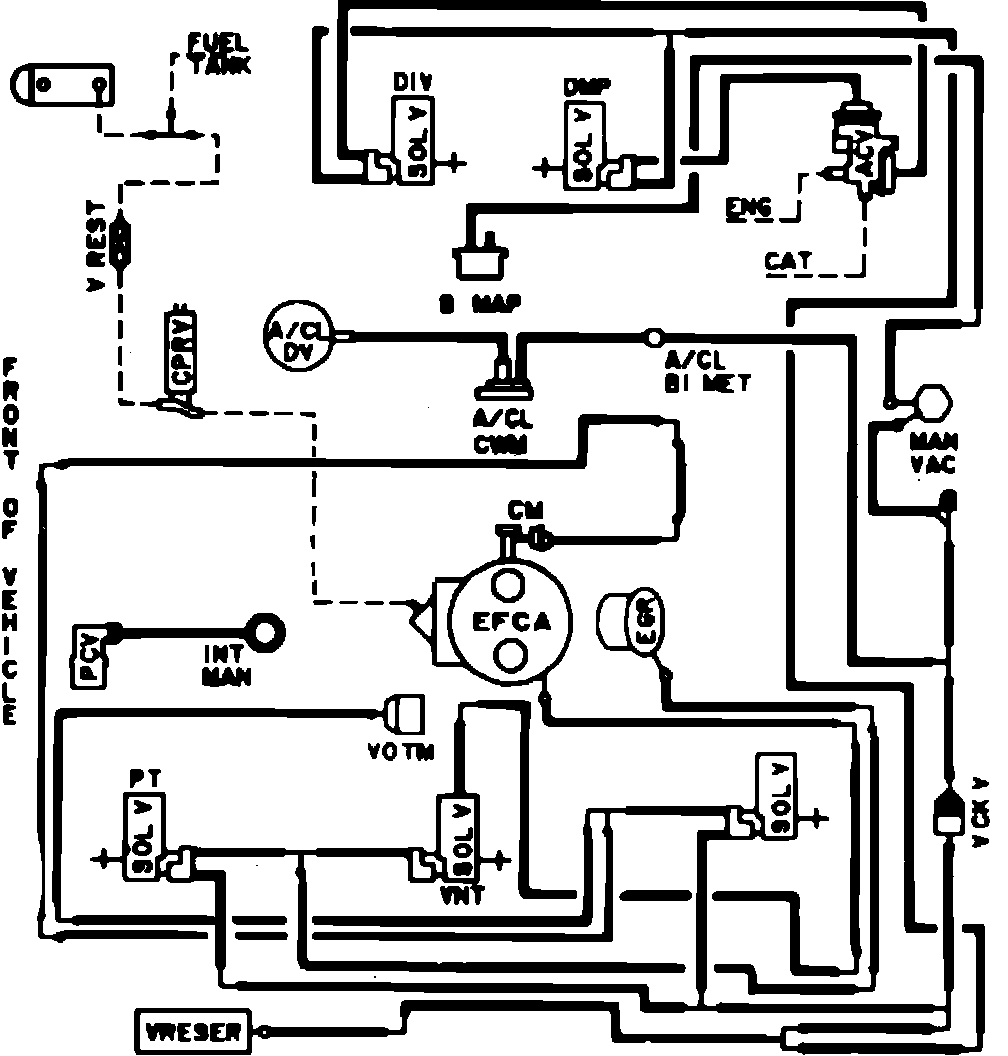

Fig. 81 Calib. Code 2-22Y-R11 Federal, Exc. High Alt.
Fig. 81 Calib. Code 2-22Y-R11 Federal, Exc. High Alt.
Vacuum hose routing:
