Drive Belt
Drive Belt
Front Engine Accessory Drive

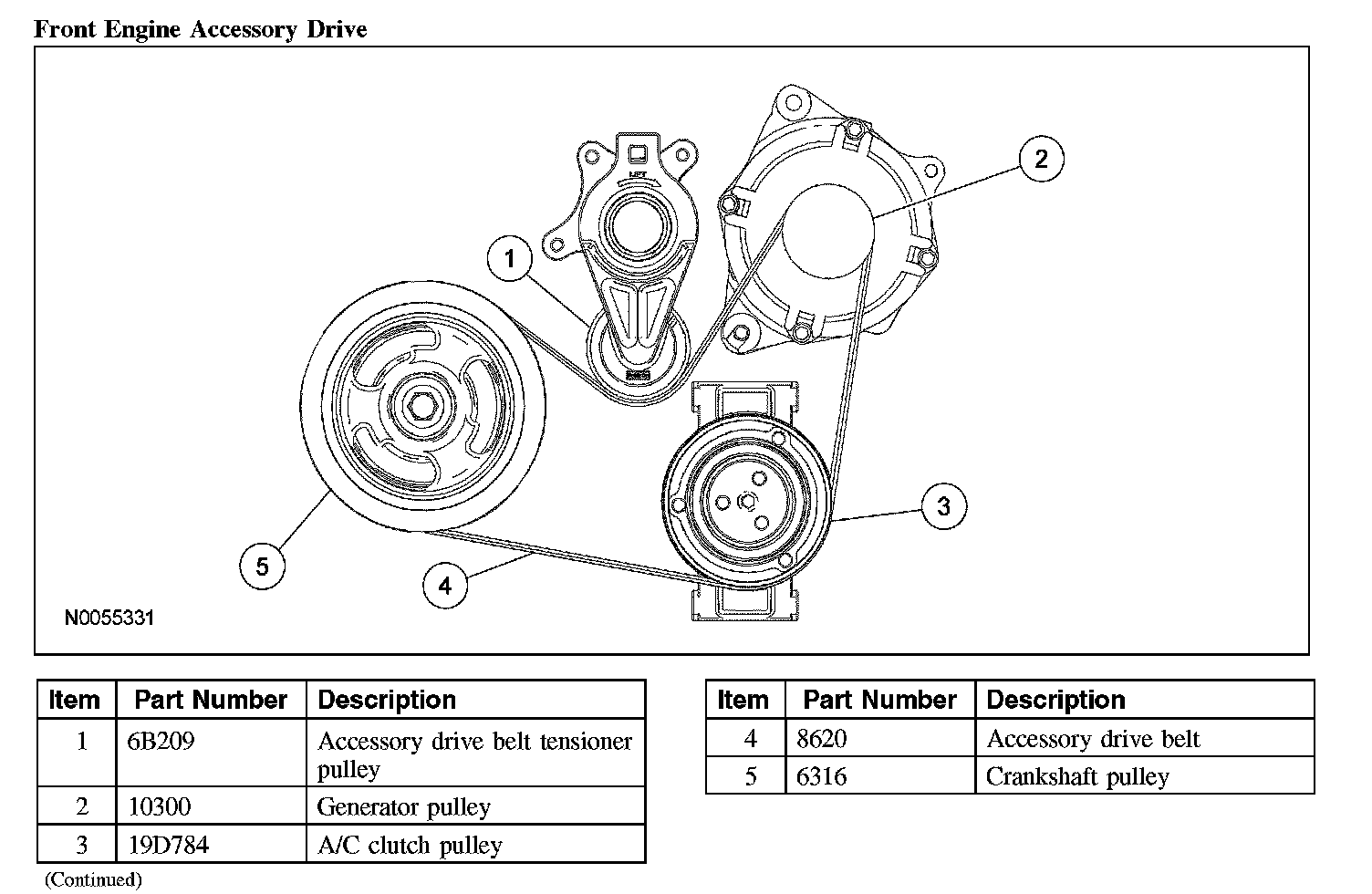

Front Engine Accessory Drive:
Power Steering Pump Belt

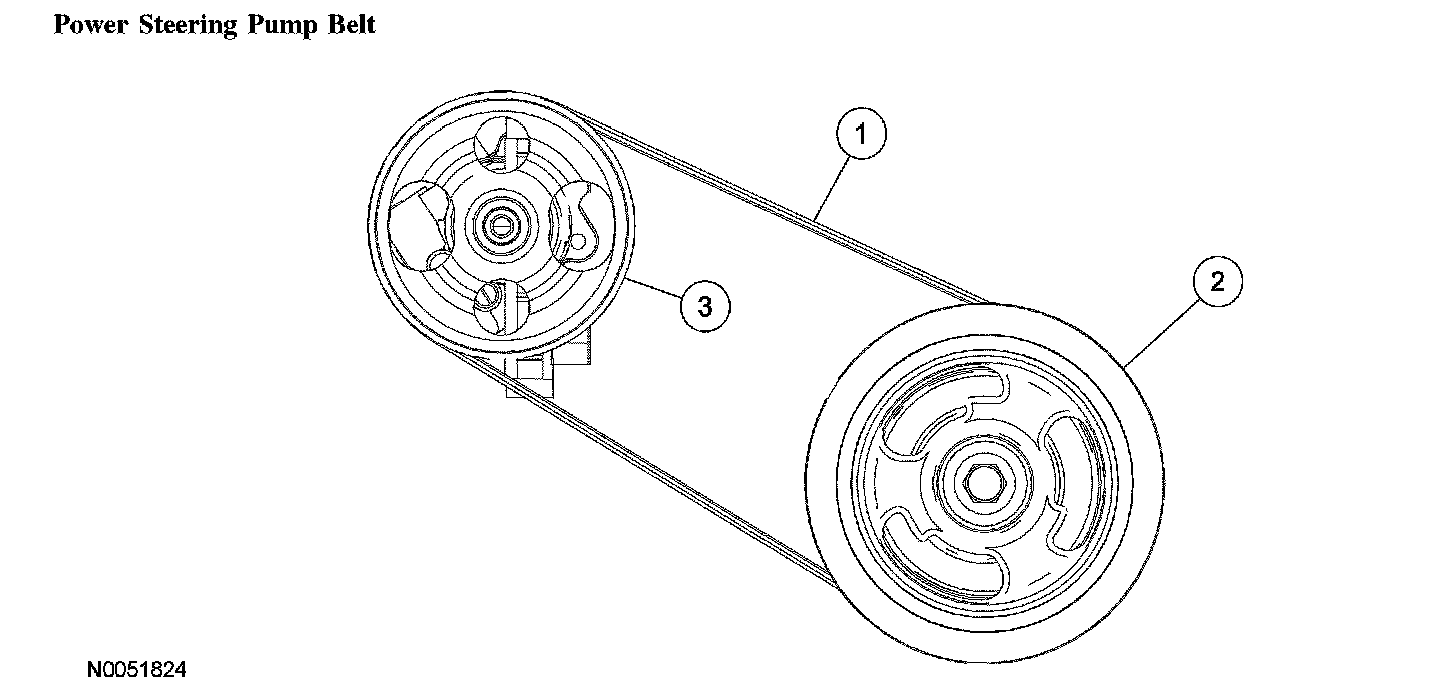

Power Steering Pump Belt (Part 1):

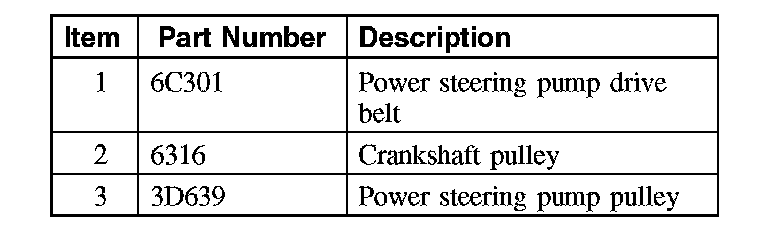

Power Steering Pump Belt (Part 2):
