Lincoln Truck
>>
2007
>>
MKX AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trunk / Liftgate
>>
Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module

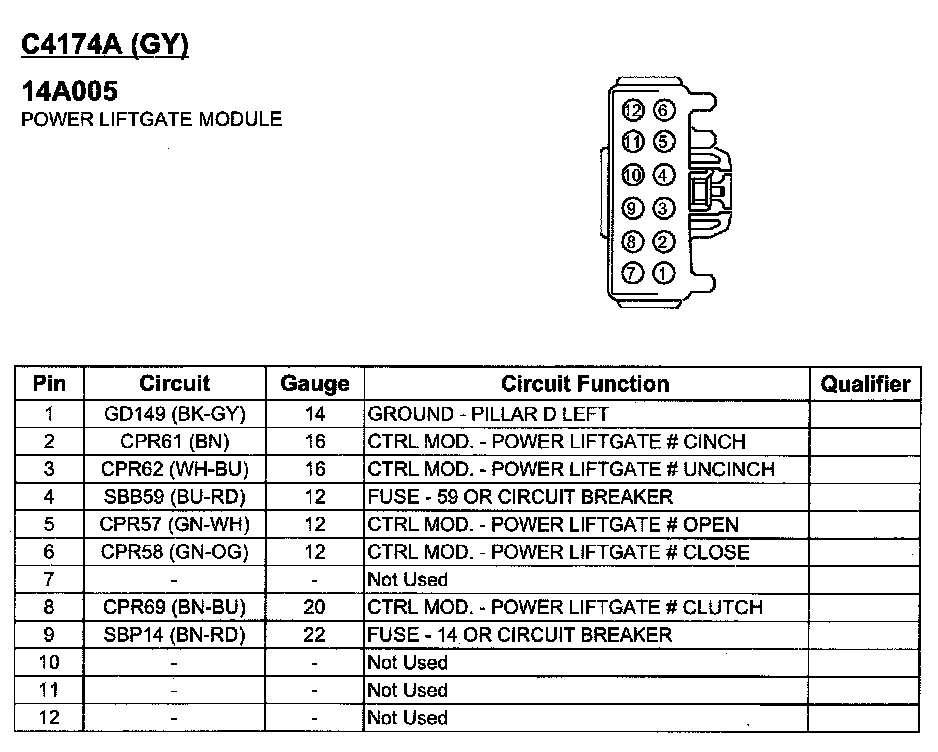

C4174A:

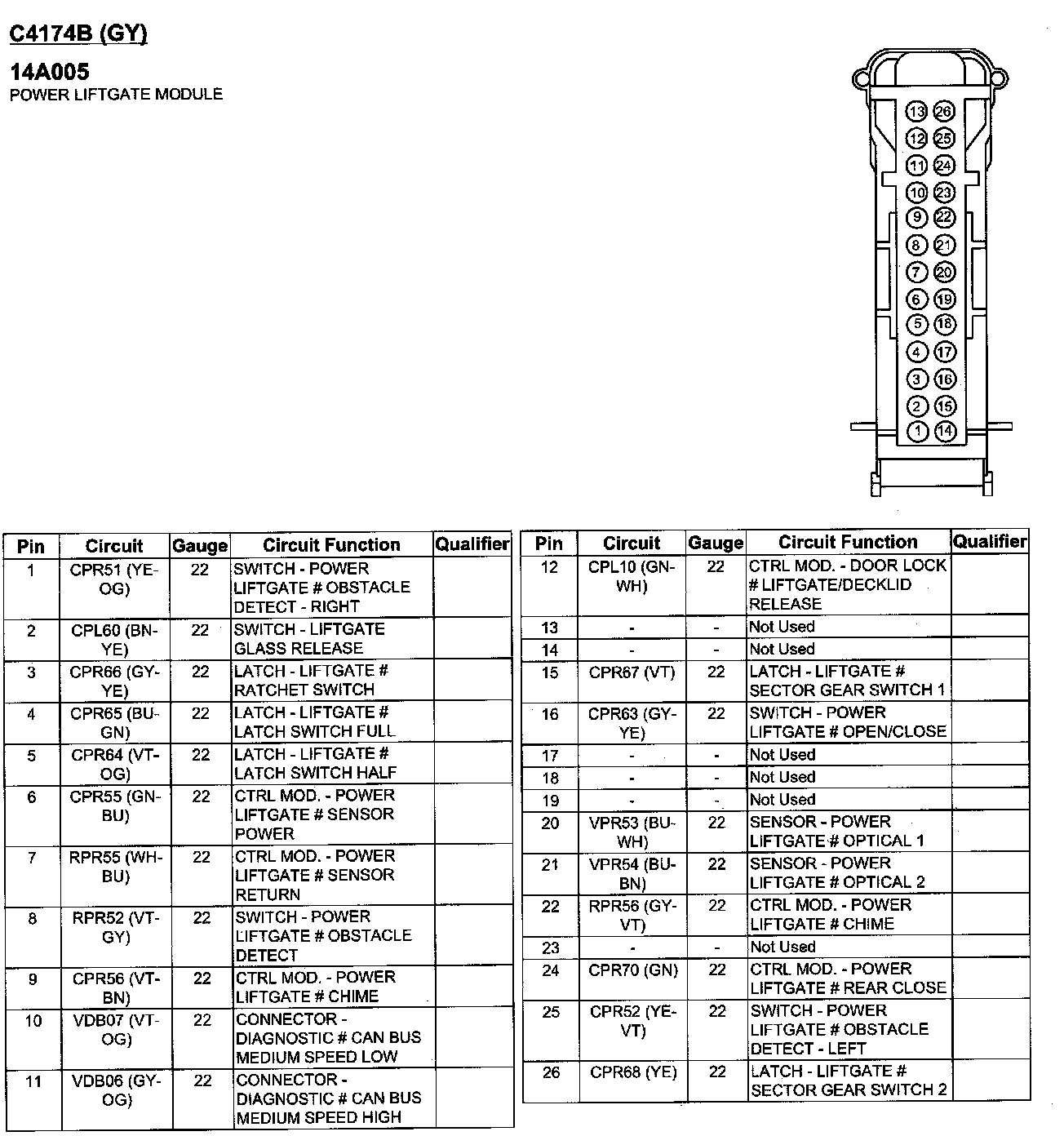

C4174B:
