Lincoln Truck
>>
2007
>>
MKX AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Climate Controlled Seat Backrest Module
>>
Passenger Side
Passenger Side

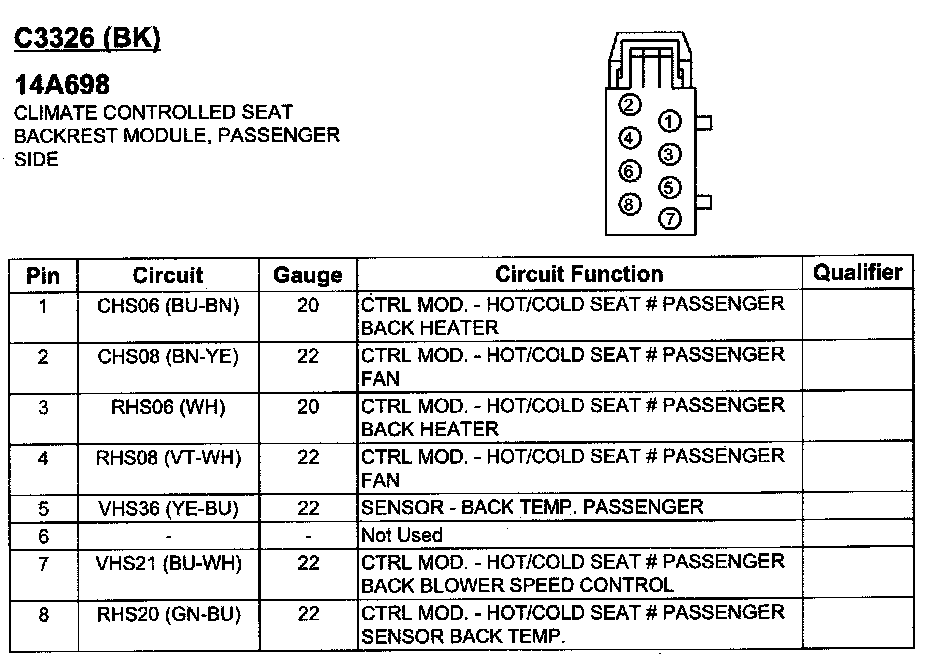

C3326:
