Lincoln Truck
>>
2007
>>
MKX AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C110-C934
>>
C139
C139

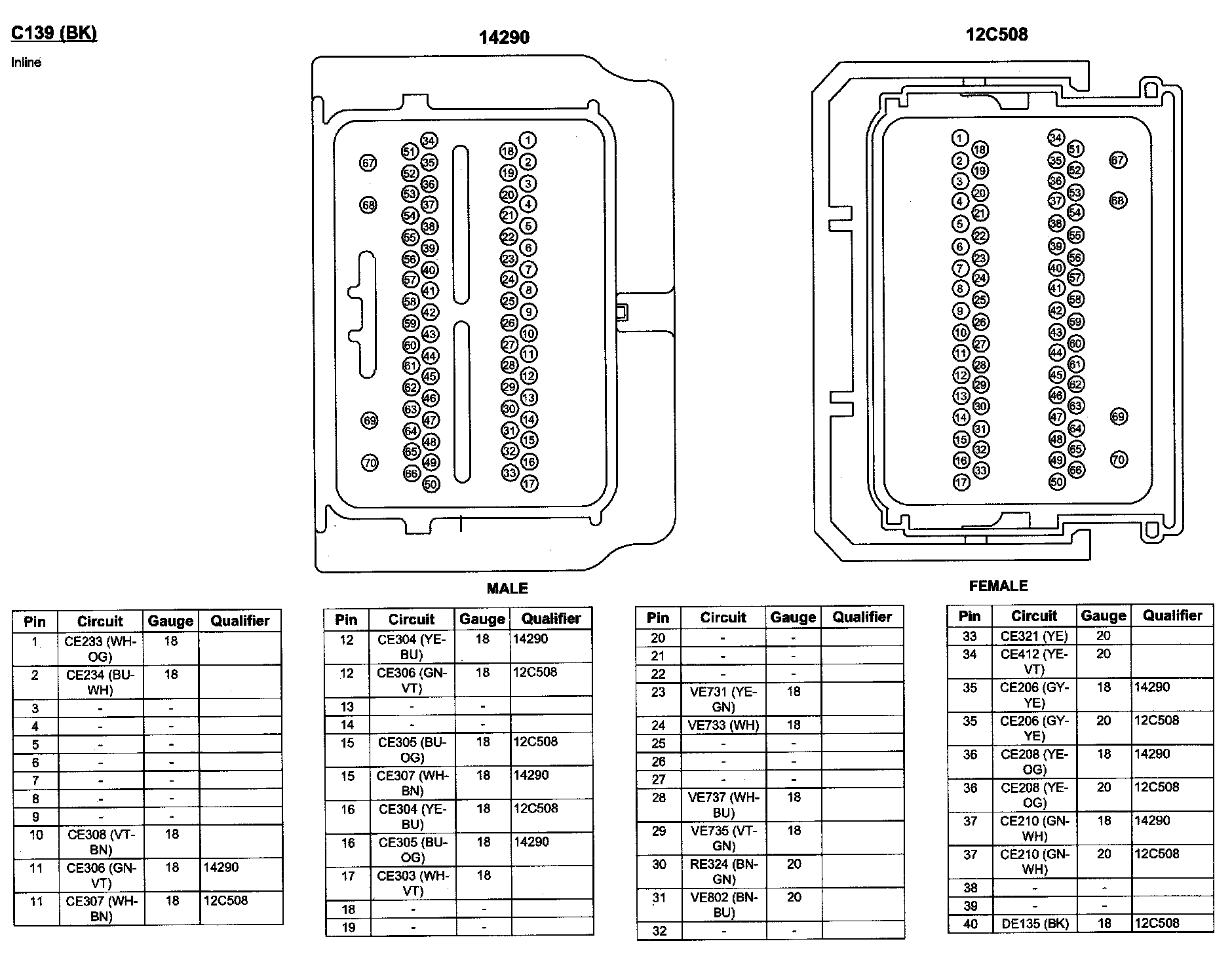

C139 (Part 1):

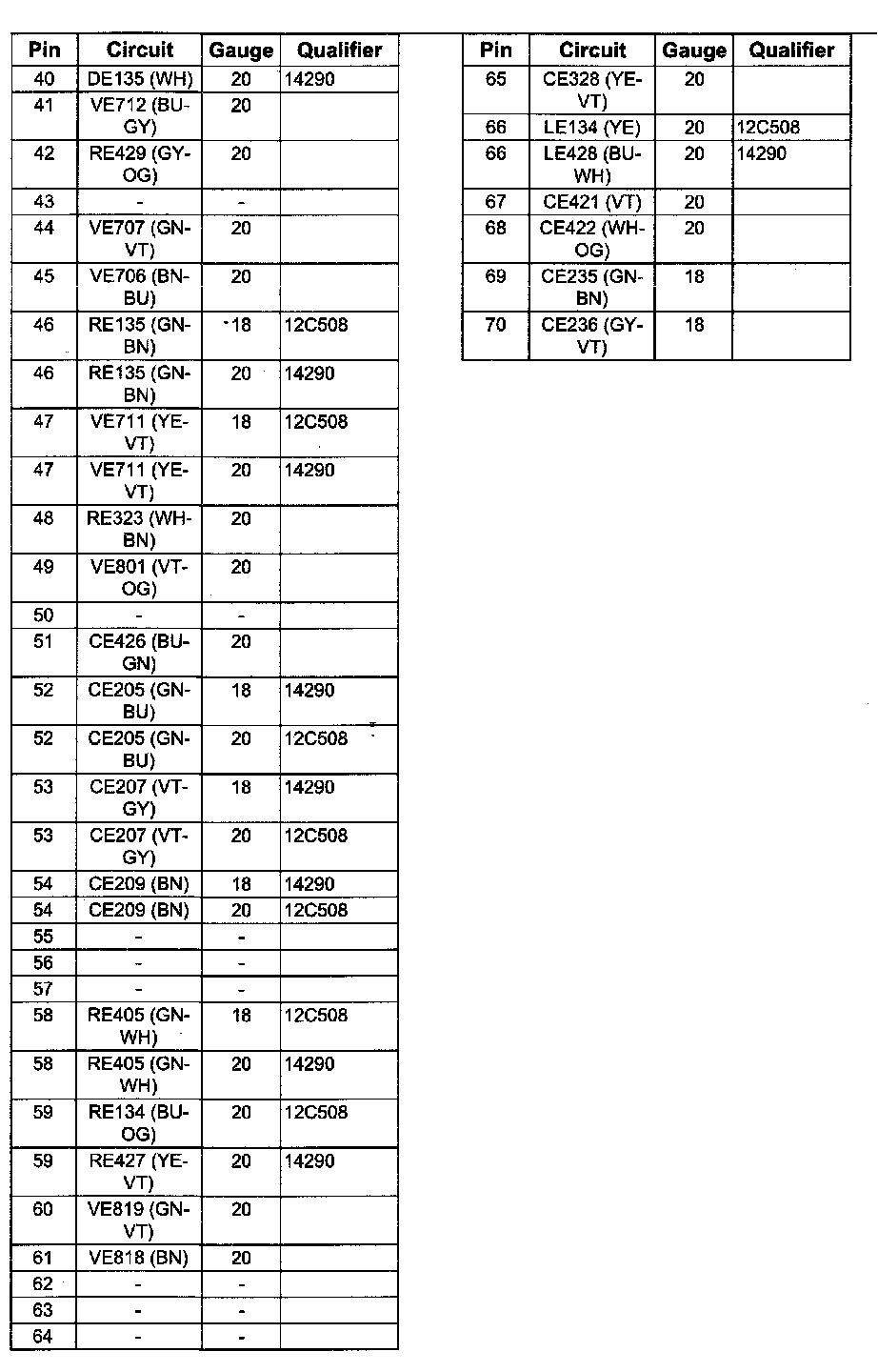

C139 (Part 2):
