Lincoln Truck
>>
2007
>>
MKX AWD V6-3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C911-C1451
>>
C1041A
C1041A

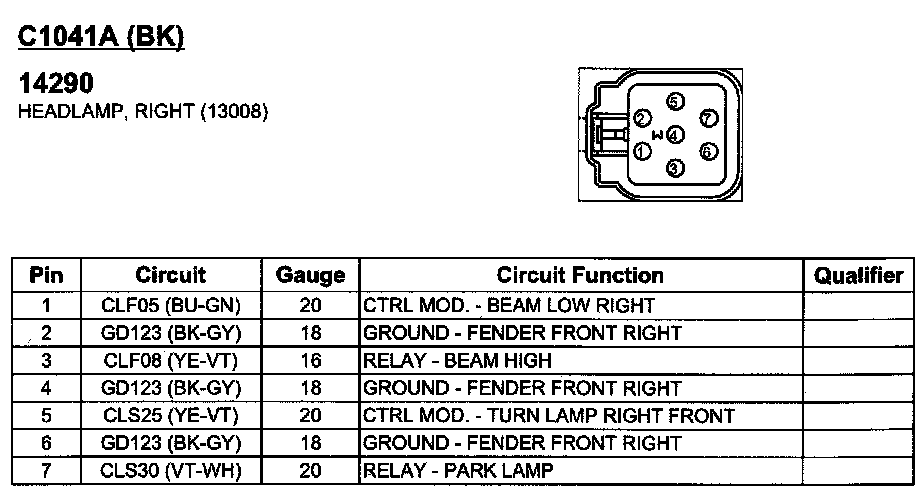

C1041A:

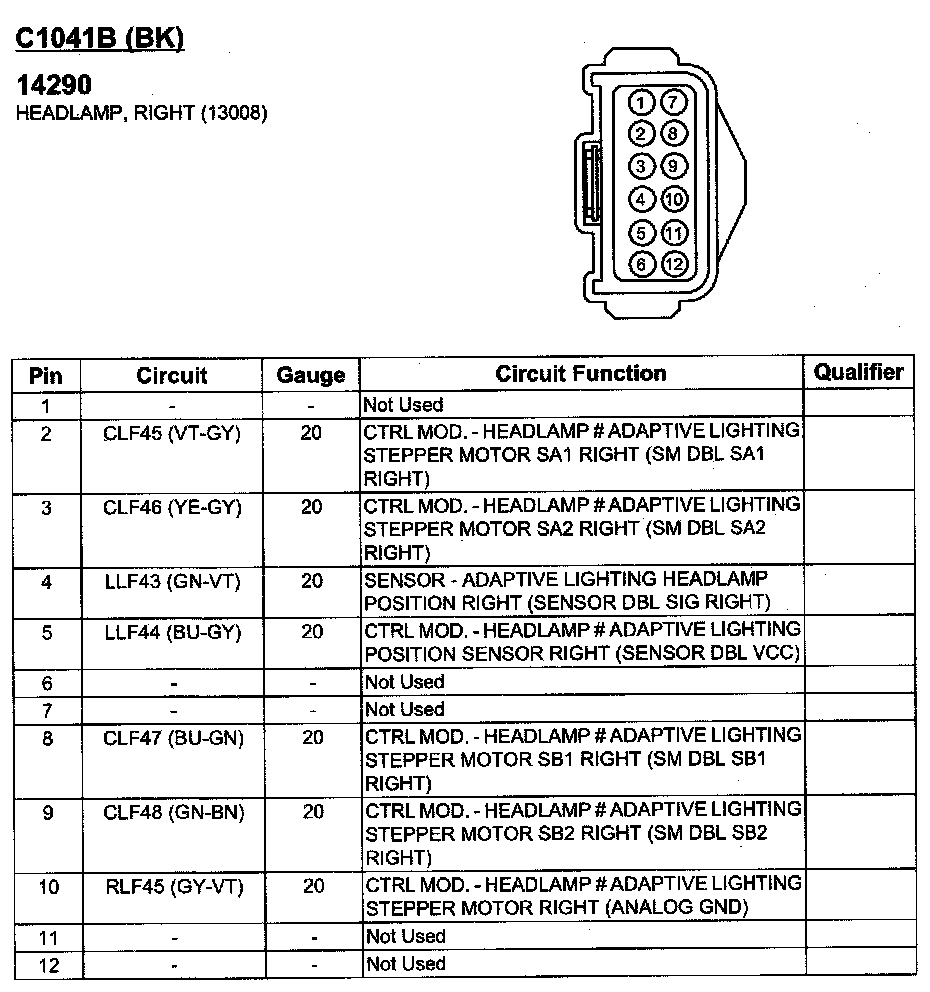

C1041B:
