Home >> Lincoln Truck >> 2007 >> MKX AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-11 (Center Console)

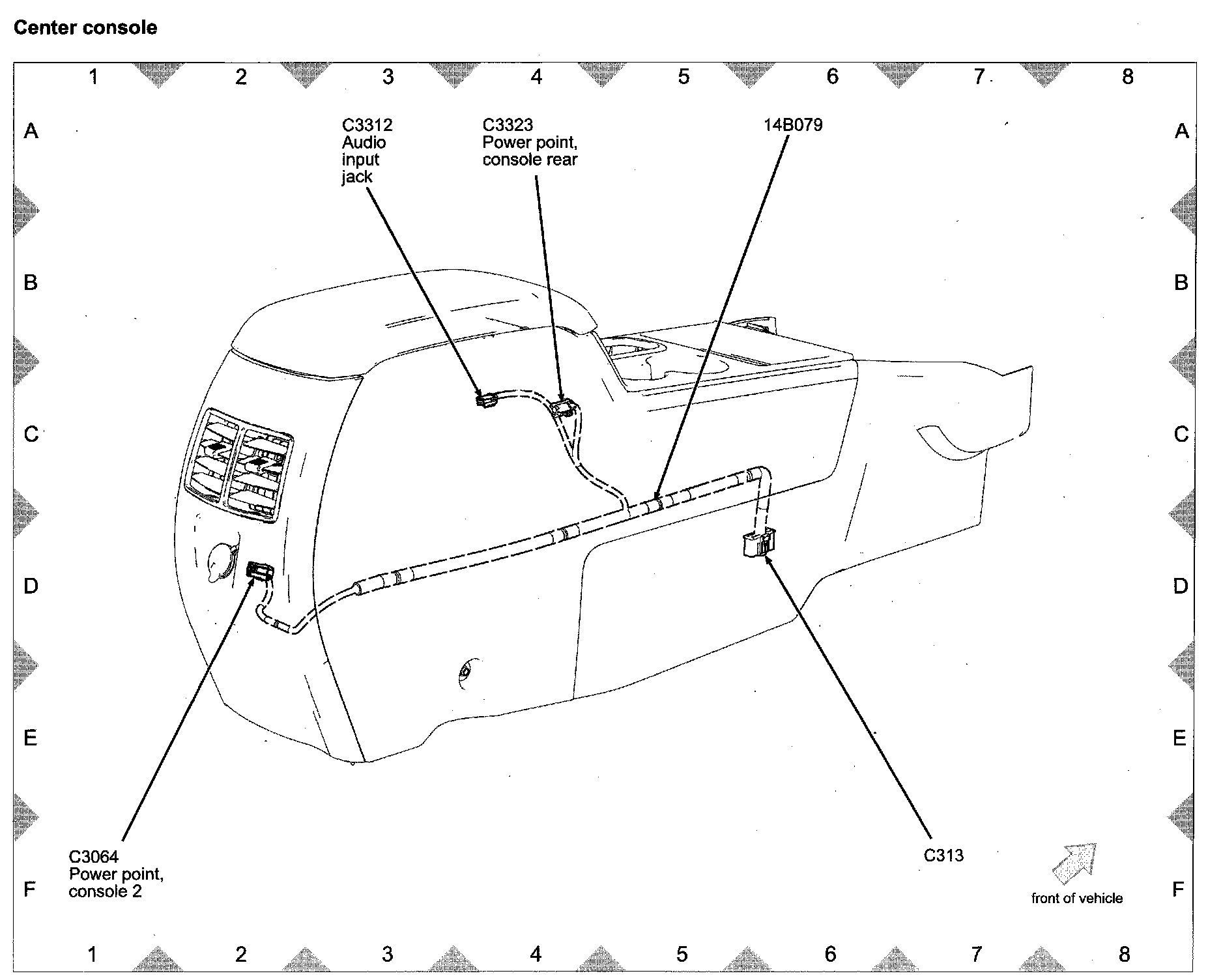

View 151-11 (Center Console)

View 151-11 (Center Console):
