Seat Backrest - Front, Without Fold Flat
SEAT BACKREST - FRONT, WITHOUT FOLD FLATSpecial Tool(s):

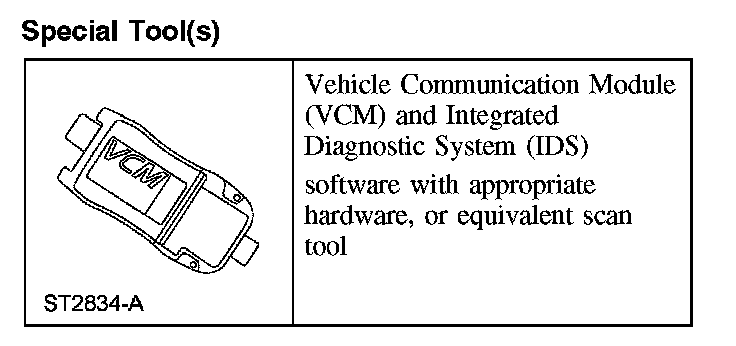

Special Tool(s)

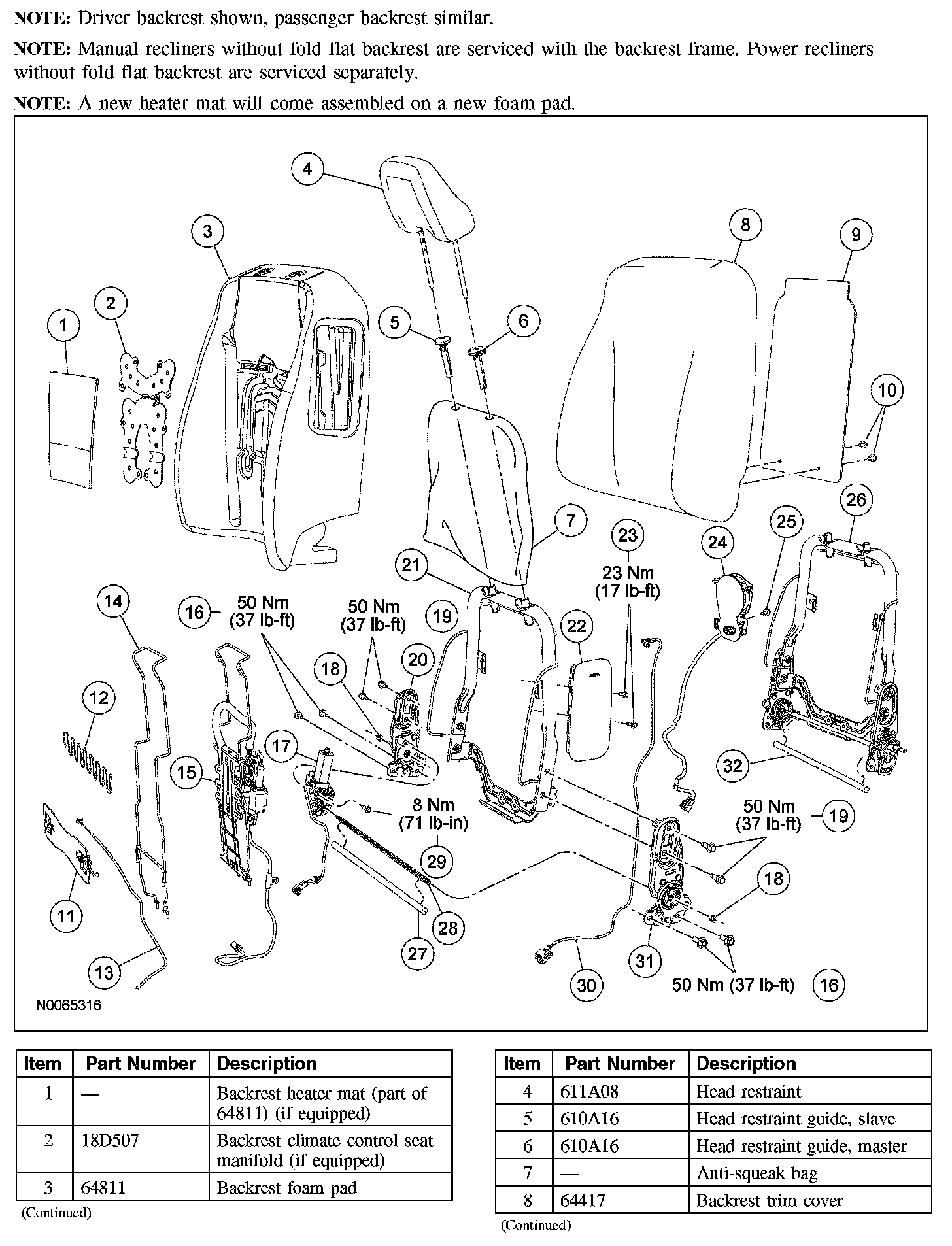

Part 1:

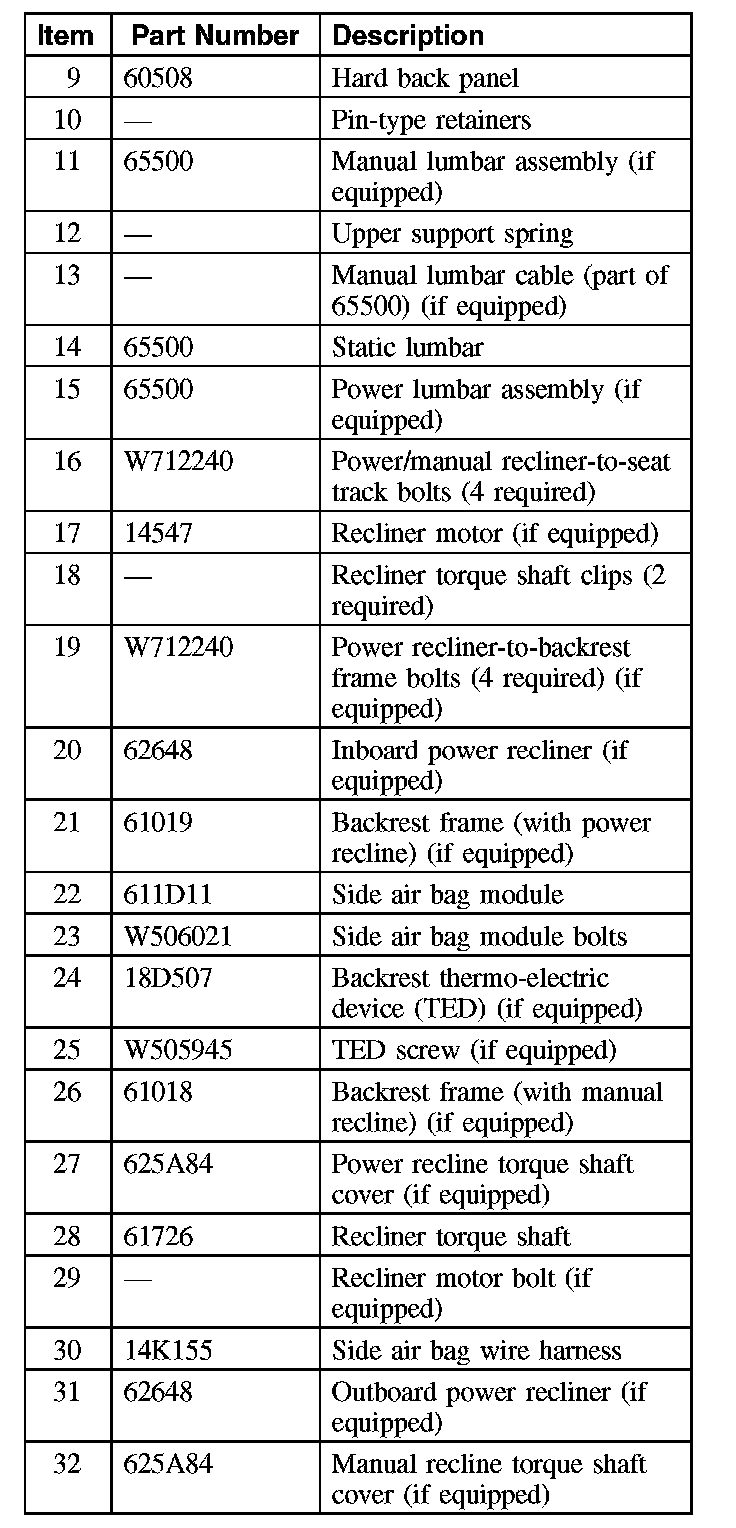

Part 2:
Disassembly and Assembly
WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Carry a live side air bag module with the air bag and tear seam pointed away from your body. This will reduce the risk of injury in the event of an accidental deployment.
- Do not set a live side air bag module down on the cover tear seam. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas generant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- Side air bag modules with damaged covers must be replaced.
- To reduce the risk of personal injury, do not use any memory saver devices.
NOTE:
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
All seats
1. Position the seat to access all the seat track-to-floor bolts and the safety belt retractor belt anchor nut.
2. Depower the supplemental restraint system (SRS).
3. Remove the front seat.
4. Remove the front seat backrest.
5. Release the backrest trim cover J-clips.
6. NOTE: RH side shown, LH similar.
Release the LH and RH backrest trim cover tether from the backrest frame.

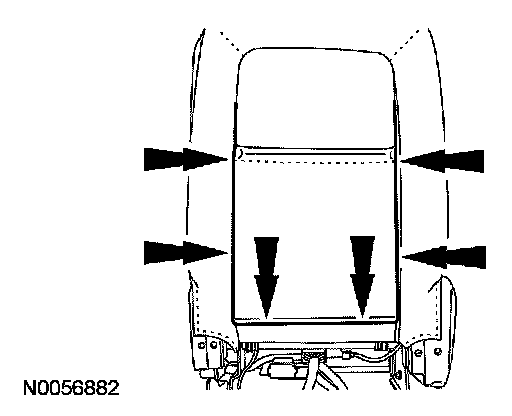

7. Pull out at the bottom and detach the 2 lower hard back panel pin-type retainers.
8. Slide the hard back panel out of the backrest trim cover.
9. Remove the head restraint.

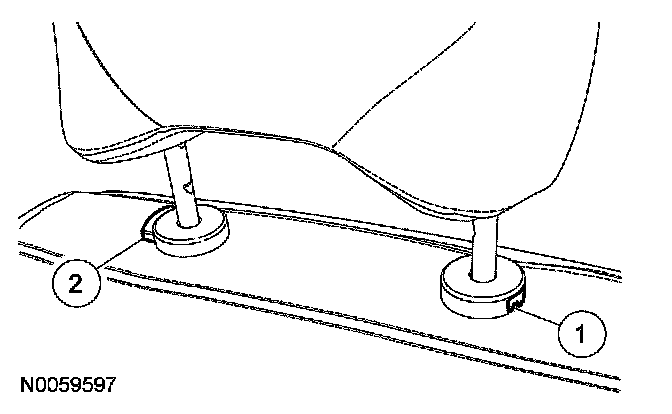

1. Using an appropriate tool, push in the hole, lift up on the head restraint and release one side of the head restraint.
2. Push the release button and remove the head restraint.
10. CAUTION: Always install a new slave head restraint guide.
Pull out and remove the master and slave head restraint guides.
11. CAUTION: When installing, make sure the side air bag module wiring harness is not pinched between the side air bag module and the backrest frame.
NOTE: When installing the side air bag module, new bolts must be installed.
Remove the side air bag module.
1. Remove the 2 side air bag module bolts.
- To install, tighten to 23 Nm (17 lb-ft).
2. Remove the side air bag module with wire harness.

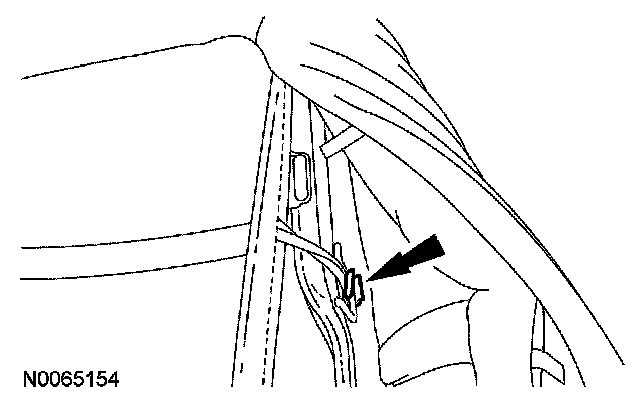

- Detach any side air bag module wire harness retainers.
12. CAUTION: Use care when separating the backrest trim cover from the hook-and-loop strips, or the hook-and-loop strips can be torn from the backrest foam pad.
NOTE: A new heater mat will come attached on a new foam pad.
Remove the backrest trim cover from the backrest foam pad in the following sequence.
1. Invert the backrest trim cover in an inside out fashion to the wire in the backrest trim cover attached to the clips in the backrest foam pad
- Separate the hook-and-loop strips.
2. Separate the backrest trim cover wire from the clips in the backrest foam pad.
- If equipped with climate controlled seat, on assembly make sure the climate control seat manifold is in place before snapping the backrest trim cover wire back into the backrest foam pad clips.
3. Remove the backrest trim cover.
13. Separate the backrest frame from the backrest foam pad.
- If equipped with climate controlled seats, on assembly make sure there is no air gap between the backrest thermal electric device (TED) and the backrest foam pad.
Seats with climate control
14. Remove the backrest climate control seat manifold from the backrest foam pad.
15. Separate the wire harness pin-type retainer from the backrest frame, remove the screw, release the 3 clips and remove the TED.
Seats with power lumbar
16. Remove the power lumbar assembly in the following sequence.
1. Disconnect the power lumbar motor.
2. Release the power lumbar assembly clip at the top of the backrest frame.
3. Slide the lumbar wire frame up and out at the bottom of the backrest frame.
4. Remove the power lumbar assembly.
Seats with manual lumbar
17. Release the manual lumbar hooks from the backrest frame, route out the manual lumbar cable and remove the manual lumbar assembly.
Seats with power recline
18. CAUTION: The recliners are synchronized. Avoid rotating the recliner shaft until fully installed.
Remove the power recline motor in the following sequence.
1. Remove the clip from the torque shaft on the power recline motor side.
2. Slide out and remove the torque shaft.
3. Remove the power recline motor bolt.
- To install, tighten to 8 Nm (71 lb-in).
4. Disconnect and remove the power recline motor.
19. NOTE:
- Manual recliners are only serviced with the backrest frame. Do not remove the bolts retaining the manual recliners to the backrest frame.
- To install a new power recliner, using the torque shaft, rotate both recliners to their front or rear stop.
Remove the 4 bolts and the inboard and outboard power recliners.
- To install, tighten to 50 Nm (37 lb-ft).
All seats
20. To assemble, reverse the disassembly procedure.
21. Install the front seat backrest.
22. Install the front seat and repower the SRS. If a passenger seat has been serviced, do not prove out the SRS at this time.
Passenger seat
23. Carry out the Occupant Classification Sensor (OCS) System Zero Seat Weight Test and prove out the SRS.
