B-Pillar Trim Panel

INTERIOR TRIM - EXPLODED VIEW

Part 1:

Part 2:

B-PILLAR TRIM PANEL

Removal and Installation
1. Position the front seats in the full forward position.







2. NOTE: Inspect the safety belt D-ring cover for damage. If the safety belt D-ring cover does not remain in place, install a new cover.

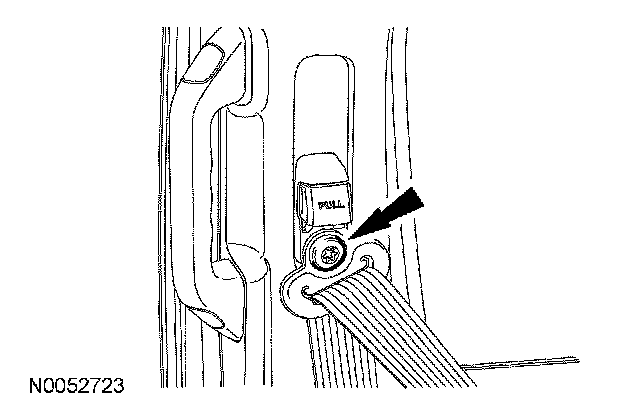

Remove the safety belt D-ring cover and remove the safety belt bolt.
- To install, tighten to 54 Nm (40 lb-ft).

3. Remove the front door scuff plate trim panel.
4. Remove the rear door scuff plate trim panel.
5. Remove the lower B-pillar trim panel.
6. Position the front and rear door weatherstrips aside.

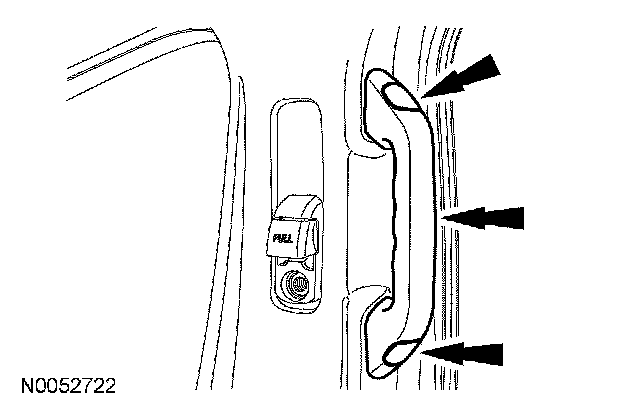

7. Remove the upper B-pillar trim panel assist handle, if equipped.
- Remove the bolt covers.
- Remove the bolts.
- To install, tighten to 9 Nm (80 lb-in).

8. Remove the B-pillar trim panel.
- Remove the screw cover.
- Remove the screw.
- To install, tighten to 9 Nm (80 lb-in).

9. To install, reverse the removal procedure.
