Trunk / Liftgate Interior Trim Panel: Service and Repair

LIFTGATE TRIM PANEL







Removal and Installation

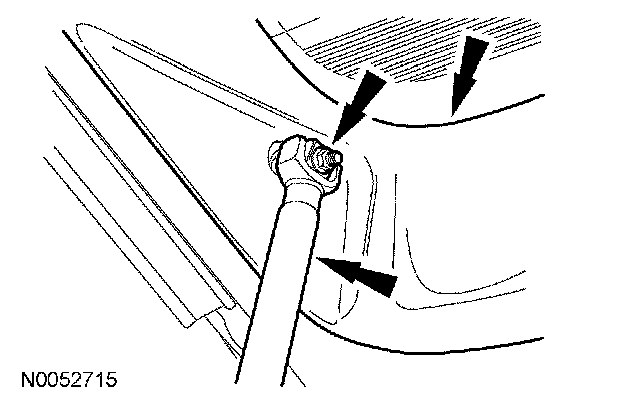

1. Remove the power liftgate rod-to-liftgate cover and nut, if equipped
- To install, tighten to 11 Nm (8 lb-ft).

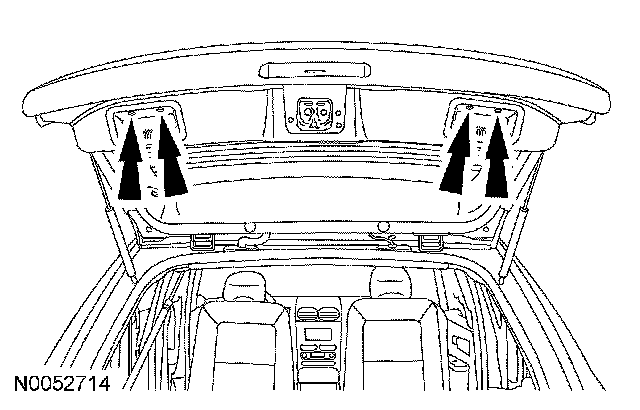

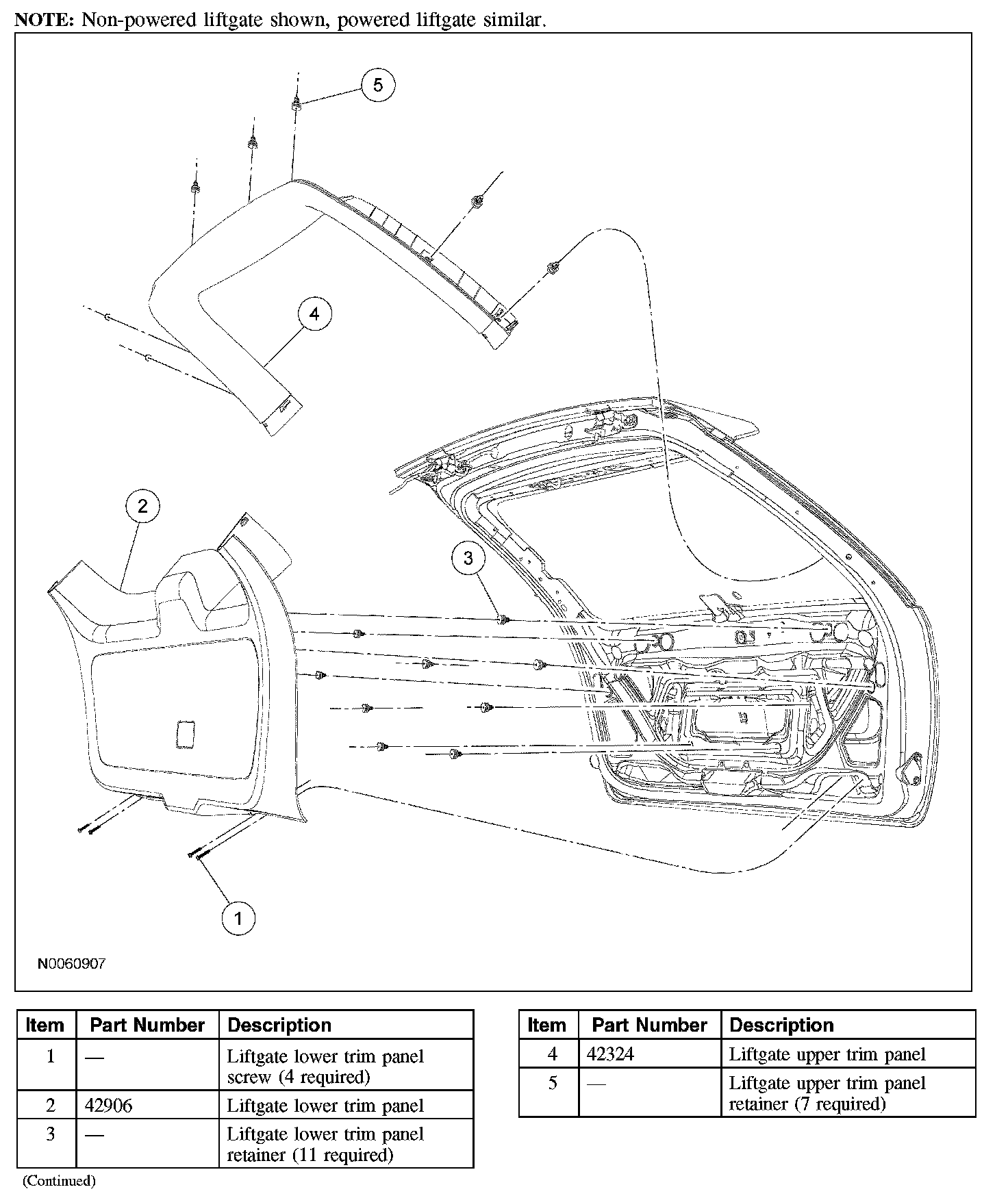

2. Remove the liftgate lower trim panel.
- Remove the 4 screws.
- Remove the liftgate lower trim panel.

3. Remove the liftgate upper trim panel.
4. To install, reverse the removal procedure.
