Test F: The Power Liftgate Does Not Operate Correctly - Pinch Strip Does Not Stop/Reverse The Liftgate

PINPOINT TEST F: THE POWER LIFTGATE DOES NOT OPERATE CORRECTLY - PINCH STRIP DOES NOT STOP/REVERSE THE LIFTGATE

F1-F3:

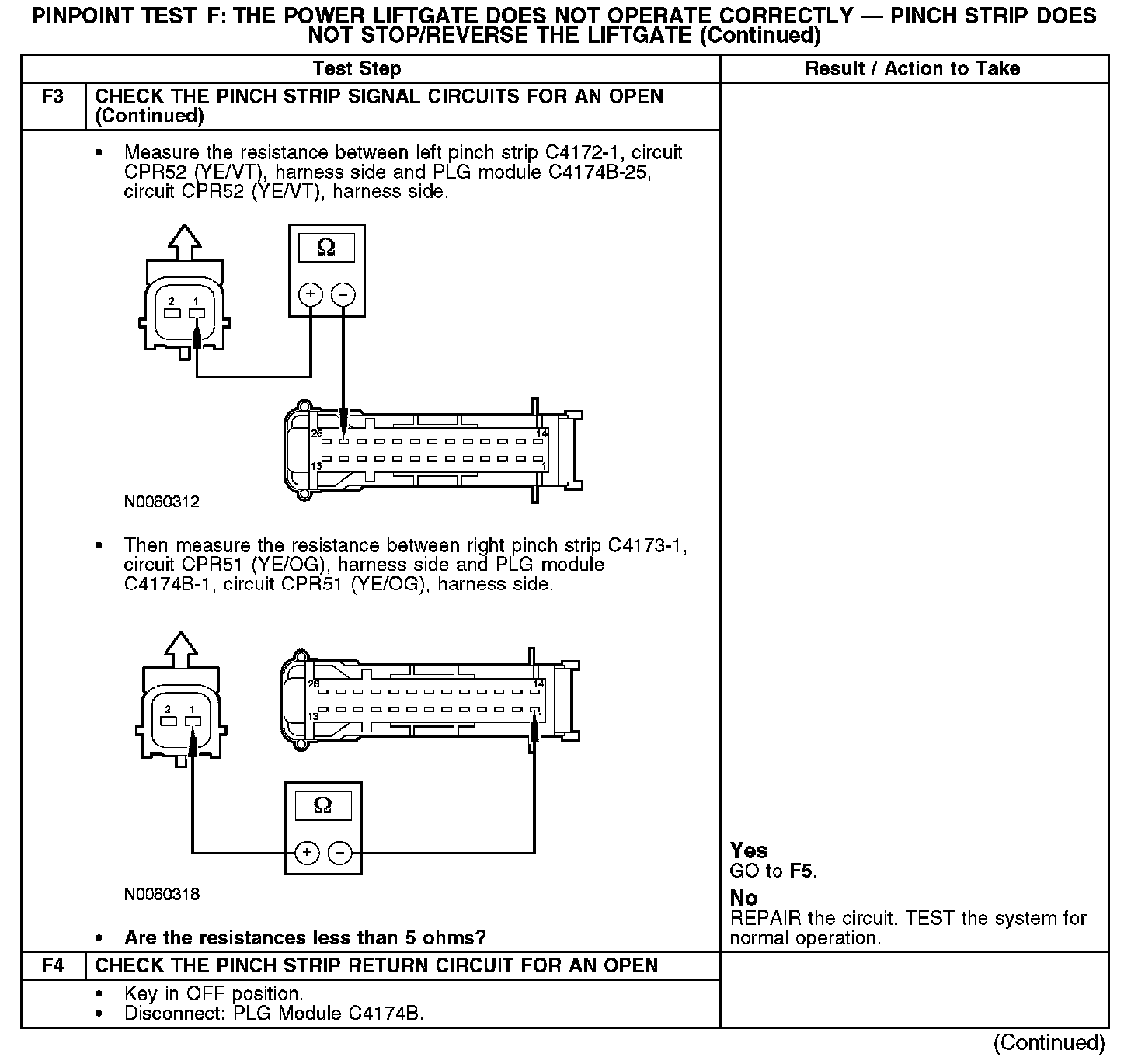

F3-F4:

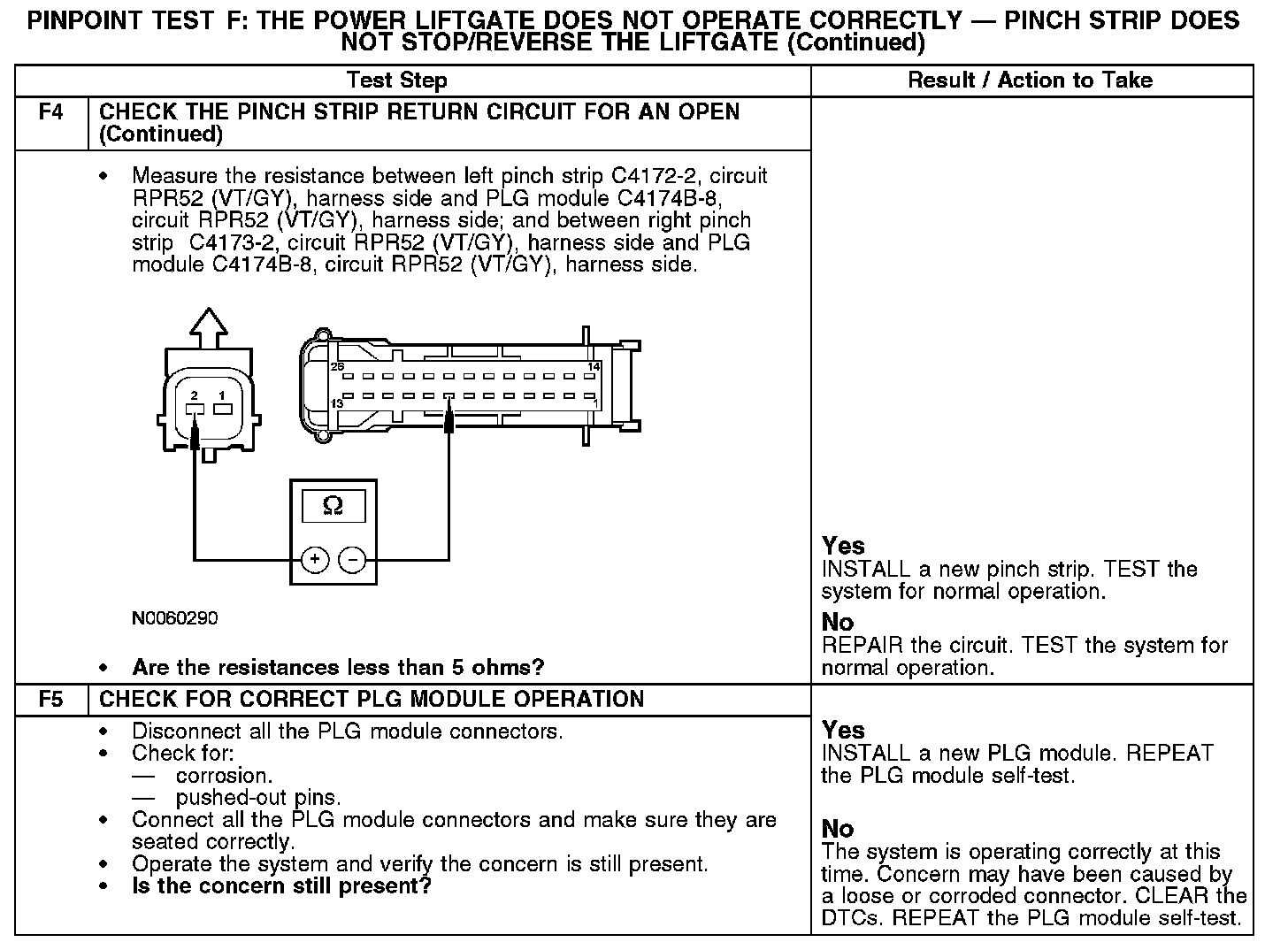

F4-F5:

Normal Operation
When the power liftgate (PLG) moves in the close direction, the PLG module monitors the pinch strips and position sensor for obstacle detection. The PLG module uses a 5-volt reference signal on circuit CPR52 (YE/VT) and a return signal on circuit RPR52 (VT/GY) for the left pinch strip. The PLG module uses a 5-volt reference signal on circuit CPR51 (YE/OG) and a return signal on circuit RPR52 (VT/GY) for the right pinch strip. The right and left pinch strip return signal circuits are spliced together.

Possible Causes
- PLG module diagnostic trouble code (DTC) B2699 left pinch strip open or short to battery
- PLG module DTC B2700 right pinch strip open or short to battery
- Circuit CPR51 (YE/OG), CPR52 (YE/VT) or RPR52 (VT/GY) open
- Pinch strip
- PLG module
