Test D: The Power Liftgate Does Not Operate Correctly - Reverses During The Power Close Operation

PINPOINT TEST D: THE POWER LIFTGATE DOES NOT OPERATE CORRECTLY - REVERSES DURING THE POWER CLOSE OPERATION

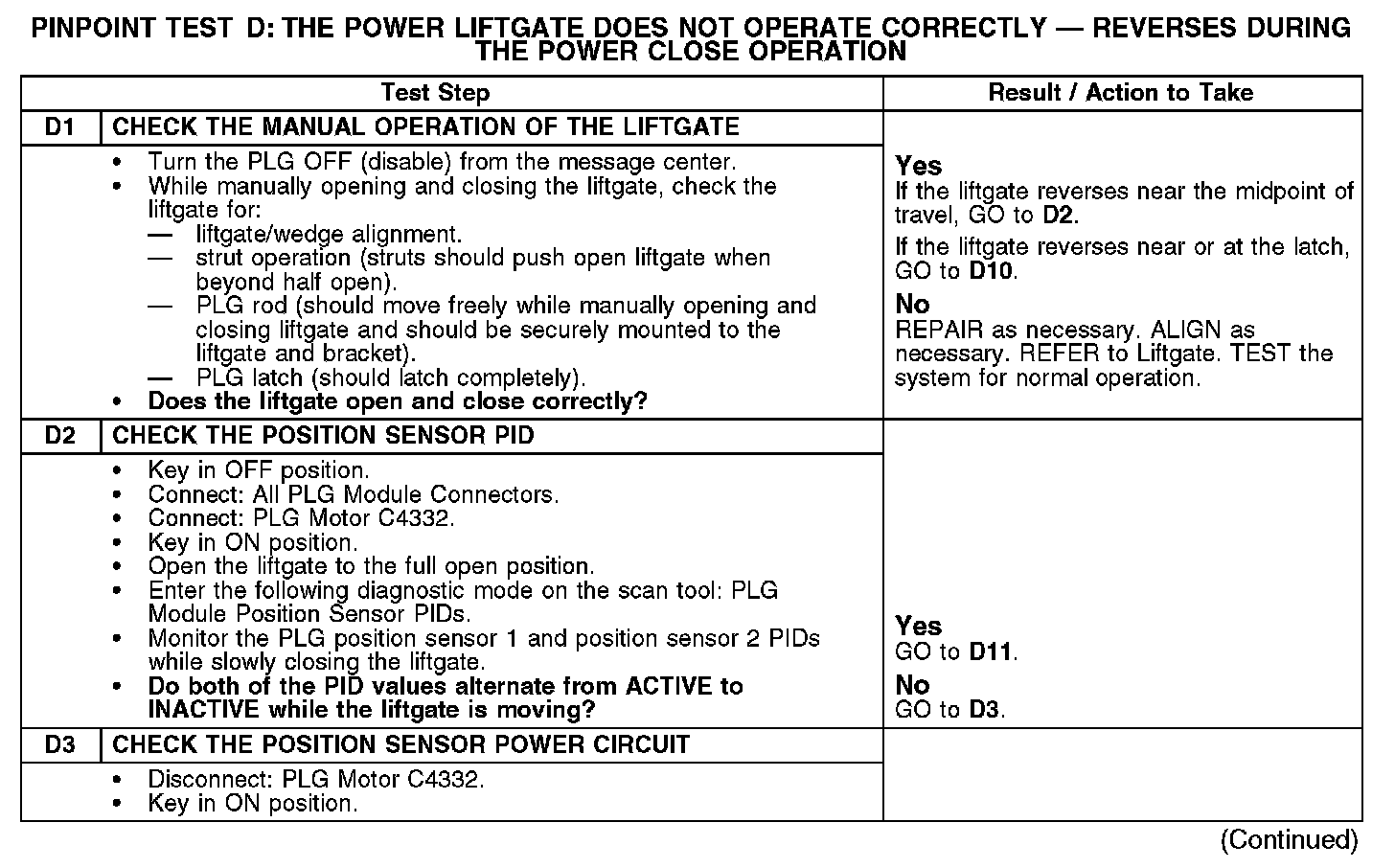

D1-D3:

D3-D5:

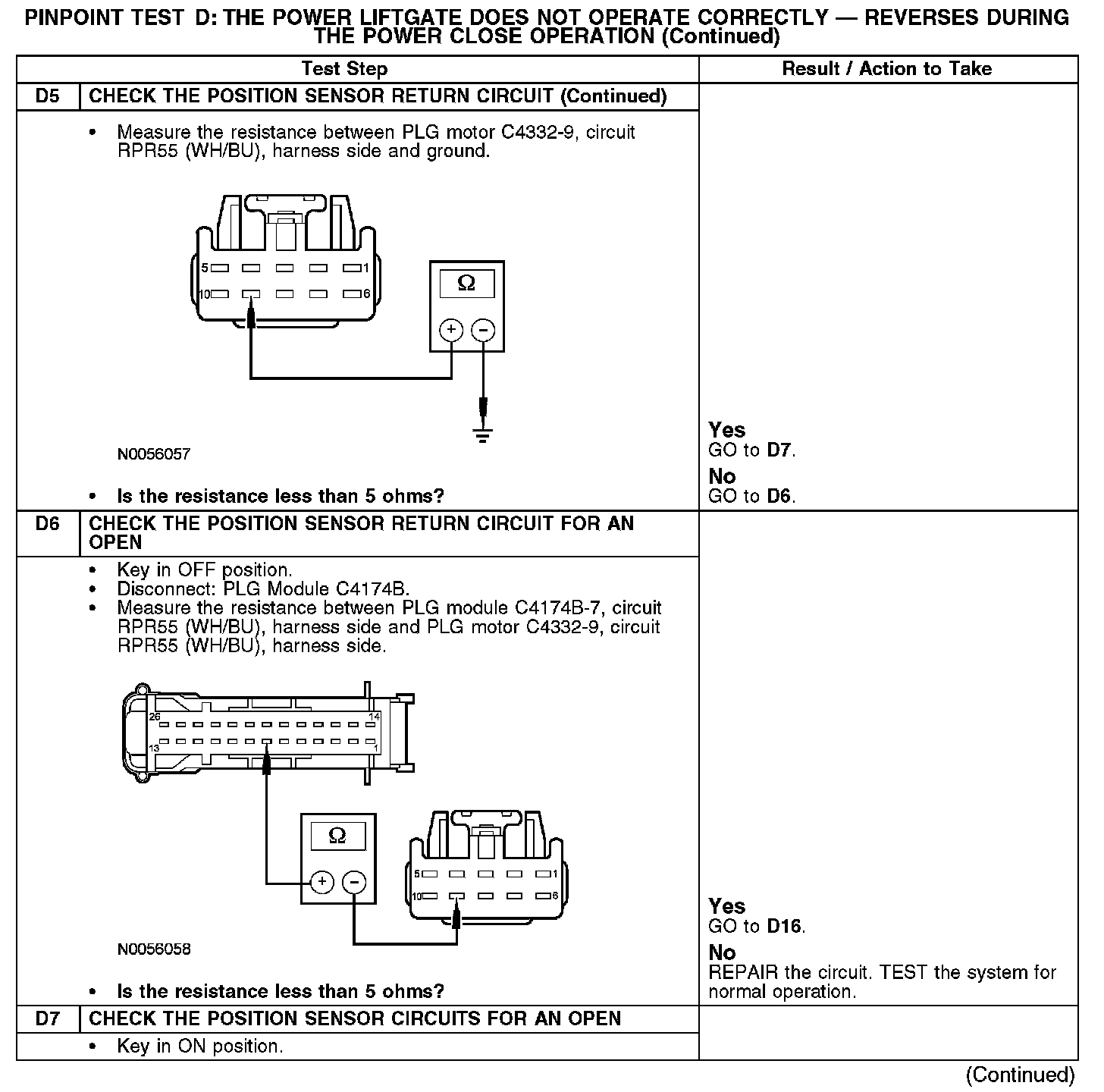

D5-D7:

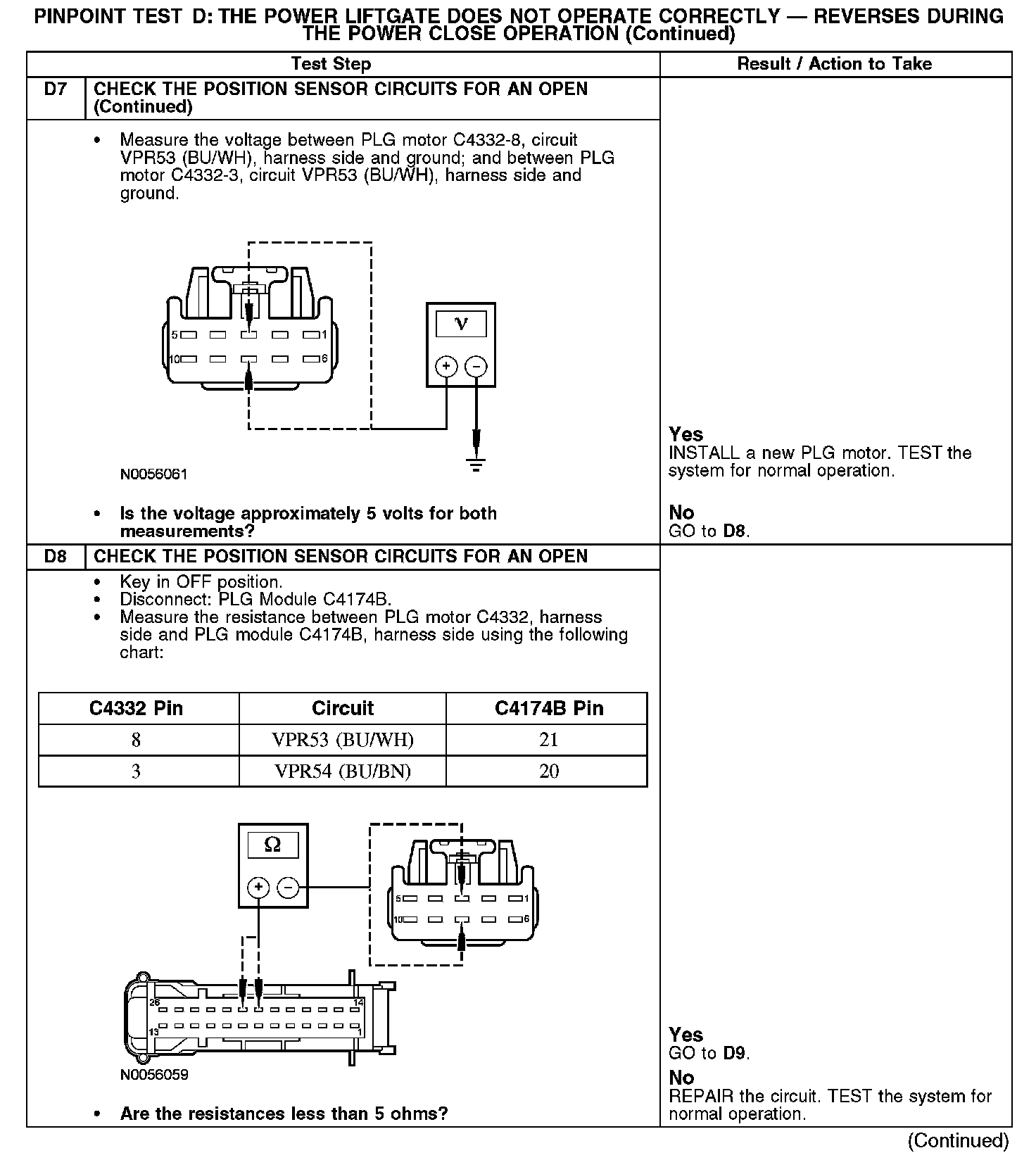

D7-D8:

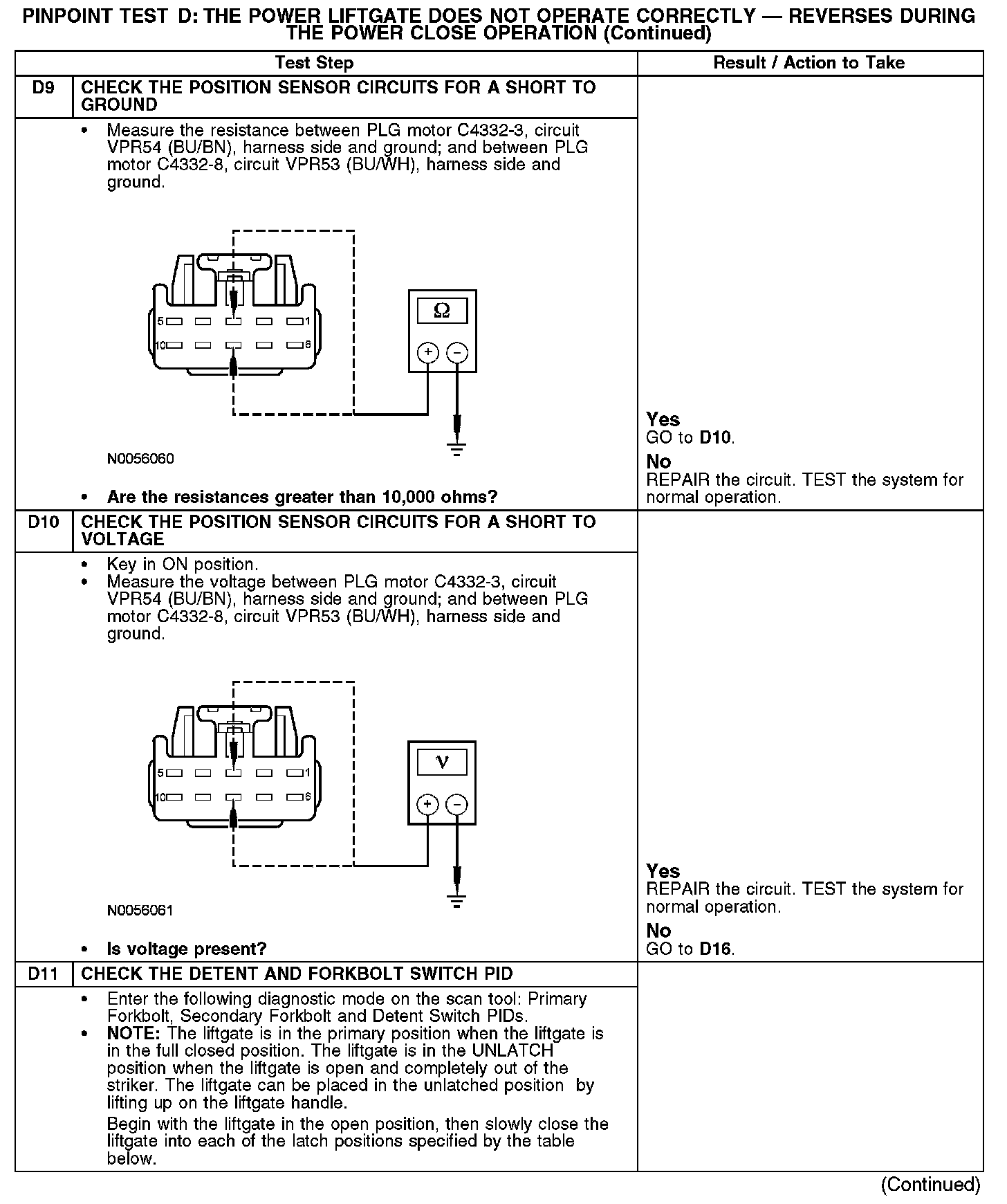

D9-D11:

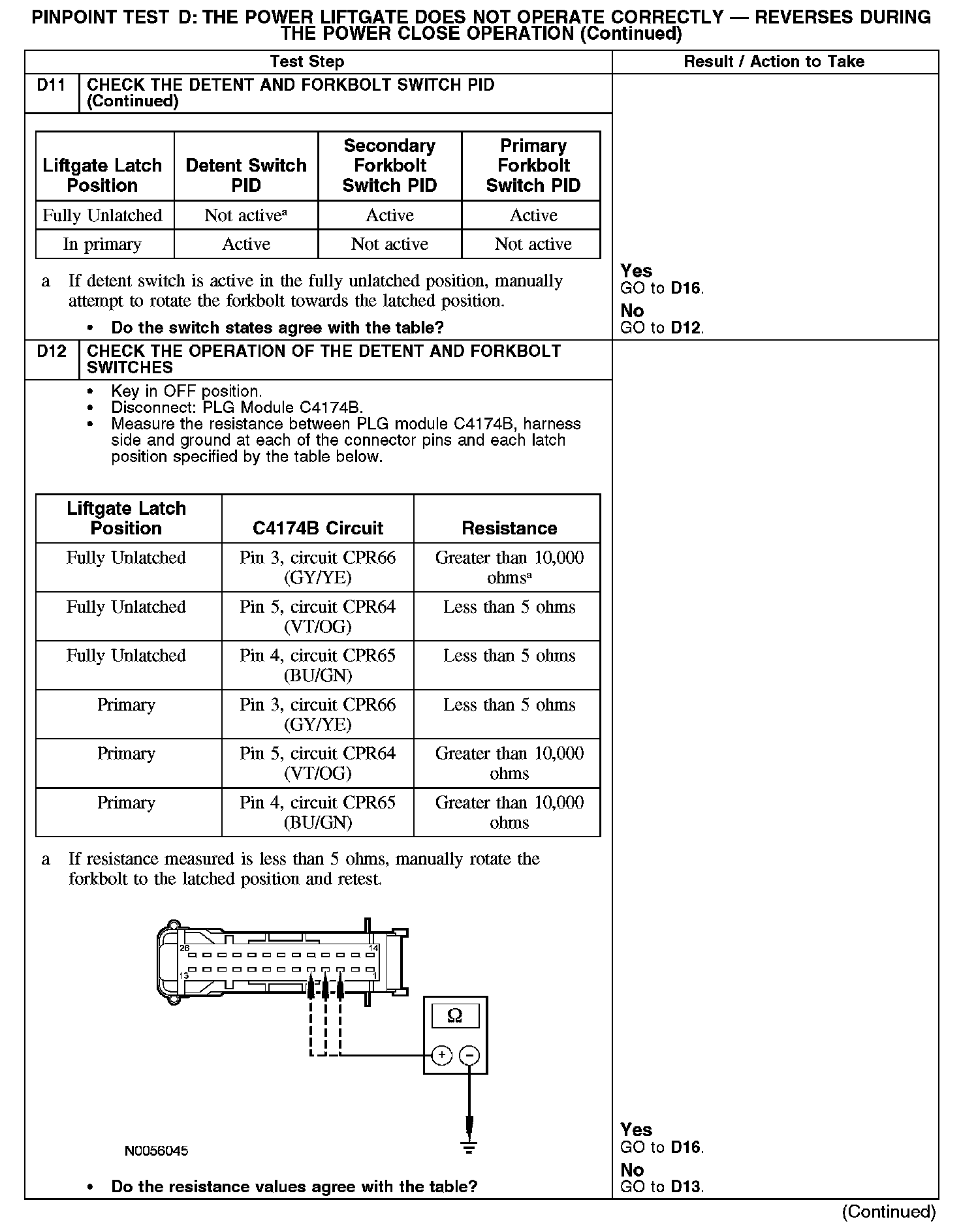

D11-D12:

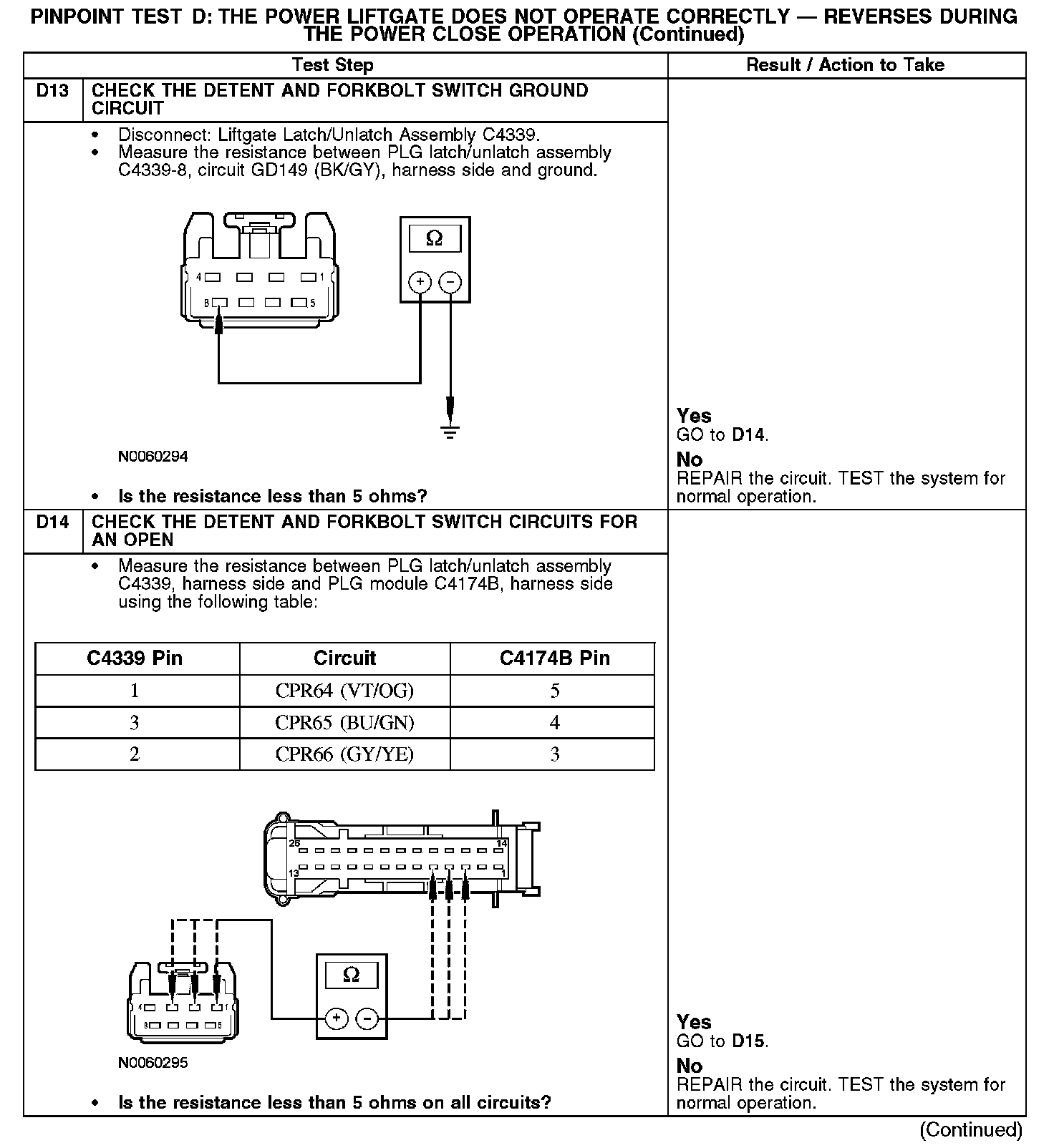

D13-D14:

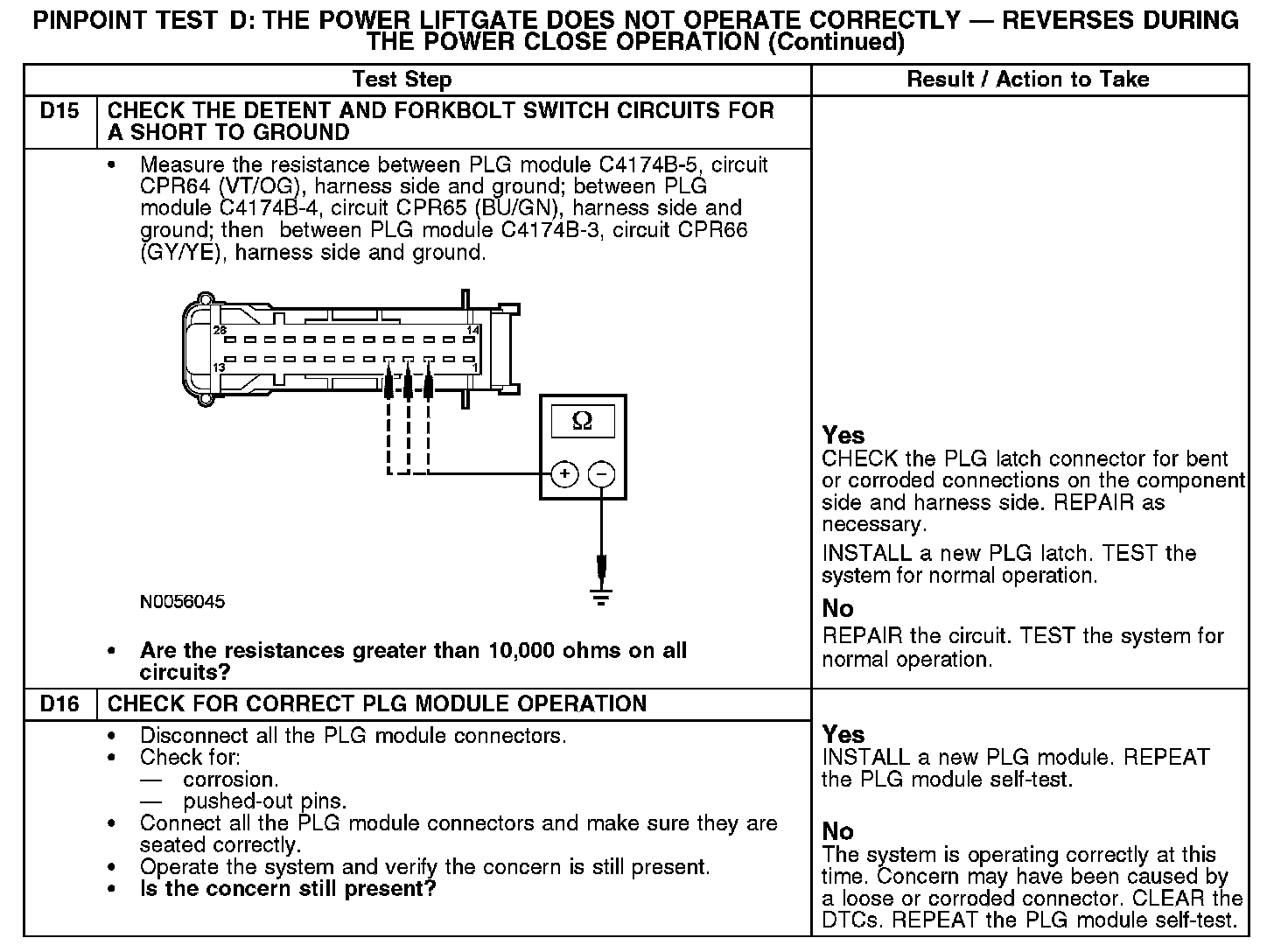

D15-D16:

Normal Operation
When the power liftgate (PLG) moves in the close direction, the PLG module monitors the pinch strips and position sensor for obstacle detection. The PLG module uses a 5-volt reference signal on circuit CPR52 (YE/VT) and a return signal on circuit RPR52 (VT/GY) for the left pinch strip. The PLG module uses a 5-volt reference signal on circuit CPR51 (YE/OG) and a return signal on circuit RPR52 (VT/GY) for the right pinch strip. The right and left pinch strip return signal circuits are spliced together.

Possible Causes
- PLG module diagnostic trouble code (DTC) B107D obstacle detected while closing
- PLG module DTC B2419 sensor 1 invalid
- PLG module DTC B2420 sensor 2 invalid
- Open, short to power or short to ground in circuit VPR54 (BU/BN) or VPR53 (BU/WH)
- Open or short to ground in circuit CPR55 (GN/BU)
- Mechanical binding
- PLG latch striker alignment
- PLG latch
- Position sensor
- PLG module
- Wedges
