Bumper - Front

BUMPER - EXPLODED VIEW, FRONT

Part 1:

Part 2:

BUMPER - FRONT

Removal and Installation
1. Remove the front bumper cover.

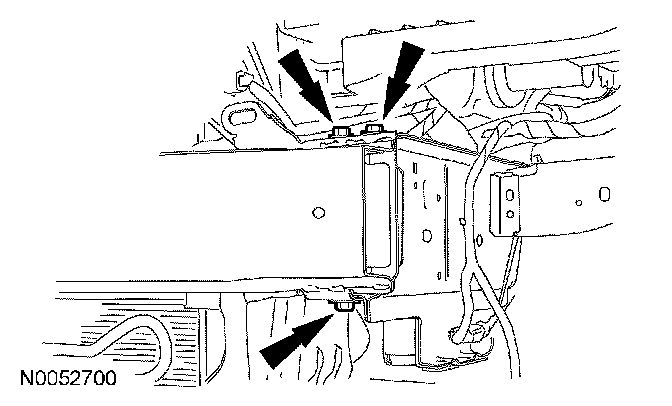

2. Remove the 6 front bumper bolts (3 each side).
- To install, tighten to 67 Nm (49 lb-ft).

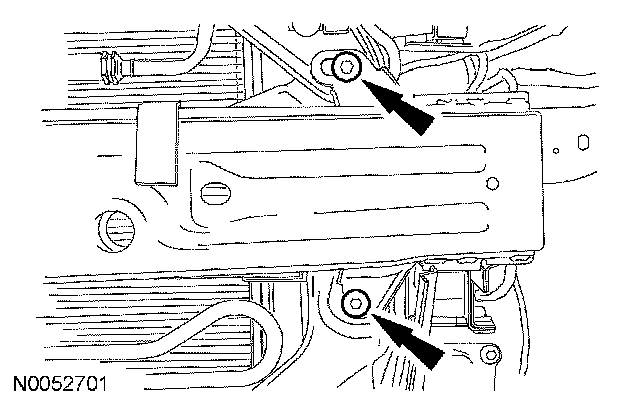

3. Remove the 4 upper and lower bumper-to-radiator support bolts (2 each side).
- To install, tighten to 9 Nm (80 lb-in).

4. Remove the front bumper.
5. To install, reverse the removal procedure.
