Pinpoint Tests

PINPOINT TEST A: THE UNIVERSAL TRANSMITTER IS INOPERATIVE

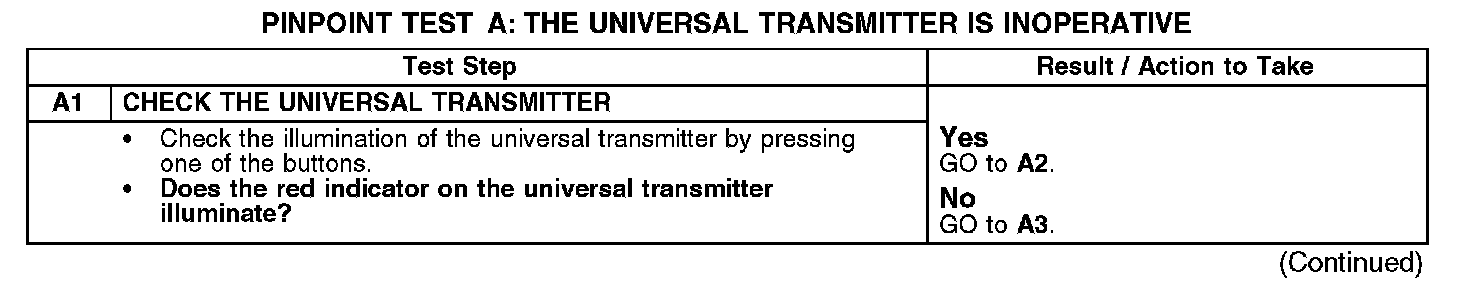

A1:

A2-A4:

Normal Operation
The universal transmitter receives voltage on circuit CLN09 (YE/GN) and is grounded through circuit GD133 (BK).

Possible Causes
- Circuitry
- Universal transmitter
- Receiver unit
