Connector Circuit Reference

Connector Circuit Reference

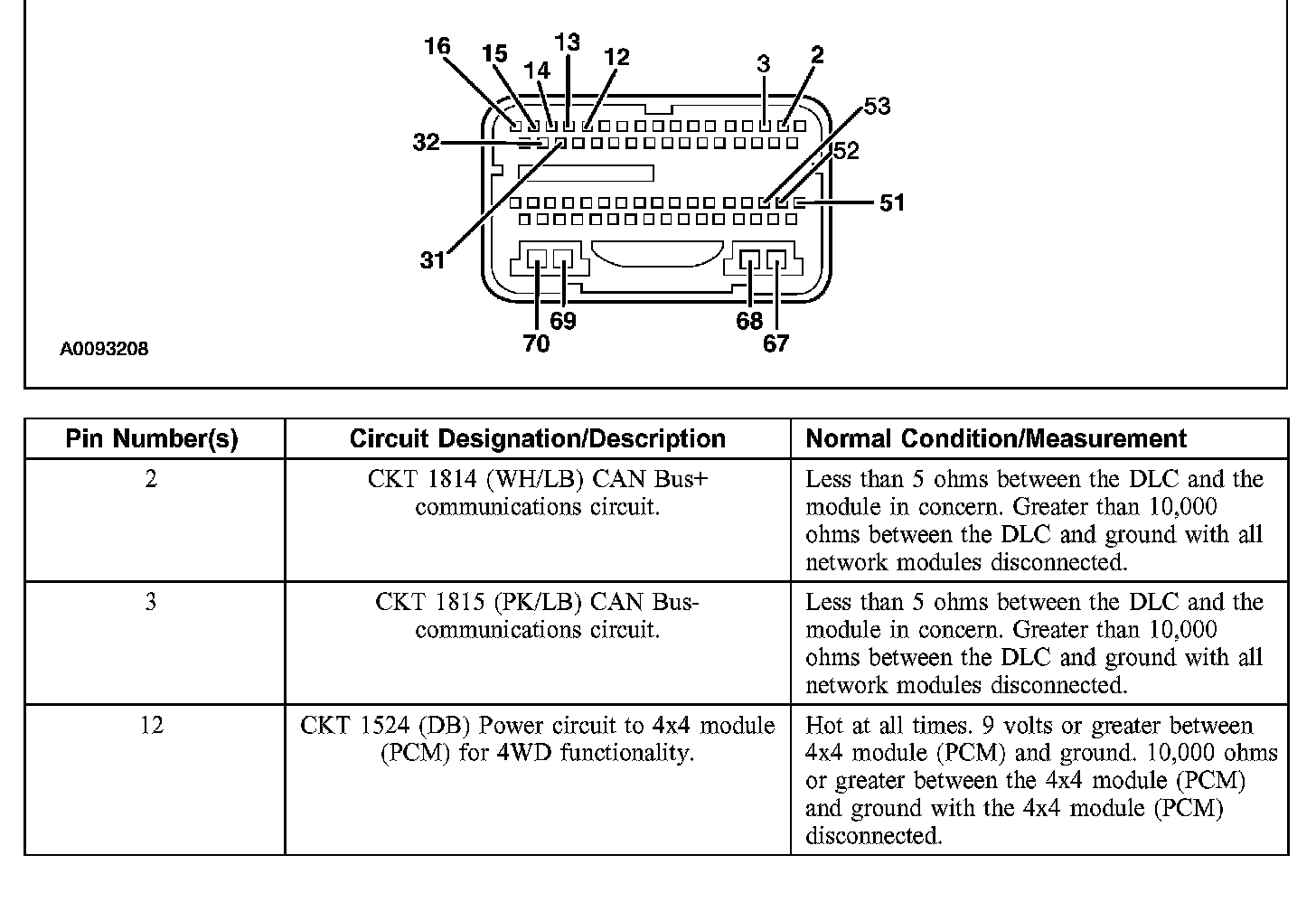

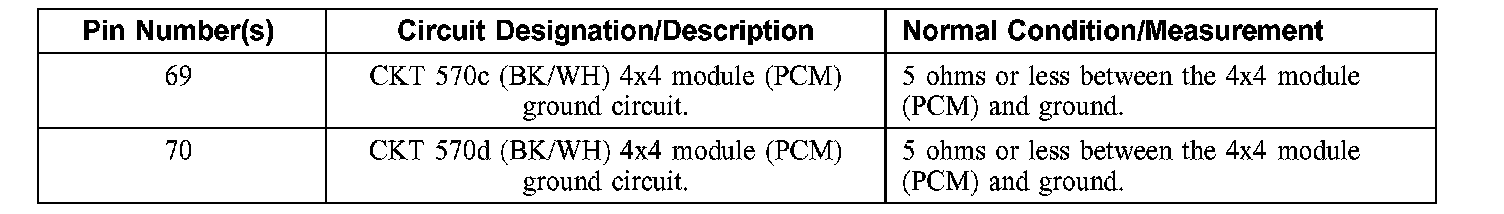

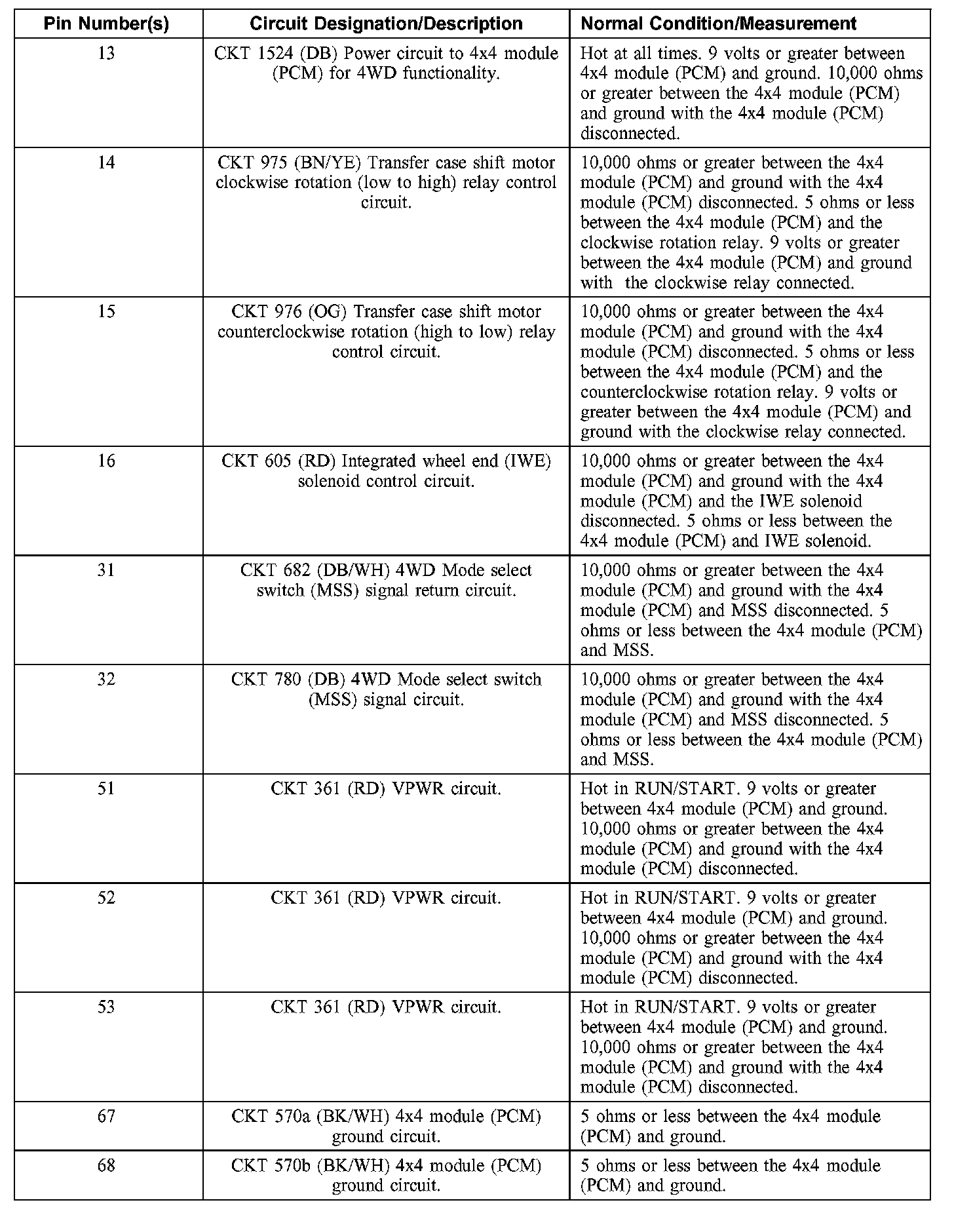

4x4 Module (PCM) C175b (Body)

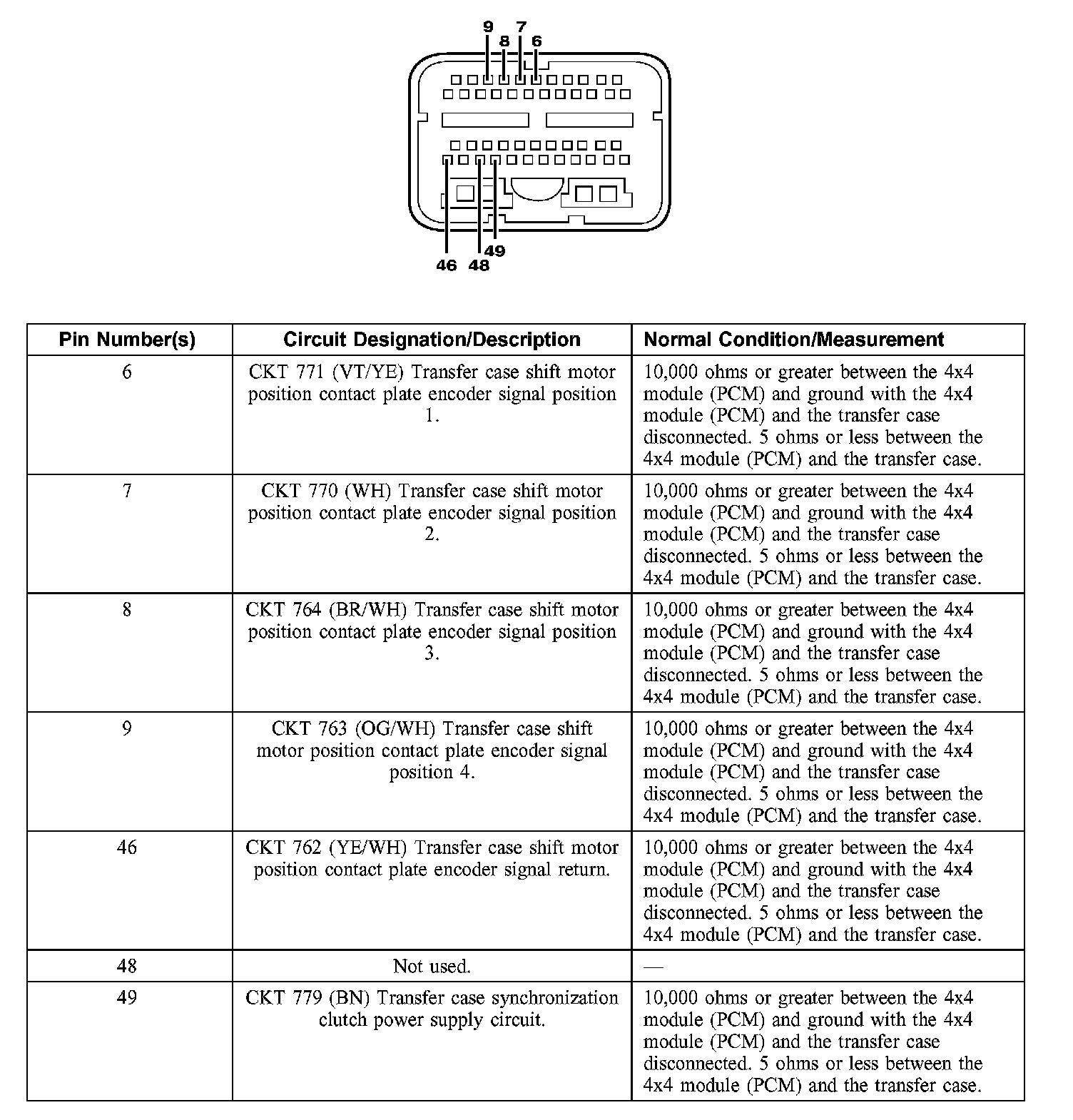

4x4 Module (PCM) C175t (Transmission)

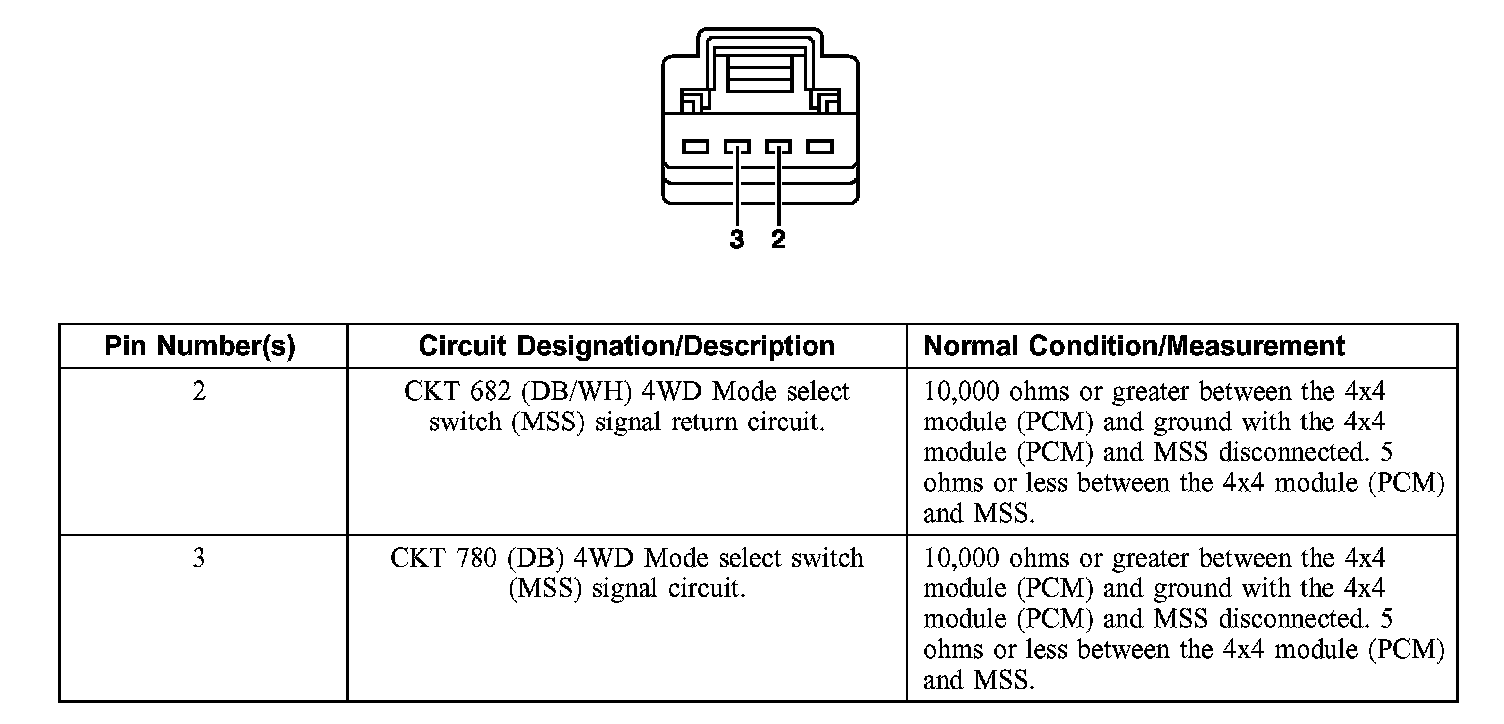

Mode Select Switch (MSS) C284

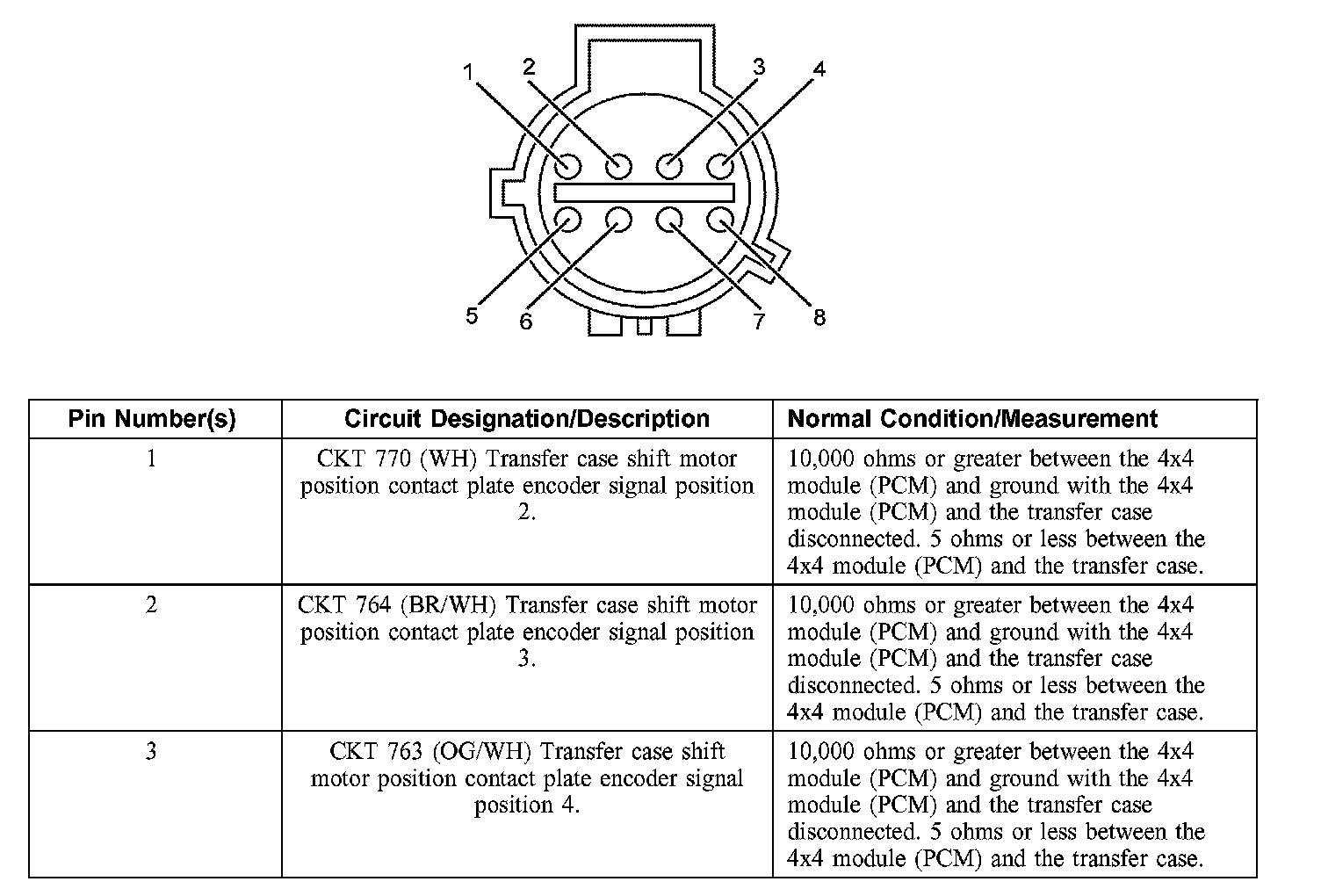

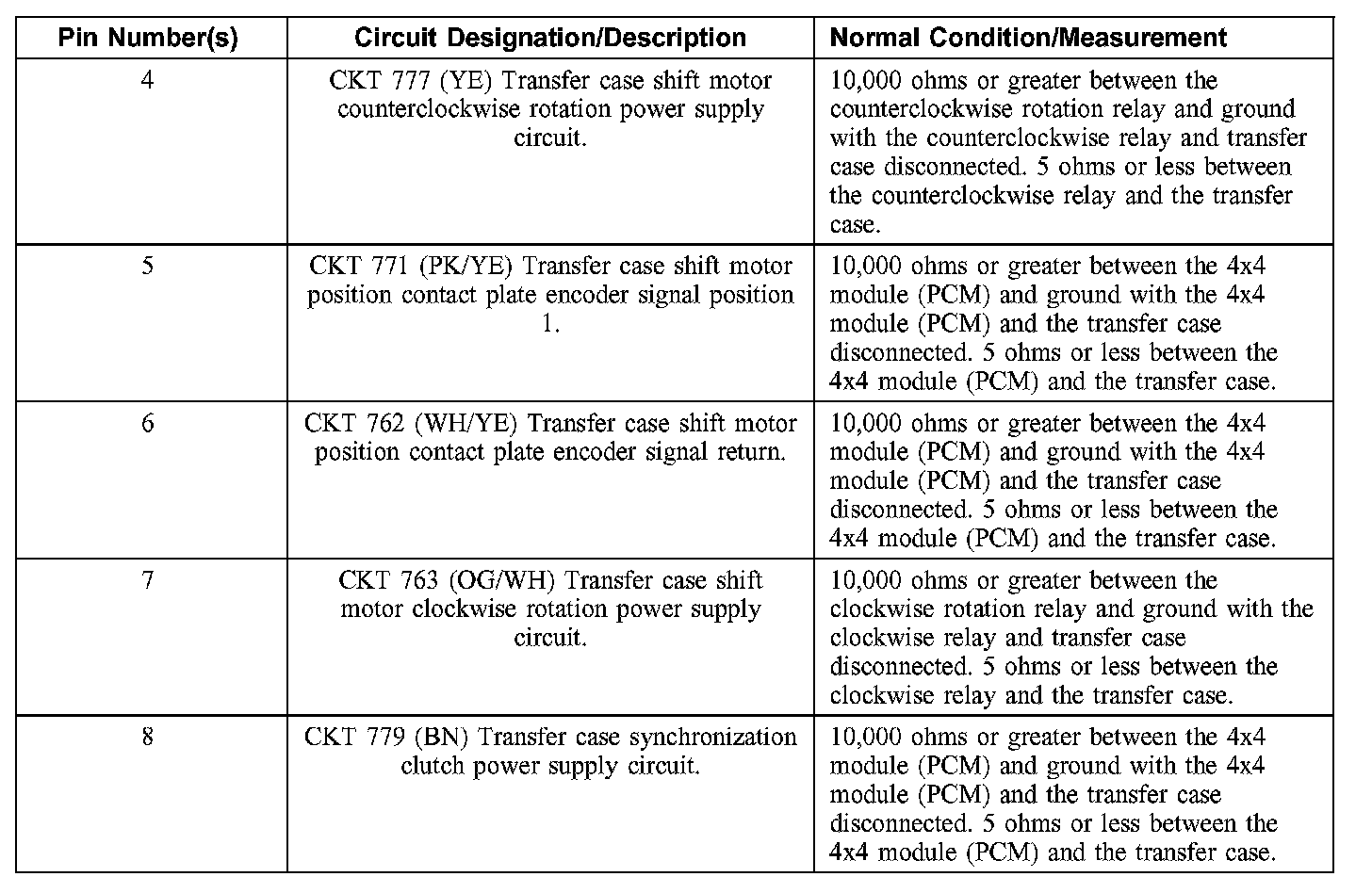

Transfer Case C350

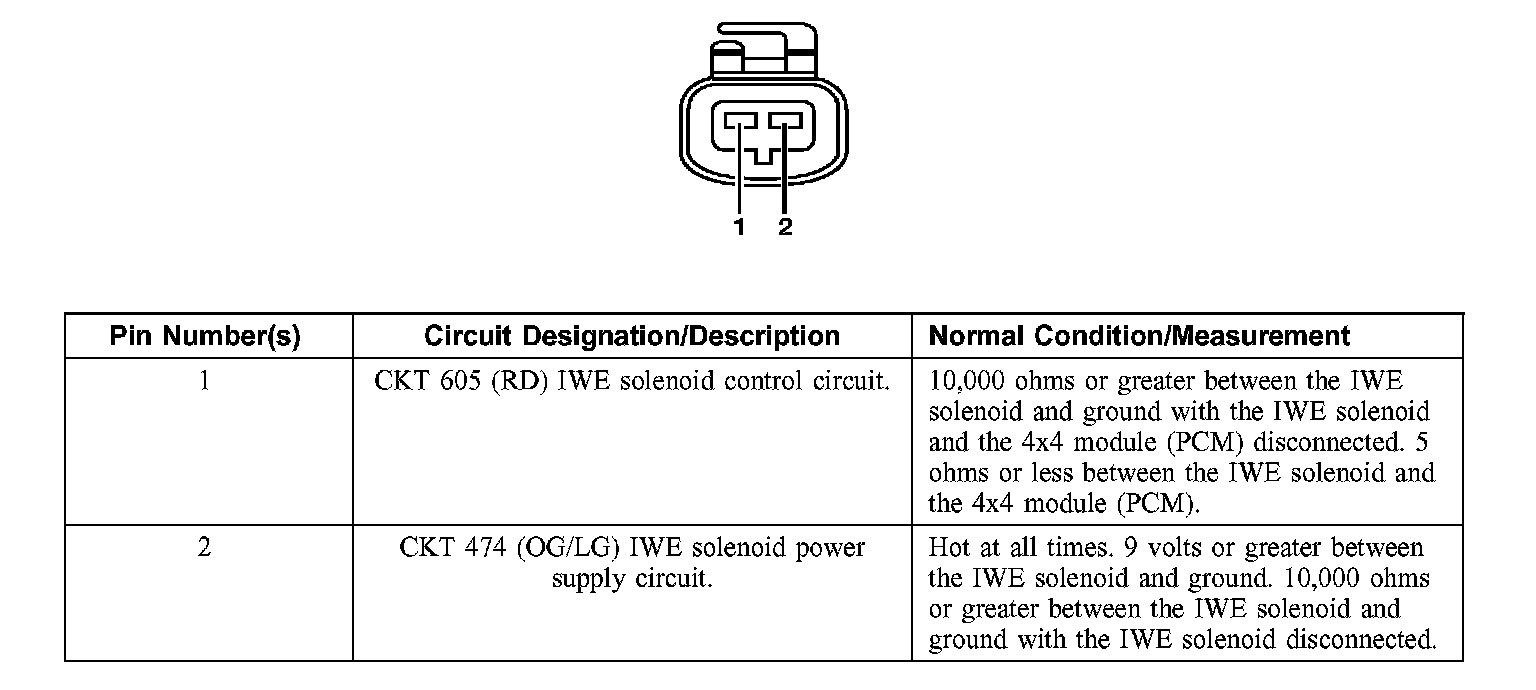

Integrated Wheel End (IWE) Solenoid C1157

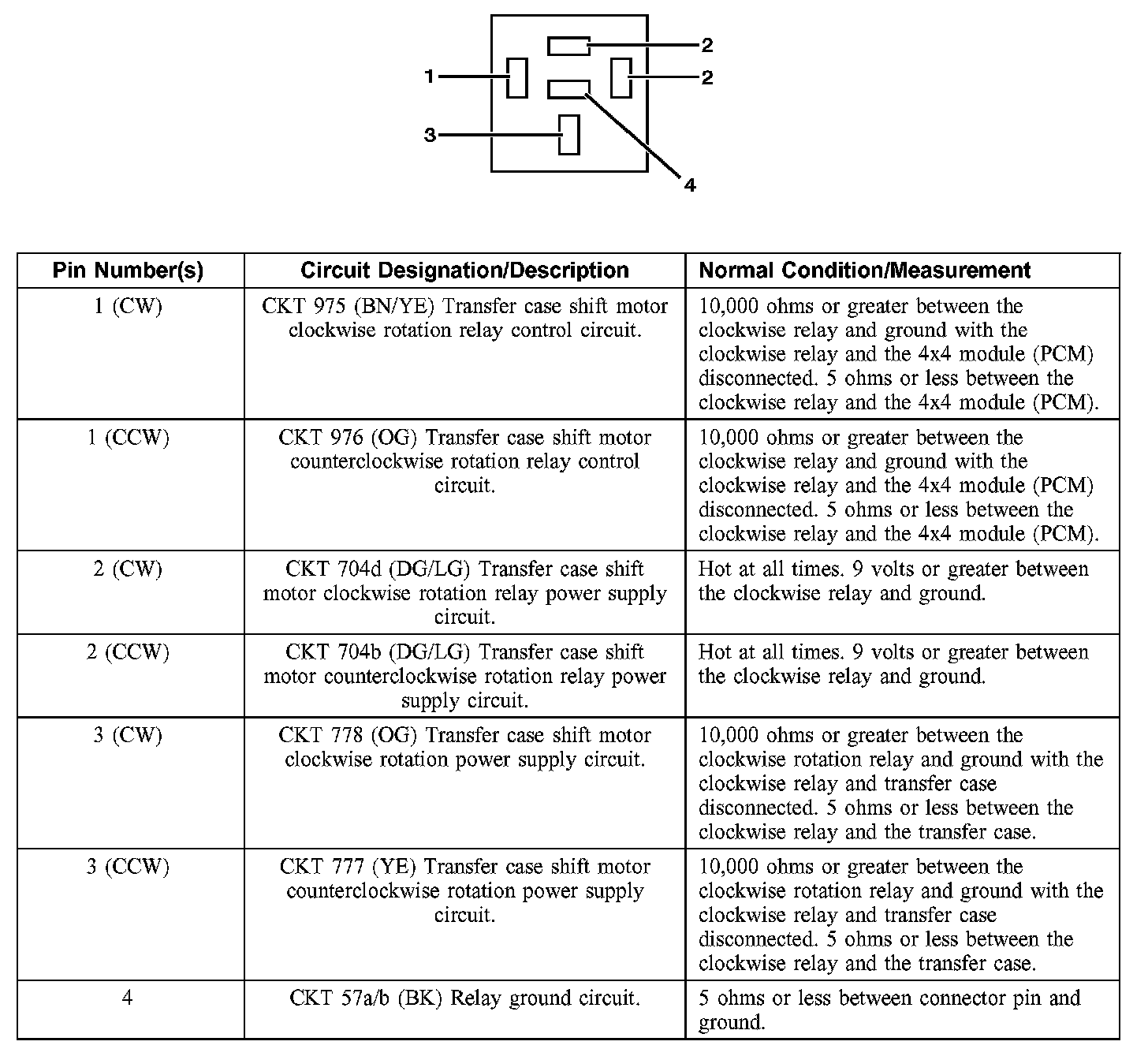

Shift Motor Clockwise Rotation Relay/Shift Motor Counterclockwise Rotation Relay
