Transmission Mount: Service and Repair

Transmission Insulator and Retainer

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

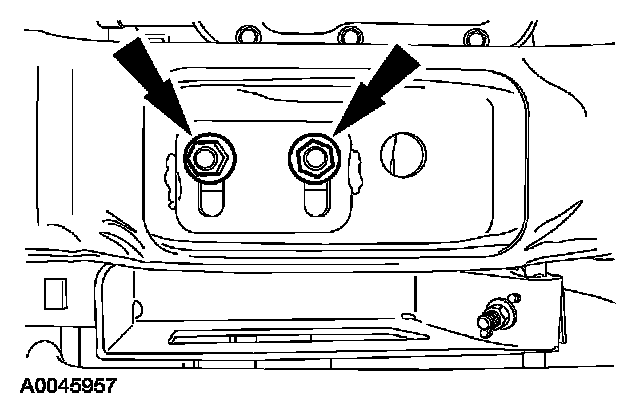

2. Remove the rear transmission support nuts.
3. Install a suitable transmission jack.





4. Slightly raise the rear of the transmission and remove the bolts. Remove the rear transmission mount.

Installation

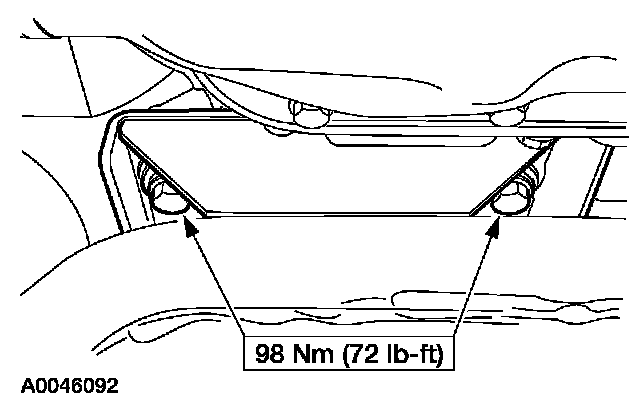

1. Install the rear transmission mount and the bolts.

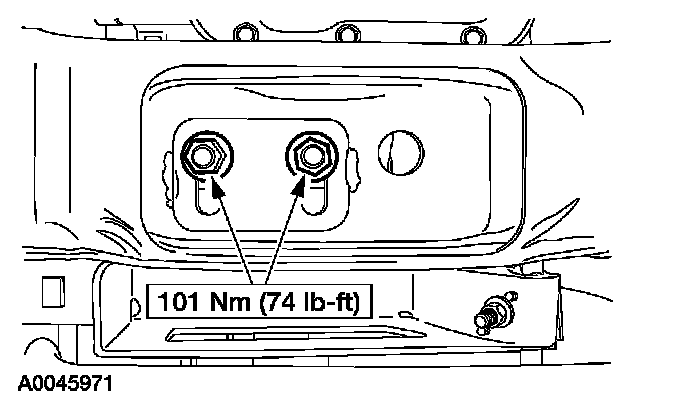

2. Lower the transmission onto the crossmember and install the nuts.
