Initial Inspection - External Controls - Column Shift

External Controls Column Shift

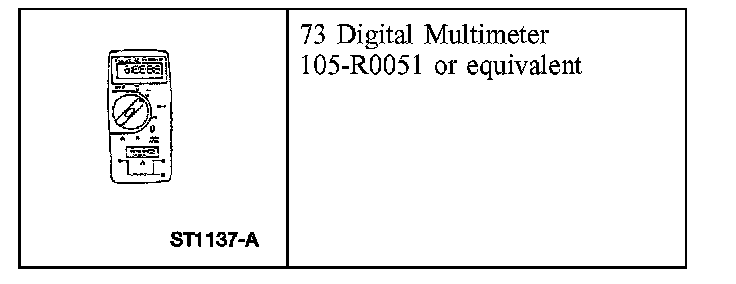

Special Tool(s)

Inspection and Verification
1. Verify the customer concern by operating the transmission external control.
2. Visually inspect for obvious signs of mechanical and electrical damage; refer to the following chart:

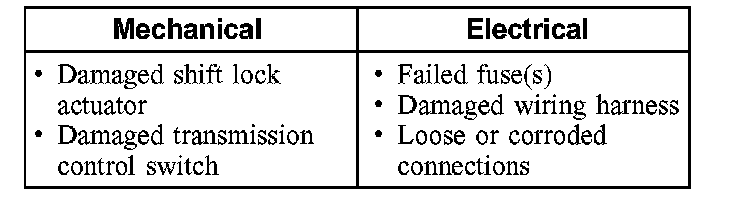

Visual Inspection Chart

3. If the fault is not visually evident, determine the symptom. GO to Symptom Chart. Diagnosis By Symptom - External Controls - Column Shift
