Shift Indicator - A/T: Service and Repair

SELECTOR LEVER INDICATOR BULB

Removal and Installation

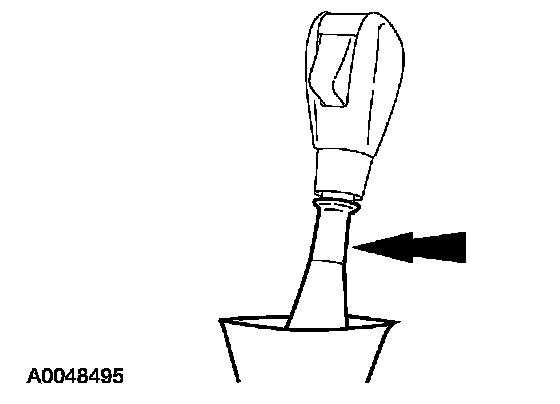

1. Push down the selector lever boot.

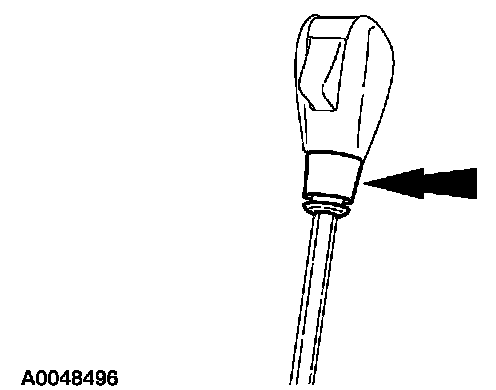

2. Push down the selector lever collar.

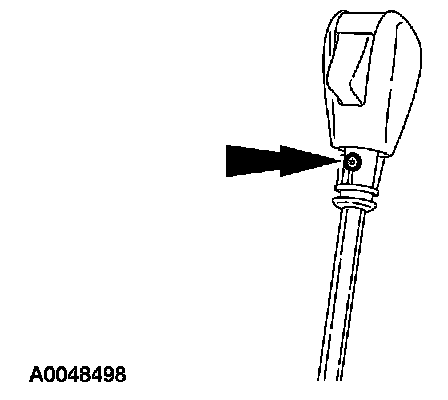

3. Remove the selector lever knob screw.
- Remove the selector lever knob.

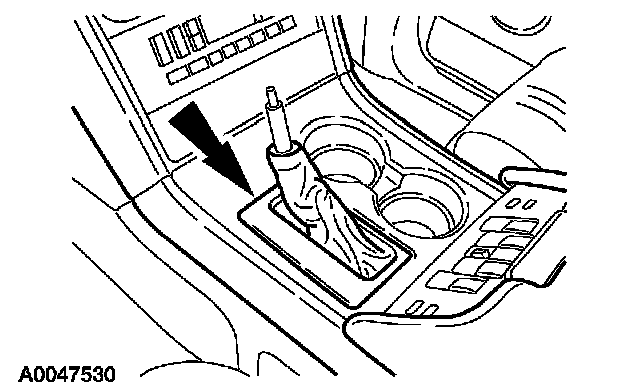

4. Detach the selector lever indicator bezel.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
