Lincoln Truck
>>
2005
>>
Navigator 4WD V8-5.4L SOHC VIN 5
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>
Starter Motor Relay

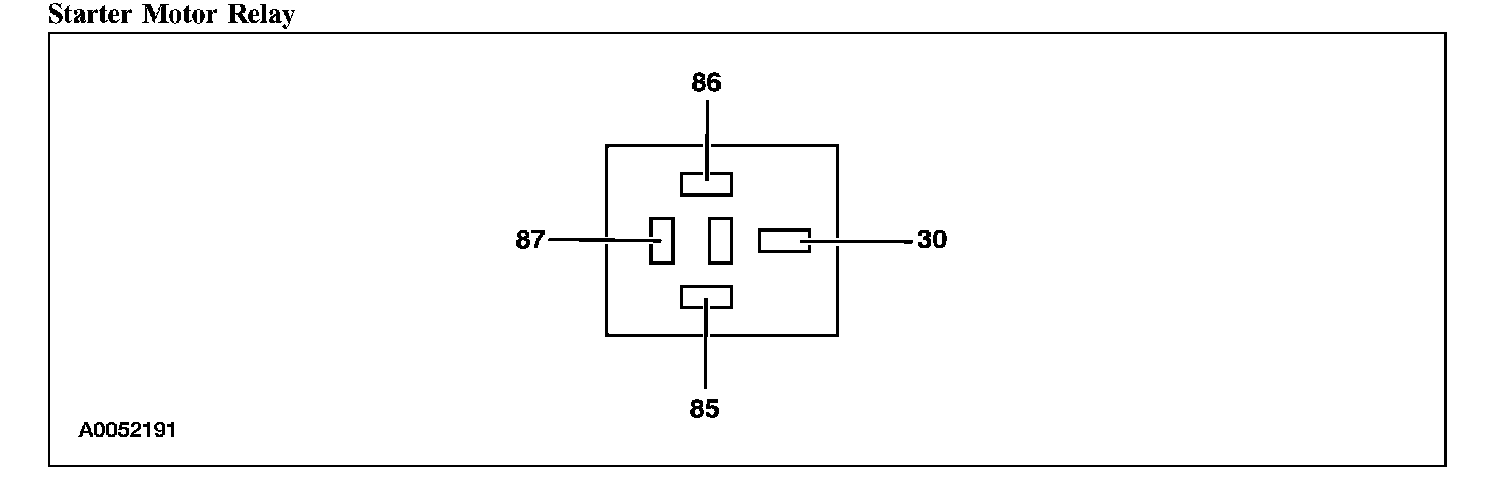

Starter Motor Relay

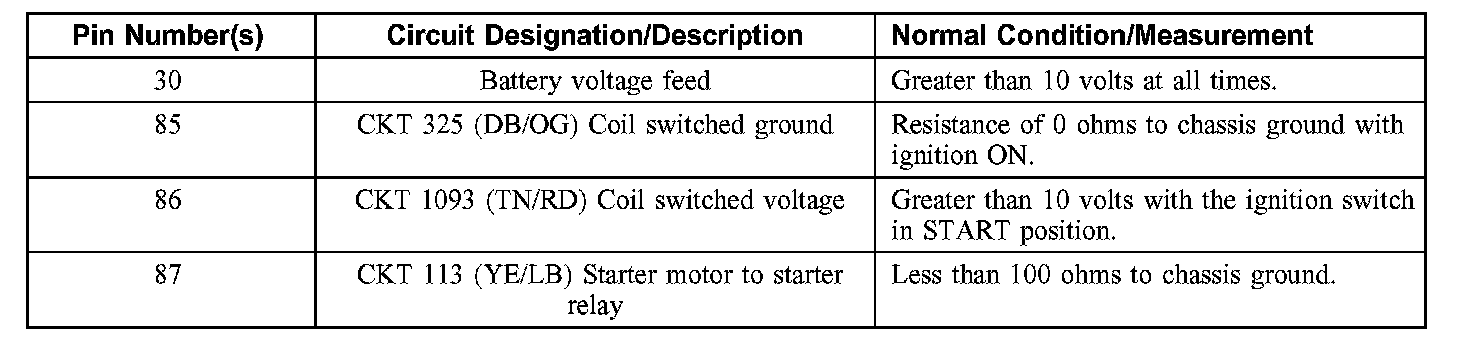

Starter Motor Relay (Part 1):
Starter Motor Relay (Part 2):
