Child Seat Tether Attachment: Service and Repair

CHILD SAFETY SEAT TETHER ANCHOR

Removal and Installation

WARNING: All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), shoulder belt height adjusters (if so equipped) child safety seat tether attachments and attaching hardware should be inspected after any collision. All belt assemblies should be replaced unless a qualified technician finds the assemblies show no damage and operate correctly. Belt assemblies not in use during a collision should also be inspected and replaced if either damage or incorrect operation is noted.

1. Position the third row seat backrest down.

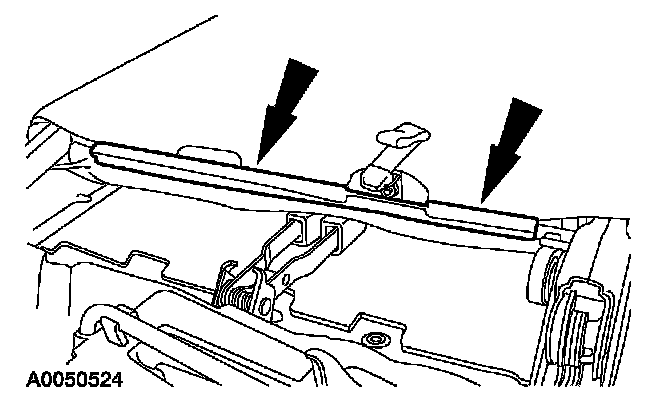

2. Release the seat back J-clips.

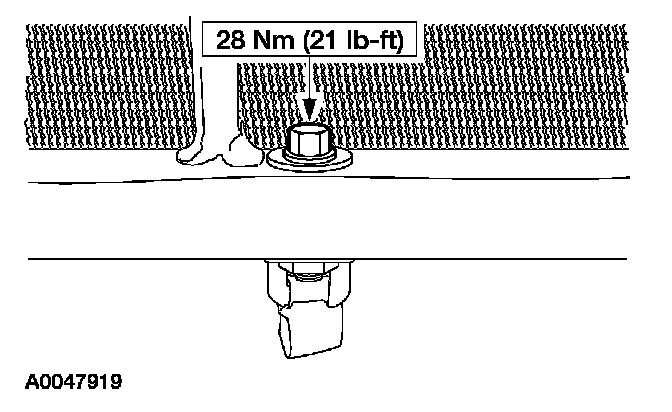

3. With the seat backrest trim cover and cushion positioned out of the way, remove the bolt and the child safety seat tether anchor.

4. WARNING: It is important that the bolt/anchor be securely tightened to specification. Otherwise, the child's safety seat may not be correctly secured, and the child could be injured in case of a sudden stop or accident.

NOTE:
- Inspect the seat for damage. If the seat is found to be damaged, install new seat components.
- Make sure to tighten the bolts to specification.

To install, reverse the removal procedure.

5. Check the active restraint system for correct operation.
