Test Q: No Module/Network Communication - No Power to the Diagnostic Tool
Test Q: No Module/Network Communication - No Power to the Diagnostic Tool
PINPOINT TEST Q: NO MODULE/NETWORK COMMUNICATION - NO POWER TO THE DIAGNOSTIC TOOL

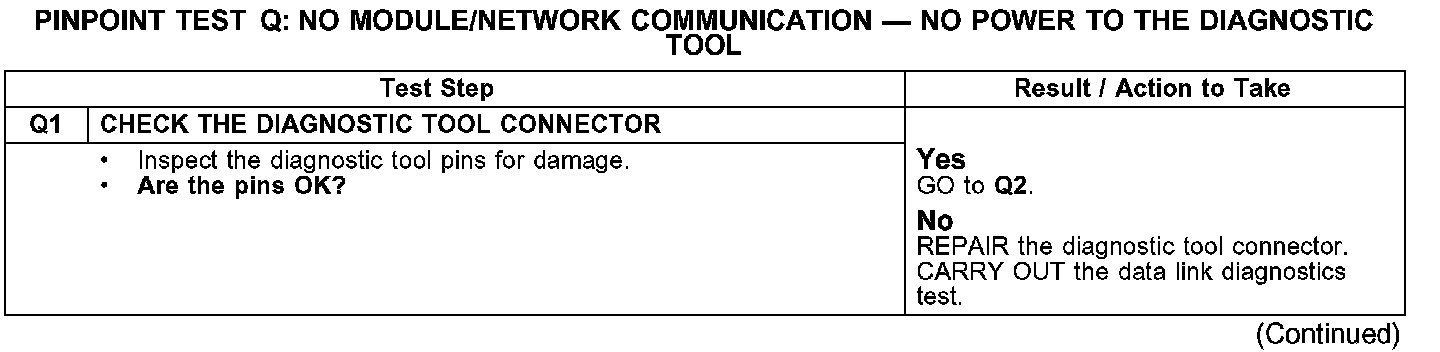

Q1:

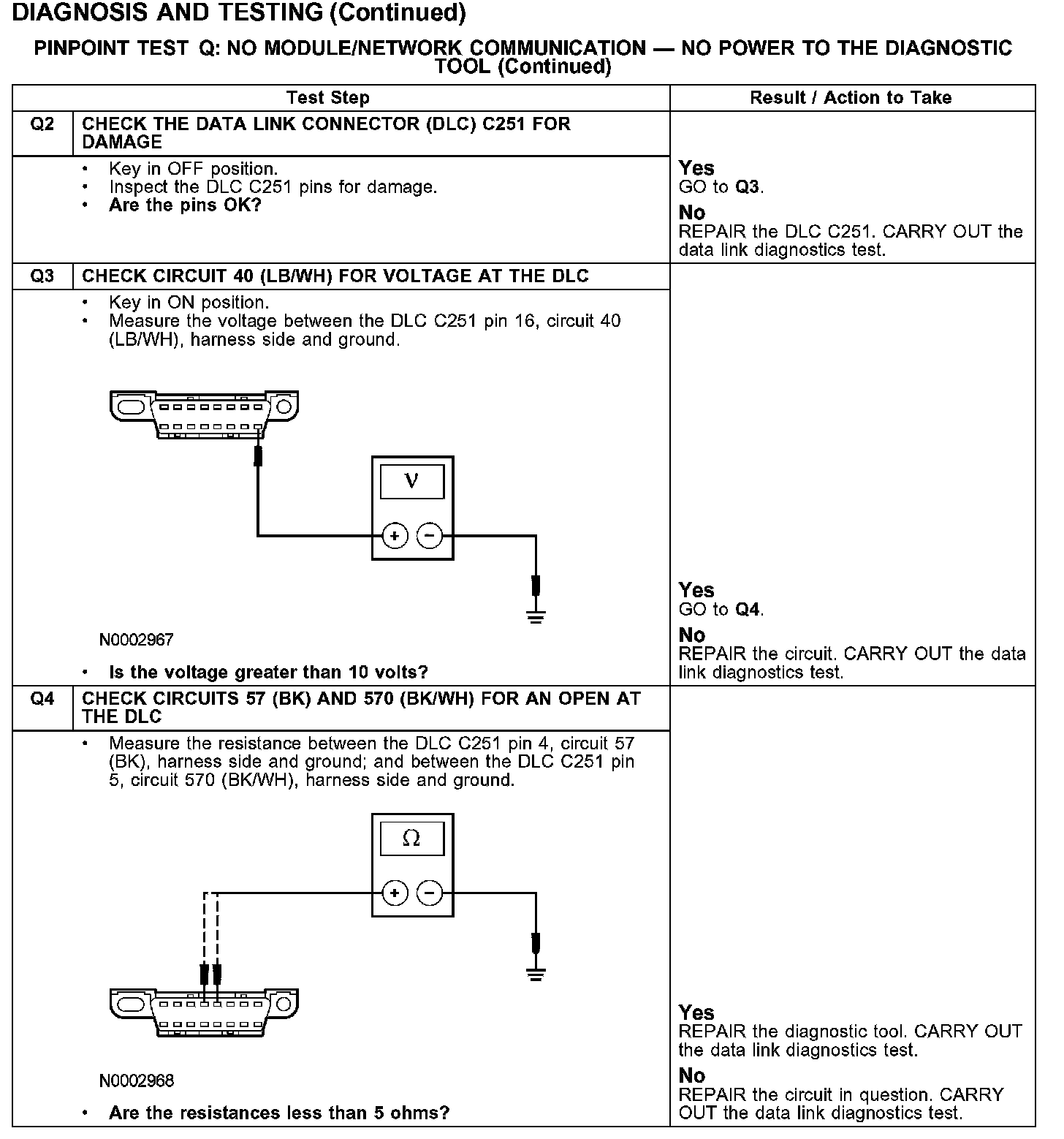

Q2-Q4:
