Dimmer Switch: Service and Repair

INSTRUMENT PANEL DIMMER SWITCH

Removal and Installation







1. NOTE: For Expedition headlamp and dimmer switch removal, refer to Lighting and Horns.

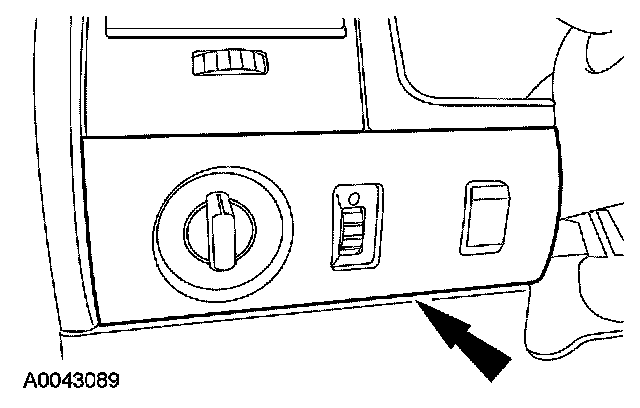

Remove the instrument panel finish panel.
- Disconnect the electrical connectors.

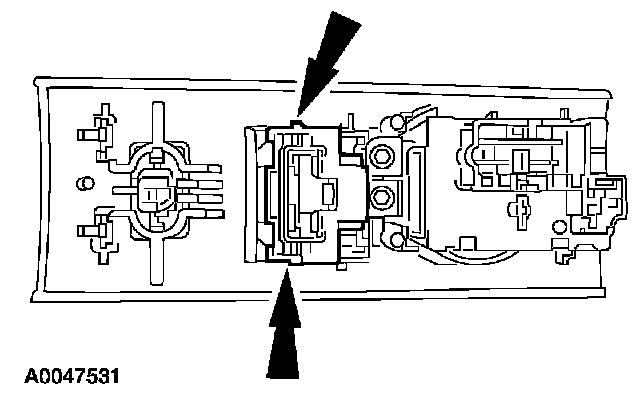

2. Depress the tabs and remove the instrument panel dimmer switch.
3. To install, reverse the removal procedure.
