Approach Lamp

APPROACH LAMP

Removal and Installation

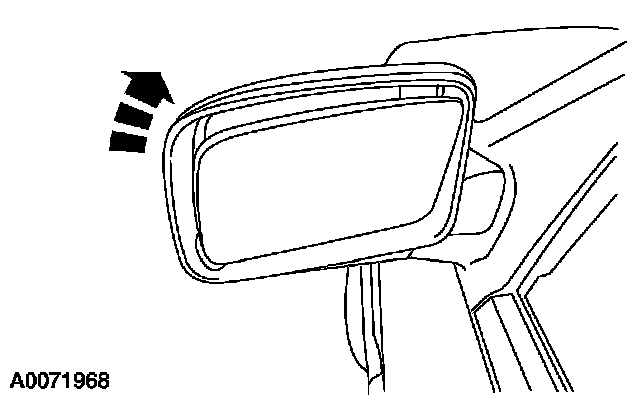

1. Fold the mirror assembly forward.







2. Remove the Torx(R)-head screw.

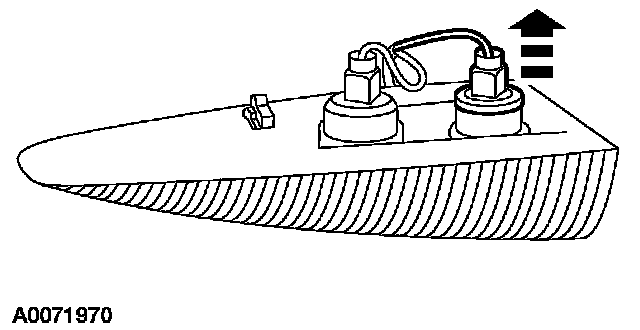

3. Remove the approach lamp connector from the turn signal assembly.

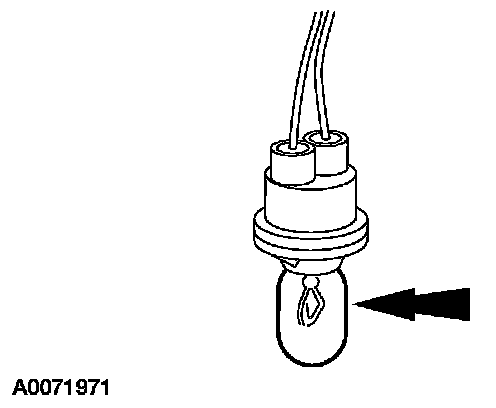

4. Remove the approach lamp bulb.
5. To install, reverse the removal procedure.
