In-Vehicle Temperature Sensor

IN-VEHICLE TEMPERATURE SENSOR

Removal and Installation

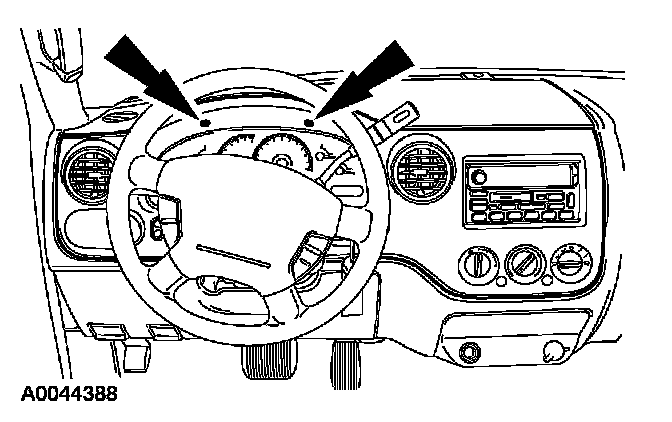

1. Remove the screws and the instrument cluster finish panel.
- Disconnect the electrical connectors.

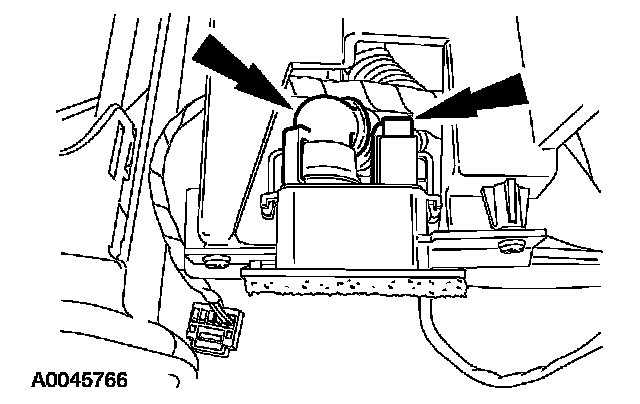

2. Disconnect the aspirator hose and the in-vehicle temperature sensor electrical connector.

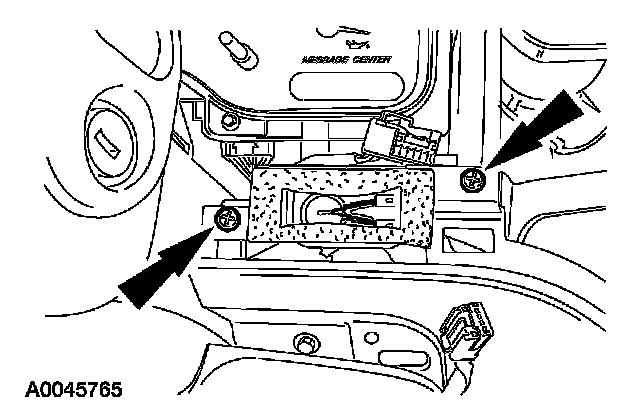

3. Remove the screws and the in-vehicle temperature sensor.
4. To install, reverse the removal procedure.
