Front Seat Track Motor

FRONT SEAT TRACK MOTOR

Removal

WARNING:
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

All motors
1. Remove the 40 percent seat and depower the SRS.

Forward/Reverse motor







2. NOTE: If equipped with memory seat, disconnect the memory seat motor sensor electrical connector and remove sensor from the motor.

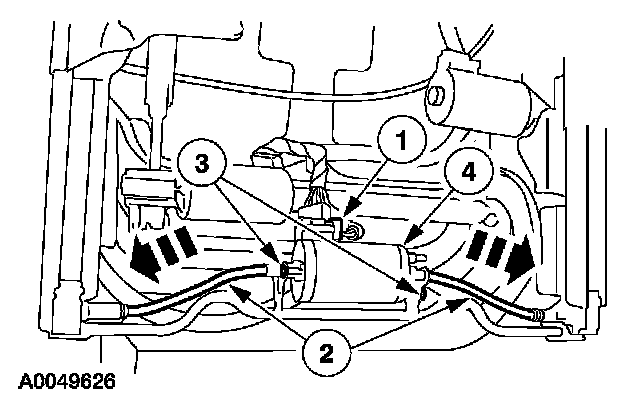

Remove the forward/reverse motor.
1 Disconnect the electrical connector.
2 Pull to release the power seat drive cables from the motor.
3 Remove the four screws (two shown).
4 Remove the power seat motor.

Rear height motor







3. NOTE: If equipped with memory seat, disconnect the memory seat motor sensor electrical connector and remove sensor from the motor.

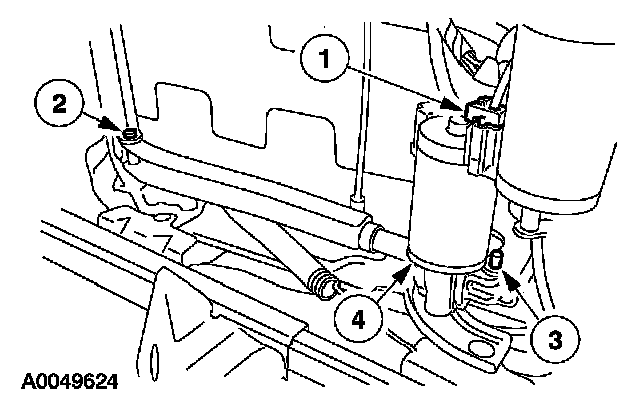

Remove the rear height motor.
1 Disconnect the rear height motor electrical connector.
2 Remove the roll pin.
3 Remove the bolt and nut.
4 Remove the rear height power seat motor.

Front height motor
4. If equipped, remove the temperature controlled seat fan motor.







5. NOTE: If equipped with memory seat, disconnect the memory seat motor sensor electrical connector and remove sensor from the motor.

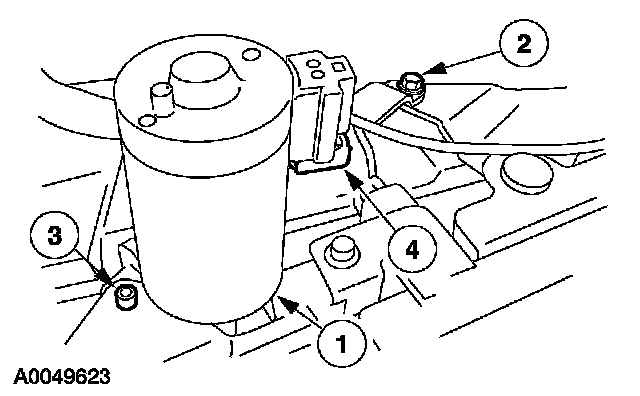

Remove the front height motor.
1 Disconnect the front height motor electrical connector.
2 Remove the roll pin.
3 Remove the roll pin.
4 Remove the front height power seat motor.

Installation

Front height motor







1. NOTE: If equipped with memory seat, install the sensor to the motor and connect the memory seat motor sensor electrical connector.

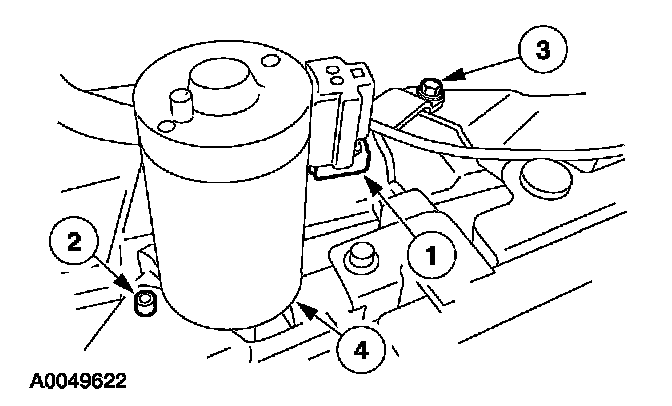

Install the front height motor.
1 Install the front height motor.
2 Install the roll pin.
3 Install the roll pin.
4 Connect the front height motor electrical connector.

2. If equipped, install the temperature controlled seat fan motor.

Rear height motor







3. NOTE: If equipped with memory seat, install sensor to the motor and connect the memory seat motor sensor electrical connector.

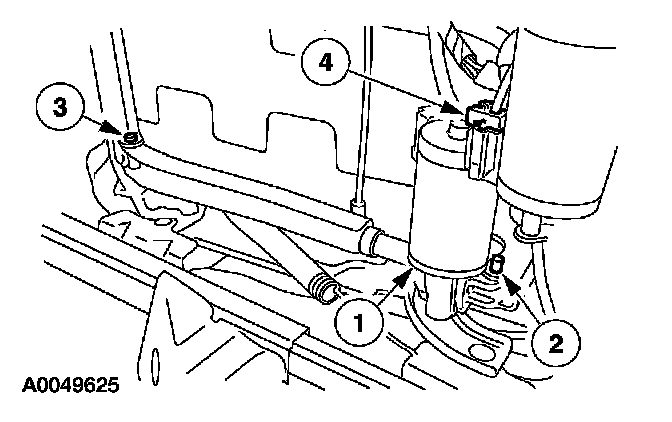

Install the rear height motor.
1 Install the rear power seat motor.
2 Install the bolt and nut.
3 Install the roll pin.
4 Connect the rear height motor electrical connector.

Forward/Reverse motor







4. NOTE: If equipped with memory seat, install sensor to the motor and connect the memory seat motor sensor electrical connector.

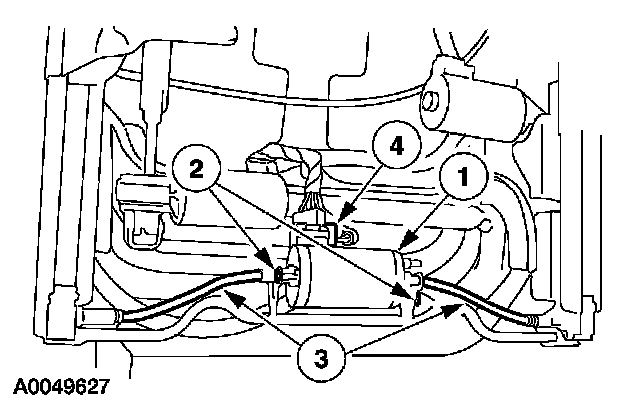

Install the forward/reverse motor.
1 Install the forward/reverse power seat motor.
2 Install the four screws (two shown).
3 Install the power seat motor cables.
4 Connect the forward/reverse motor electrical connector.

All motors
5. Install the 40 percent seat and repower the SRS.
