Exterior Mirror

EXTERIOR MIRROR

Removal and Installation

NOTE: Do not remove the exterior mirror assembly when repairing an individual part. Individual components can be installed without removing the exterior mirror.

1. Remove the front door trim panel.
2. Position aside the weather shield.

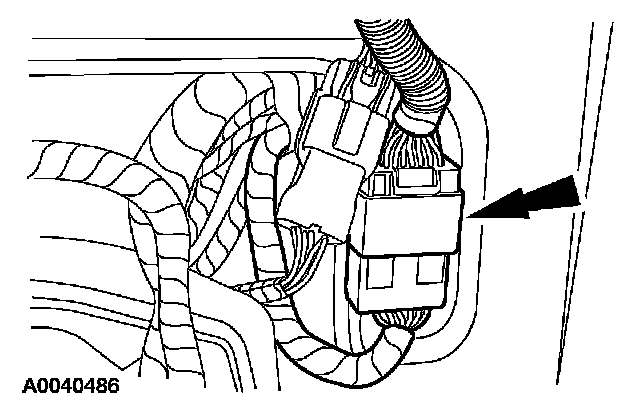

3. Disconnect the exterior mirror electrical connector.

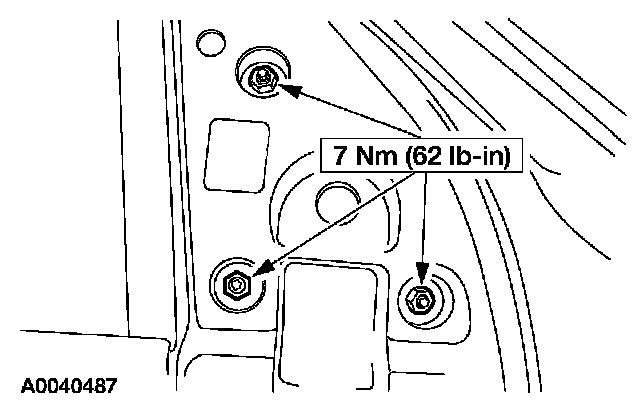

4. Remove the exterior mirror.
- Remove the nuts.

5. To install, reverse the removal procedure.
- Install top nut first.
