Liftgate Latch Remote Control

LIFTGATE LATCH REMOTE CONTROL

Removal and Installation
1. Remove the liftgate trim panel.
2. Position the watershield aside.







3. CAUTION: Be careful not to kink the liftgate latch control cable while disconnecting it from the latch.

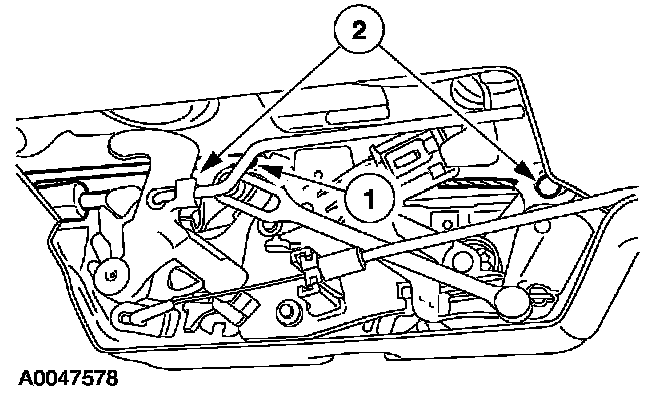

Disconnect the liftgate latch.
1 Release the actuating rod.
2 Disconnect the liftgate latch control cable.







4. Remove bolts and position the liftgate remote control aside.







5. Disconnect the electrical connectors and remove the liftgate latch remote control.
6. To install, reverse the removal procedure.
