Wiper Pivot Arm - Windshield Wiper

WIPER PIVOT ARM - WINDSHIELD WIPER

Removal

NOTE: The windshield wiper pivot arms must in the highest position to remove them.

1. Turn the ignition switch to the ON position.
2. Turn the windshield wiper on.
3. Stop the windshield wiper pivot arms at the highest position by turning the ignition switch OFF.

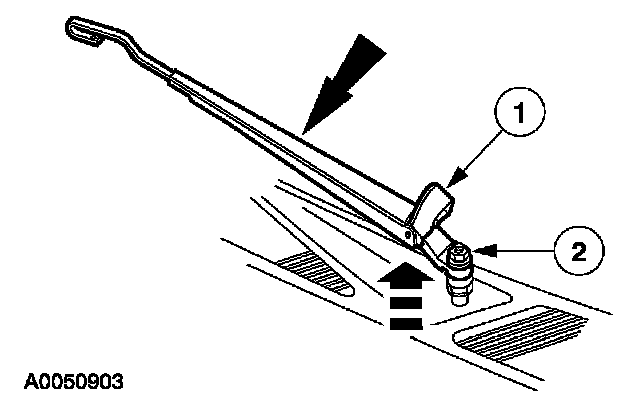

4. Remove the windshield wiper pivot arm.
1 Lift the pivot arm nut cover.
2 Remove the nut.

Installation

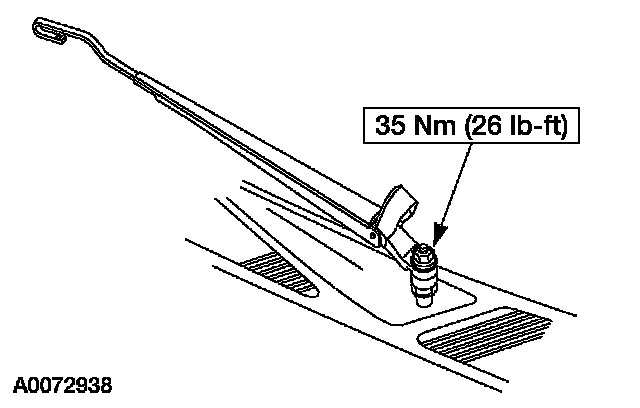

1. To install, reverse the removal procedure.
- Adjust the windshield wiper pivot arms.
