Liftgate Window Glass: Service and Repair

LIFTGATE WINDOW GLASS

Removal and Installation

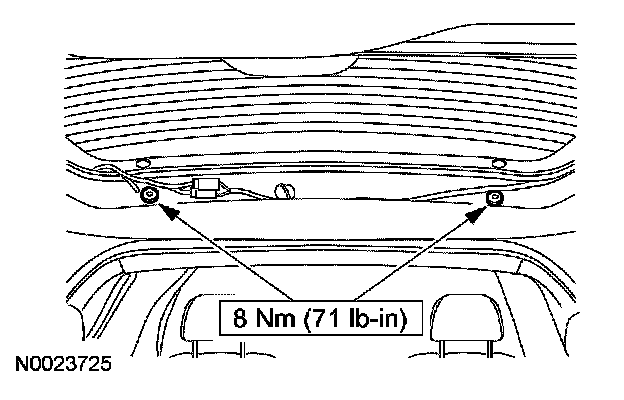

1. Remove the rear window wiper motor.

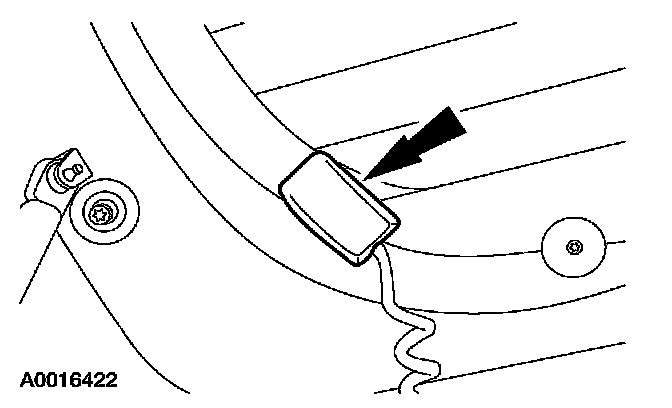

2. Disconnect the rear window defrost electrical connectors.







3. CAUTION:
- The liftgate glass must be supported when removing and installing the liftgate assist cylinders.
- Do not extend the socket clips more than 2.0 mm (0.08 in) or failure of the socket can occur

Disconnect the two liftgate glass assist cylinders.
1 Insert a screwdriver blade under the socket clip and lift.
2 Gently pull the socket off the ball stud.







4. Remove the liftgate glass hinge bolts and remove the glass.
- Apply High Strength Threadlocker to the liftgate glass hinge bolts during installation.

5. To install, reverse the removal procedure.
