Front Door Window Motor: Service and Repair

FRONT DOOR WINDOW REGULATOR MOTOR

Removal and Installation
1. Remove the front door trim panel.

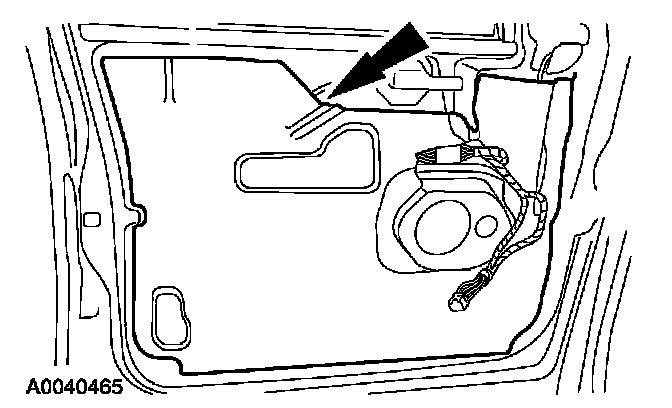

2. Position the front door weathershield aside.







3. NOTE: Use a flat-blade screwdriver between the window regulator motor and window regulator assembly to hold the window regulator assembly drum in place.

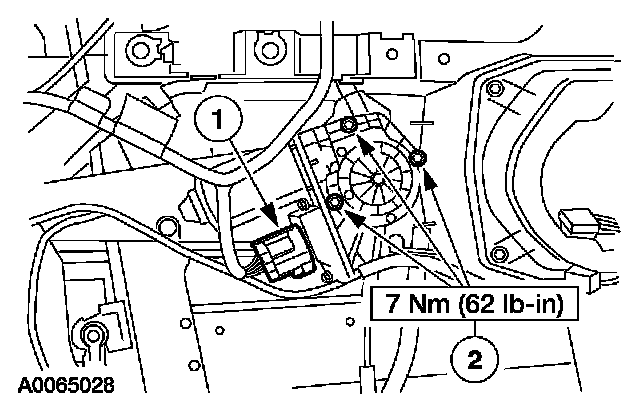

Remove the bolts and the front door window regulator motor.
1 Disconnect the electrical connector.
2 Remove the bolts.

4. To install, reverse the removal procedure.
- Cycle the window glass to make sure the gears engage.
