1-2 Accumulator

1-2 Accumulator

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Drain transmission fluid and remove the transmission fluid pan and filter.

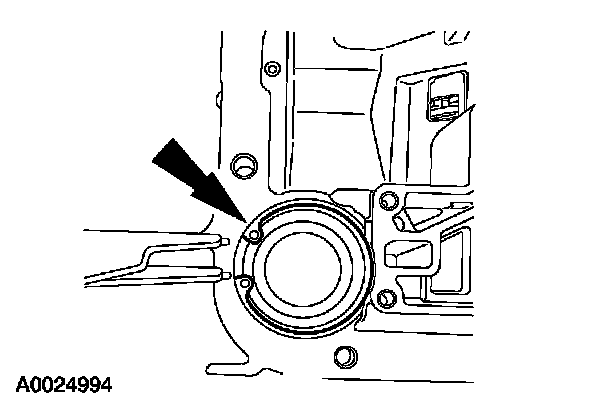

3. Compress the 1-2 accumulator piston and remove the accumulator piston retaining ring.

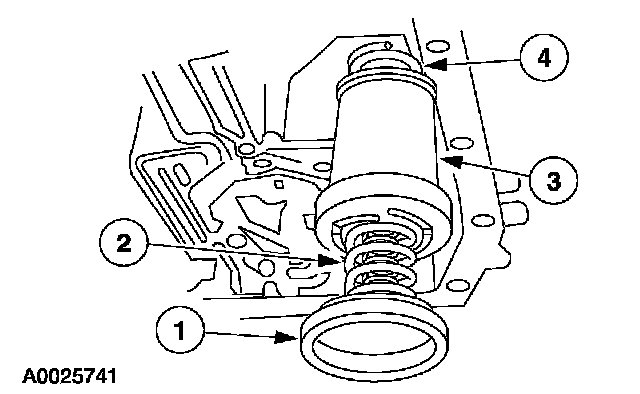

4. Remove the 1-2 shift accumulator assembly.
1 Remove the 1-2 accumulator cover.
2 Remove the 1-2 accumulator inner and outer springs.
3 Remove the 1-2 accumulator piston.
4 Remove the 1-2 accumulator upper spring.

Installation

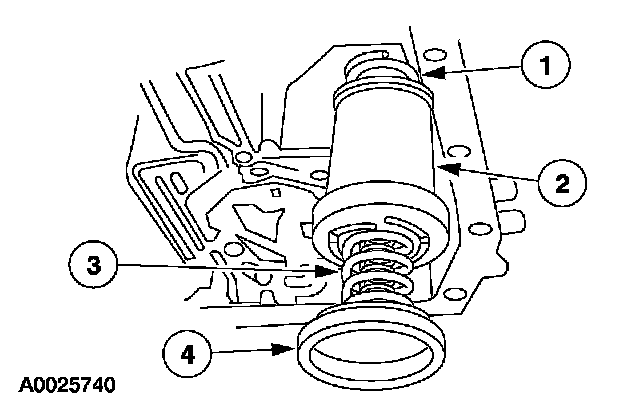

1. Install the 1-2 shift accumulator assembly.
1 Install the 1-2 accumulator upper spring.
2 Install the 1-2 accumulator piston.
3 Install the 1-2 accumulator inner and outer springs.
4 Install the 1-2 accumulator cover.

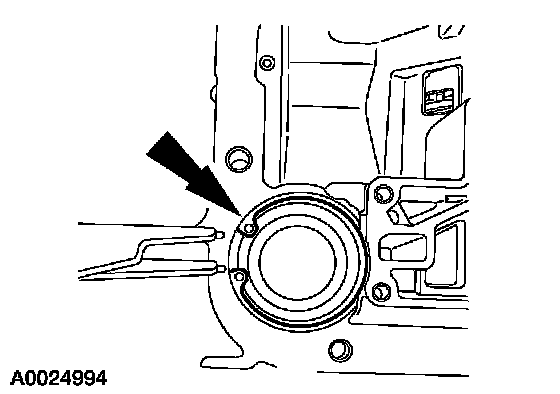

2. Compress the 1-2 accumulator piston and remove the accumulator piston retaining ring.
