Battery Disconnect

BATTERY DISCONNECT

WARNING:
- Batteries normally produce explosive gases which can cause personal injury. Therefore, do not allow flames, sparks, or lighted substances to come near the battery, and always shield your face and protect your eyes. Always provide ventilation. Failure to follow these instructions may result in personal injury.
- To avoid accidental deployment and possible injury, the backup power supply must be depleted before repairing or installing any front or side air bag supplemental restraint system (SRS) components and before repairing, installing, adjusting, or striking components near the front or side air bag sensors, such as the doors, the instrument panel, the console, the door latches, the strikers, the seats, and the hood latches. Failure to follow these procedures may result in personal injury. Refer to the appropriate Component or System to determine the location of the front air bag sensors.

To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped). Failure to follow these instructions may result in personal injury.

- When lifting a battery, excessive pressure on the end walls could cause acid to spew through the vent caps, resulting in personal injury. Lift with a battery carrier or with your hands on opposite corners. Failure to follow these instructions may result in personal injury.
- Keep out of the reach of children. Batteries contain sulfuric acid. Avoid contact with skin, eyes, or clothing. Also, shield your eyes when working near the battery to protect against possible splashing of the acid solution. In case of acid contact with the skin or eyes, flush immediately with water for a minimum of 15 minutes and get prompt medical attention. If acid is swallowed, call a physician immediately. Failure to follow these instructions may result in personal injury.







1. CAUTION: Do not lift the battery ground terminal by grabbing onto the wire.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven to relearn its strategy.

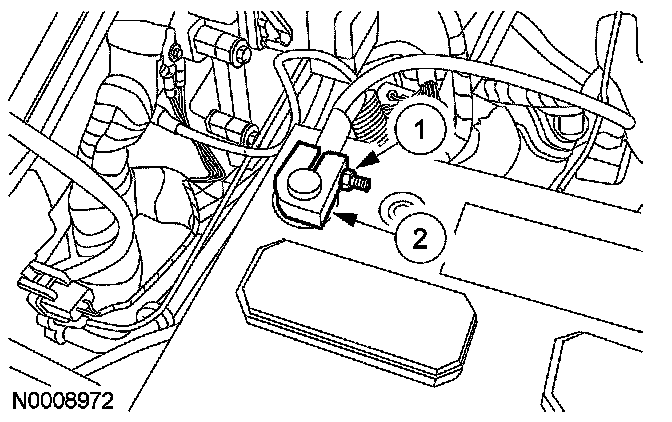

Disconnect the battery ground cable.
1 Loosen the battery ground terminal nut.
2 Slightly rotate and lift the battery ground terminal.







2. CAUTION: Do not lift the positive battery terminal by grabbing onto the wire or lifting underneath the terminal cover.

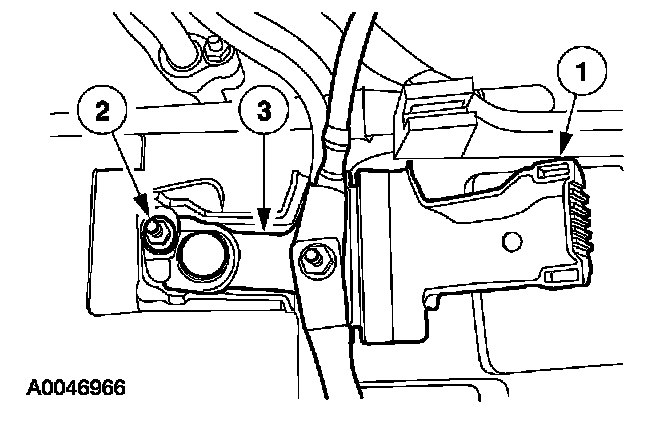

Disconnect the positive battery cable.
1 Open the positive battery terminal cover.
2 Loosen the positive battery terminal nut.
3 Slightly rotate and lift the positive battery terminal and cover assembly.







3. CAUTION: Do not tap, press, or excessively push on the positive battery terminal.

NOTE: Make sure the positive battery terminal slides all of the way down the battery post and is not tilted.

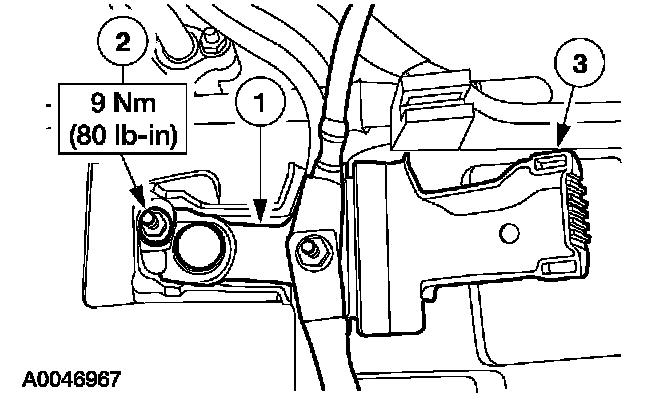

Connect the positive battery cable.
1 Install the battery cable.
2 Tighten the nut.
3 Close the terminal cover.







4. CAUTION: Do not tap, press, or excessively push on the battery ground terminal.

NOTE: Make sure the battery ground terminal slides all of the way down the battery post and is not tilted.

Connect the battery ground cable and tighten
