Battery Cable: Service and Repair
BATTERY CABLESRemoval and Installation
1. Disconnect the battery.
2. Remove the negative battery cable ground bolt at the cowl panel.
3. Remove the nut and disconnect the positive battery cable at the positive battery terminal junction.
4. For Navigator, release the clips and remove the engine cover.

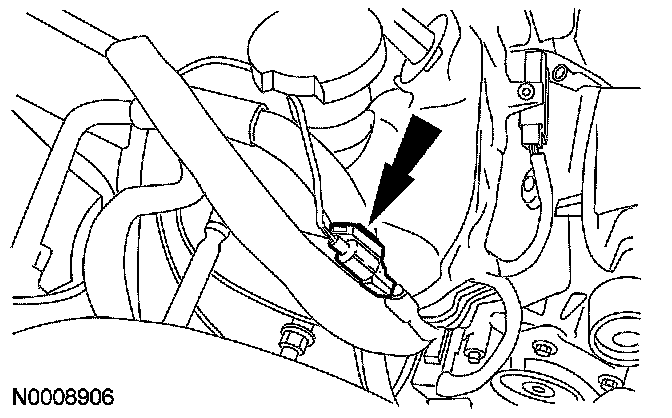

5. Disconnect the electrical connector from the battery cable harness.
6. Raise the vehicle.

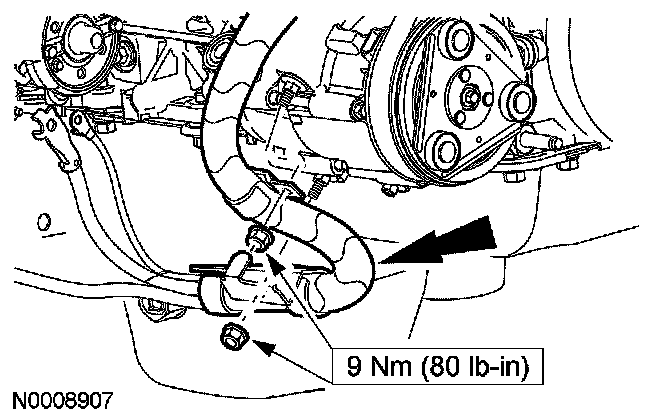

7. Remove the 2 nuts and remove the battery cable harness from the 2 support bracket studs.
8. Remove the starter motor solenoid terminal cover.

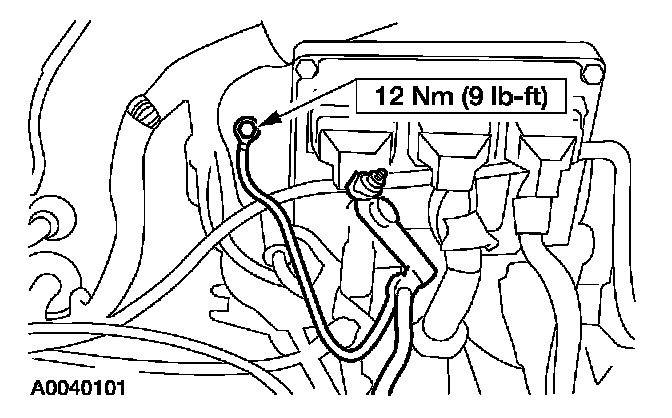

9. Disconnect the starter motor connections.
1 Remove the nut and disconnect the starter motor battery ground cable.
2. Remove the nut and disconnect the starter solenoid cable.
3. Remove the nut and disconnect the starter motor positive cable.
10. Remove the negative battery cable to frame bolt.
11. Remove the battery cable harness.
12. To install, reverse the removal procedure.
