Home >> Lincoln Truck >> 2005 >> Navigator 2WD V8-5.4L SOHC VIN 5 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Leak Detection Valve >> Locations

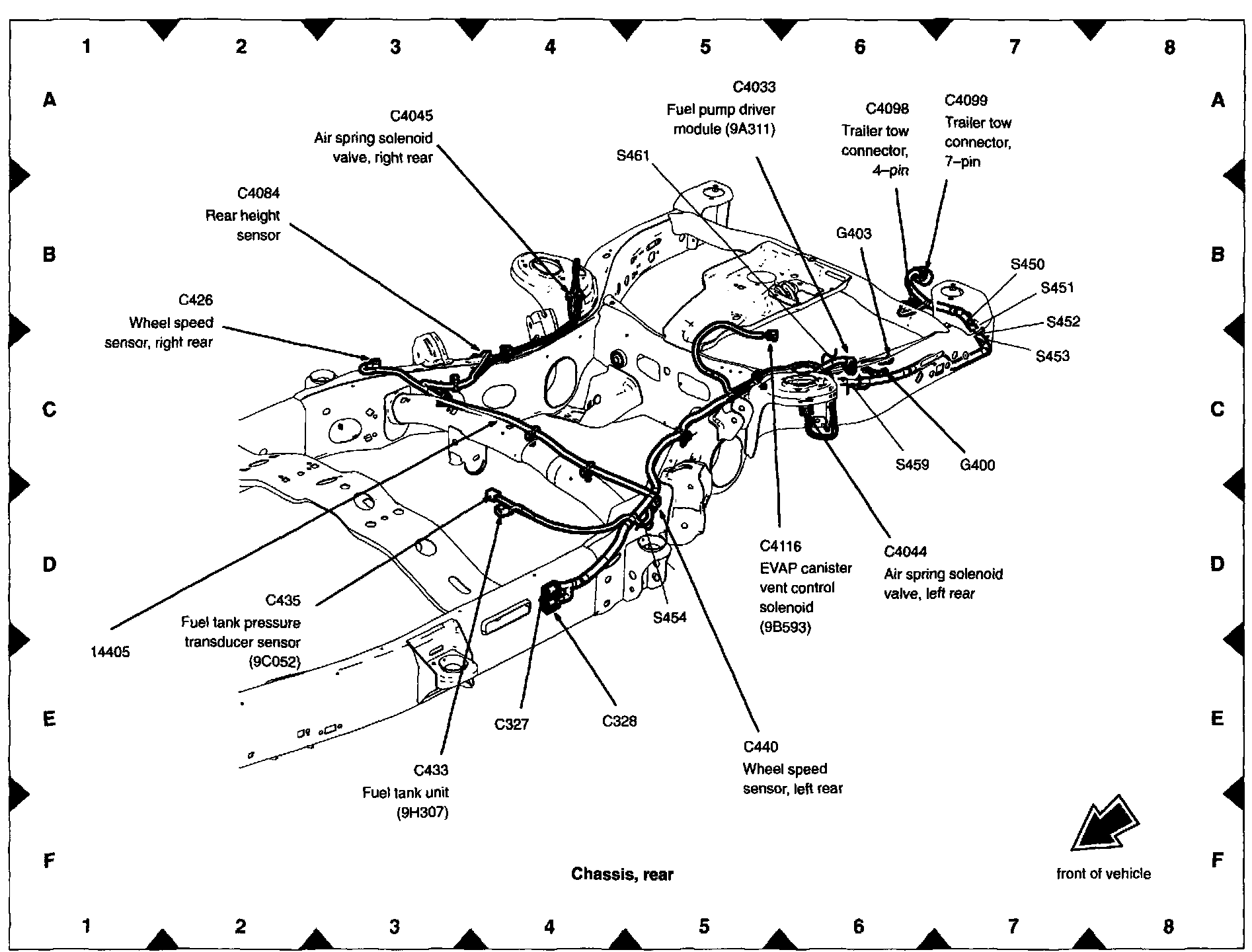

Leak Detection Valve: Locations

View 151-36 (Chassis, Rear):
